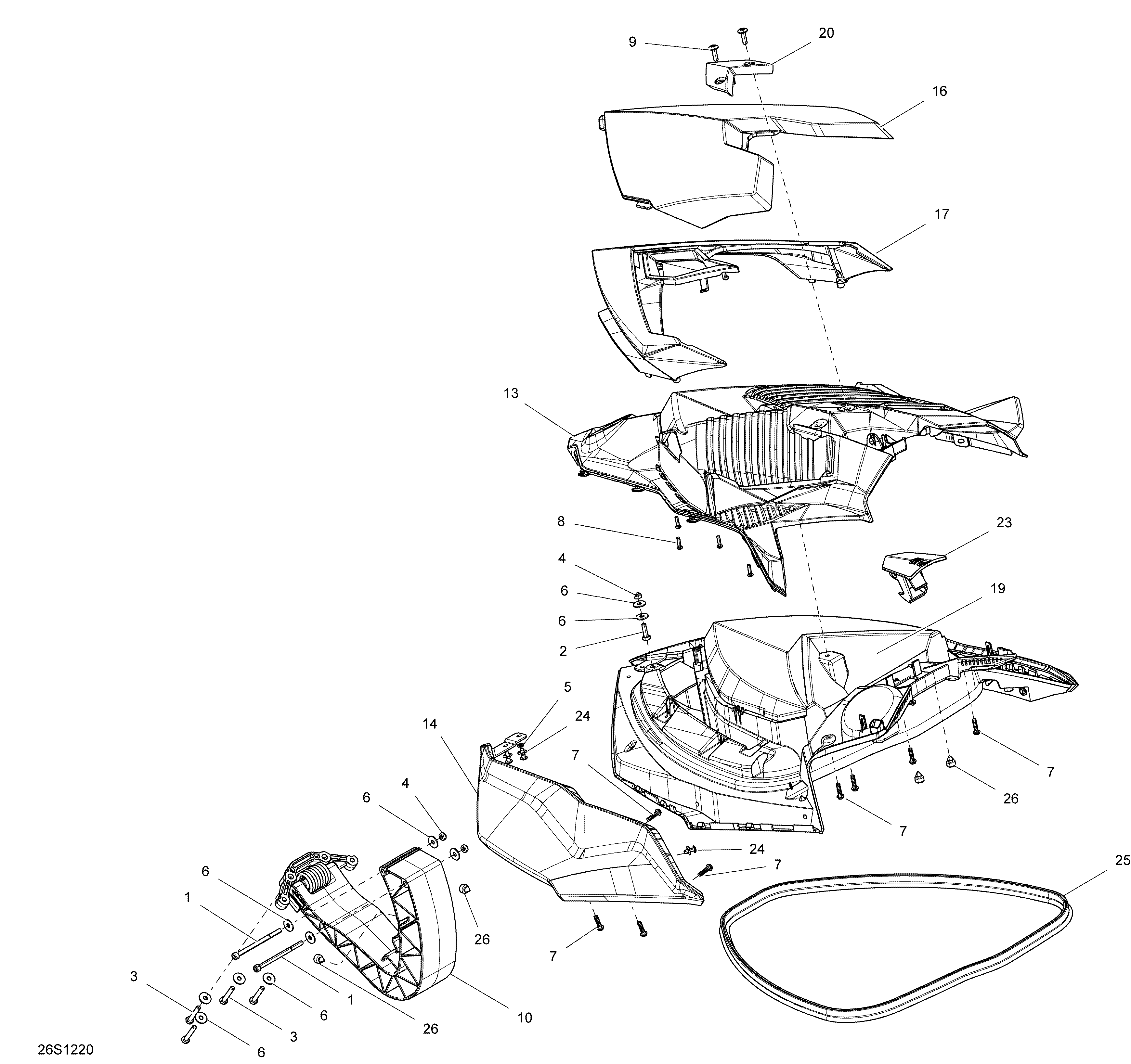

09- Front Cover для BRP RXP-X 260 & RS - 2012

  • №
    Артикул
    Название
  • 1
    205069060 Socket Head Screw M6 X 90
    Socket Head Screw M6 X 90
  • 2
    207162060 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 3
    207363560 Screw Hex. M6 X 35, Scotch Grip
    Screw Hex. M6 X 35, Scotch Grip
  • 4
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 5
    234051500 Flat Washer 5 mm
    Flat Washer 5 mm
  • 6
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 7
    241152060 Hex. Flanged Screw K50 X 20
    Hex. Flanged Screw K50 X 20
  • 8
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 9
    250000613 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 10
    269501944 Hinge Ass'y
    Hinge Ass'y
  • 13
    269501977 Storage Cover
    Storage Cover
  • 14
    269501866 LH Storage Cover Flashing
    LH Storage Cover Flashing
  • 14
    269501867 RH Storage Cover Flashing
    RH Storage Cover Flashing
  • 16
    269501868 Yellow Deflector
    Yellow Deflector
  • 17
    269501898 Front Cosmetic Ass'y
    Front Cosmetic Ass'y
  • 19
    269501897 Lower Storage Cover
    Lower Storage Cover
  • 20
    269501941 Clamp
    Clamp
  • 23
    269700142 Latch Lever
    Latch Lever
  • 24
    293150027 Avdel Rivet
    Avdel Rivet
  • 25
    293250047 Neoprene Seal
    Neoprene Seal
  • 26
    293830005 Rubber Plug
    Rubber Plug
