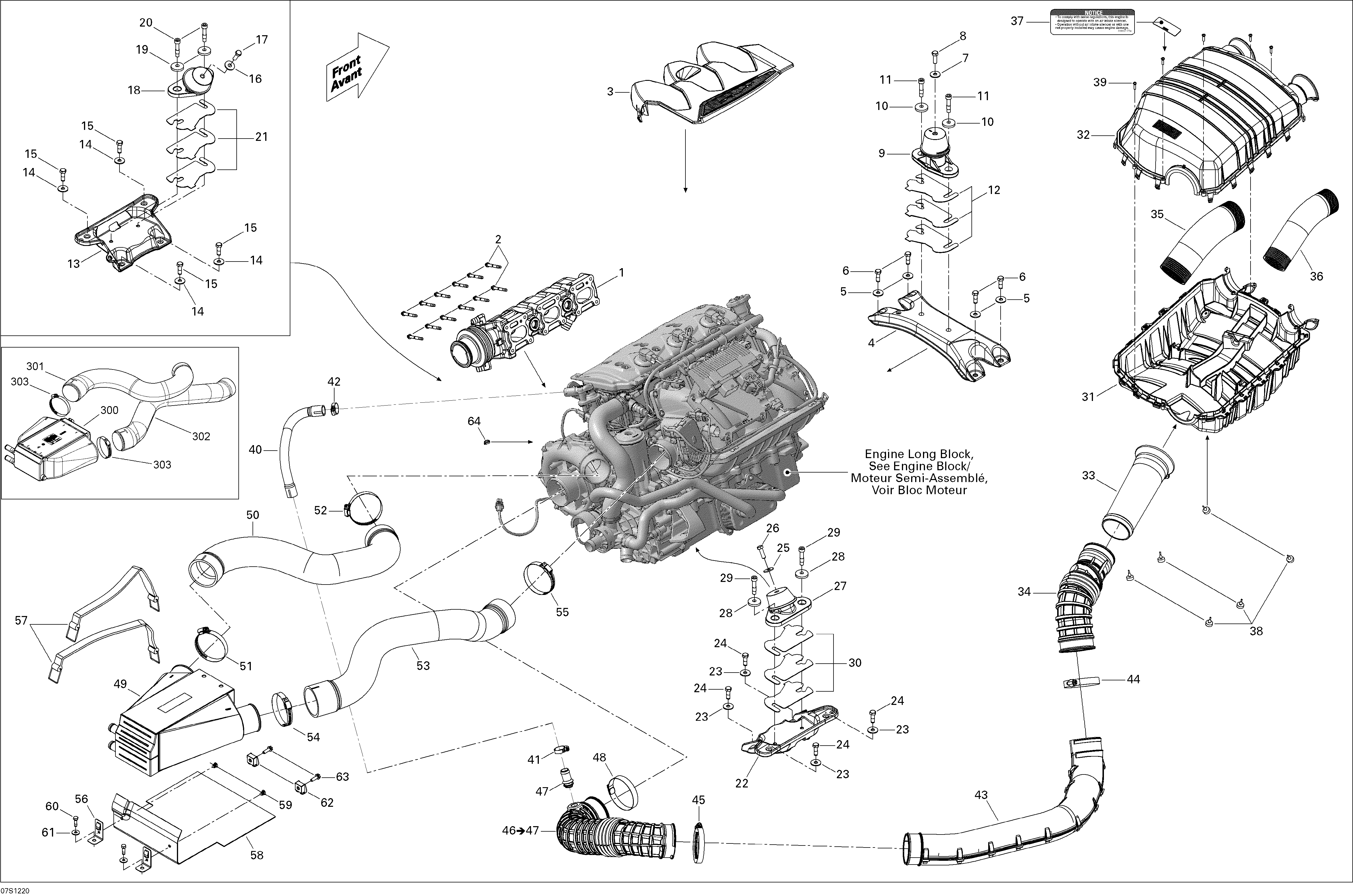

01- Engine And Air Intake Silencer для BRP RXP-X 260 & RS - 2012
-
№АртикулНазвание
-
1274001434 Exhaust ManifoldExhaust Manifold
-
2420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3270000804 Engine CoverEngine Cover
-
4270000842 Front SpacerFront Spacer
-
5234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9270000885 Rubber MountRubber Mount
-
10250200018 Cone WasherCone Washer
-
11250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
12270000762 Shim 1.3 mmShim 1.3 mm
-
13270000843 Rear SpacerRear Spacer
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
17207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
18270000882 Rubber MountRubber Mount
-
19250200018 Cone WasherCone Washer
-
20250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
21270000762 Shim 1.3 mmShim 1.3 mm
-
22270000843 Rear SpacerRear Spacer
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
25234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
27270000882 Rubber MountRubber Mount
-
28250200018 Cone WasherCone Washer
-
29250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
30270000762 Shim 1.3 mmShim 1.3 mm
-
31273000289 Air Silencer LowAir Silencer Low
-
32273000288 Air Silencer UpperAir Silencer Upper
-
33273000301 Intake HoseIntake Hose
-
34273000306 Hose ConnectorHose Connector
-
35273000290 Air Silencer HoseAir Silencer Hose
-
36273000299 Air Silencer TubeAir Silencer Tube
-
37219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
38708000759 Rubber StopperRubber Stopper
-
39250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
40270000864 Formed HoseFormed Hose
-
41293650051 Tridon Gear ClampTridon Gear Clamp
-
42293650051 Tridon Gear ClampTridon Gear Clamp
-
43273000311 Intake Hose, CenterIntake Hose, Center
-
44293650179 Tridon ClampTridon Clamp
-
45293650179 Tridon ClampTridon Clamp
-
46273000317 Rear Hose Intake. Includes 46 to 47Rear Hose Intake. Includes 46 to 47
-
47273000234 BreatherBreather
-
48293650179 Tridon ClampTridon Clamp
-
49276000273 IntercoolerIntercooler
-
50273000282 Inlet Hose CoolerInlet Hose Cooler
-
51293650179 Tridon ClampTridon Clamp
-
52293650179 Tridon ClampTridon Clamp
-
53273000300 Outlet Hose CoolerOutlet Hose Cooler
-
54293650179 Tridon ClampTridon Clamp
-
55293650179 Tridon ClampTridon Clamp
-
56275500743 Strap Clip 90°Strap Clip 90°
-
57293850093 StrapStrap
-
58293830146 Rubber PadRubber Pad
-
59293730016 Dart, BlackDart, Black
-
60243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
61234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
62270000854 Strap AnchorStrap Anchor
-
63243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
64293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
300276000397 Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
-
301273000361 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
302273000362 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
