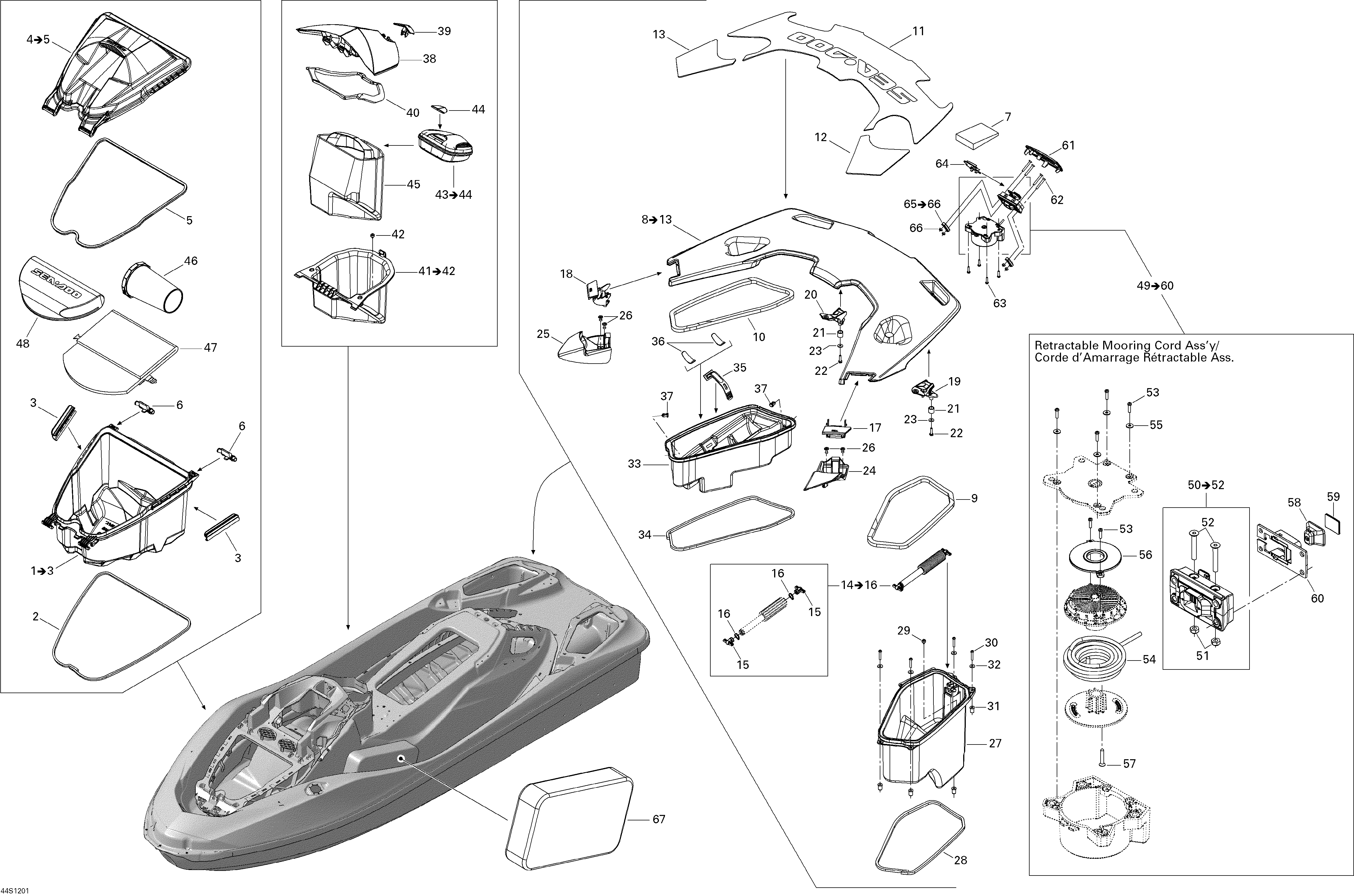

09- Storage Compartments для BRP GTX LTD iS 260 (18CS) - 2012

  • №
    Артикул
    Название
  • 1
    264000087 Storage Bin Ass'y. Includes 1 to 3
    Storage Bin Ass'y. Includes 1 to 3
  • 2
    293250161 Gasket
    Gasket
  • 3
    269501609 Clip. Includes 4 to 5
    Clip. Includes 4 to 5
  • 4
    264000009 Storage Bin Cover Ass'y
    Storage Bin Cover Ass'y
  • 5
    293250210 Neoprene Seal
    Neoprene Seal
  • 6
    264000024 Latch
    Latch
  • 7
    264000025 Platform Foam
    Platform Foam
  • 8
    264000034 Rear Platform Ass'y. Includes 8 to 13
    Rear Platform Ass'y. Includes 8 to 13
  • 9
    293250186 Gasket
    Gasket
  • 10
    293250186 Gasket
    Gasket
  • 11
    291002585 Rear Platform Carpet
    Rear Platform Carpet
  • 12
    264000040 LH Platform Carpet
    LH Platform Carpet
  • 13
    264000041 RH Platform Carpet
    RH Platform Carpet
  • 14
    264000026 Shock Ass'y. Includes 14 to 16
    Shock Ass'y. Includes 14 to 16
  • 15
    269501717 Shock End Piece
    Shock End Piece
  • 16
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 17
    264000020 LH Latch
    LH Latch
  • 18
    264000021 RH Latch
    RH Latch
  • 19
    264000003 LH Pivot Support
    LH Pivot Support
  • 20
    264000032 RH Pivot Support
    RH Pivot Support
  • 21
    264000042 Spacer
    Spacer
  • 22
    243162560 Hex. Flanged Screw M6.81 X 25, Plastite
    Hex. Flanged Screw M6.81 X 25, Plastite
  • 23
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 24
    264000055 LH Latch Base, Black
    LH Latch Base, Black
  • 25
    264000056 RH Latch Base, Black
    RH Latch Base, Black
  • 26
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 27
    264000001 LH Rear Tray
    LH Rear Tray
  • 28
    293250218 Gasket
    Gasket
  • 29
    293830005 Rubber Plug
    Rubber Plug
  • 30
    205463560 Socket Head Screw M6 X 35
    Socket Head Screw M6 X 35
  • 31
    250100150 Expansion Nut M6 X 1
    Expansion Nut M6 X 1
  • 32
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 33
    264000002 RH Rear Tray
    RH Rear Tray
  • 34
    293250218 Gasket
    Gasket
  • 35
    269500408 Strap
    Strap
  • 36
    264000043 Tray Pad
    Tray Pad
  • 37
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 38
    264000067 Glove Box Door, White
    Glove Box Door, White
  • 39
    264000019 Latch, Black
    Latch, Black
  • 40
    293250204 Gasket
    Gasket
  • 41
    264000031 Glove Box Ass'y. Includes 41 to 42
    Glove Box Ass'y. Includes 41 to 42
  • 42
    293830005 Rubber Plug
    Rubber Plug
  • 43
    291002814 Removable Case Ass'y. Includes 43 to 44
    Removable Case Ass'y. Includes 43 to 44
  • 44
    291002793 Sea-Doo Decal
    Sea-Doo Decal
  • 45
    291002761 Protection Liner
    Protection Liner
  • 46
    295100330 Safety Kit
    Safety Kit
  • 47
    269501744 Drybag, 10 L
    Drybag, 10 L
  • 48
    269501318 Anchor Sandbag
    Anchor Sandbag
  • 49
    291003022 Retractable Rope Ass'y. Includes 49 to 60
    Retractable Rope Ass'y. Includes 49 to 60
  • 50
    291003023 Jam Cleat System Ass'y. Includes 50 to 52
    Jam Cleat System Ass'y. Includes 50 to 52
  • 51
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 52
    205364060 Socket Head Screw M6 X 40
    Socket Head Screw M6 X 40
  • 53
    241731260 Oval Philipp Screw KA30 x 12
    Oval Philipp Screw KA30 x 12
  • 54
    291002733 Rope 3/16''
    Rope 3/16''
  • 55
    234032600 Flat Washer M3, Stainless
    Flat Washer M3, Stainless
  • 56
    291002762 Inside Cover
    Inside Cover
  • 57
    204100049 Phillips Tapping Screw #8 X 1''
    Phillips Tapping Screw #8 X 1''
  • 58
    291002726 Button
    Button
  • 59
    291002754 Button Cap
    Button Cap
  • 60
    291002729 Rope Guide
    Rope Guide
  • 61
    291002725 Rear Rewind Frame
    Rear Rewind Frame
  • 62
    205364560 Socket Screw Head M6 X 45
    Socket Screw Head M6 X 45
  • 63
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 64
    291002727 Under Cam
    Under Cam
  • 65
    291002755 Double Cage Nut Ass'y. Includes 65 to 66
    Double Cage Nut Ass'y. Includes 65 to 66
  • 66
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 67
    280000460 Cover, GTX LTD IS
    Cover, GTX LTD IS
