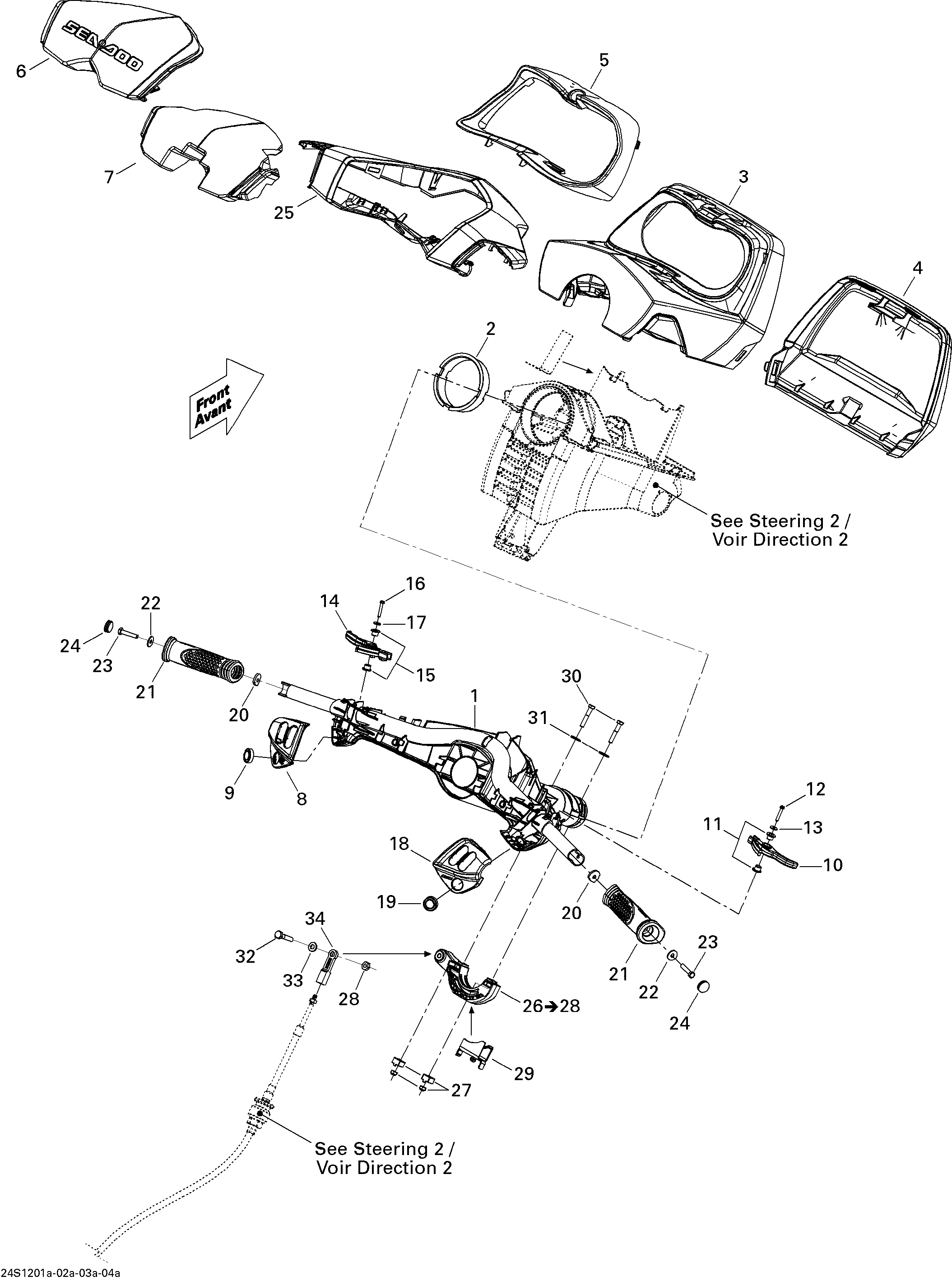

07- Steering 1 для BRP GTX LTD iS 260 (18CS) - 2012
-
№АртикулНазвание
-
1277001596 SteeringSteering
-
2277001653 Wear RingWear Ring
-
3277001612 Gauge SupportGauge Support
-
4277001613 Gauge Support CoverGauge Support Cover
-
5277001630 Gauge Trim, BlackGauge Trim, Black
-
6277001762 Steering Pad, Casino GoldSteering Pad, Casino Gold
-
7277001621 Top FoamTop Foam
-
8277001626 LH Housing CoverLH Housing Cover
-
9277001802 Switch Knob, RedSwitch Knob, Red
-
10277001620 Throttle HandleThrottle Handle
-
11293900091 BushingBushing
-
12241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
13234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14277001629 Reverse HandleReverse Handle
-
15293900091 BushingBushing
-
16241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
17234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
18277001625 RH Housing CoverRH Housing Cover
-
19277001803 Knob Switch, GreyKnob Switch, Grey
-
20277000554 Handle Grip InsertHandle Grip Insert
-
21277001624 Handle GripHandle Grip
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
24277000203 Cap, BlackCap, Black
-
25277001597 Steering CoverSteering Cover
-
26277001779 Support Ass'y. Includes 26 to 28Support Ass'y. Includes 26 to 28
-
27269501166 Nut Housing Ass'yNut Housing Ass'y
-
28232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
29277001654 SpacerSpacer
-
30207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
31234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
33234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
34277001180 Ball JointBall Joint
