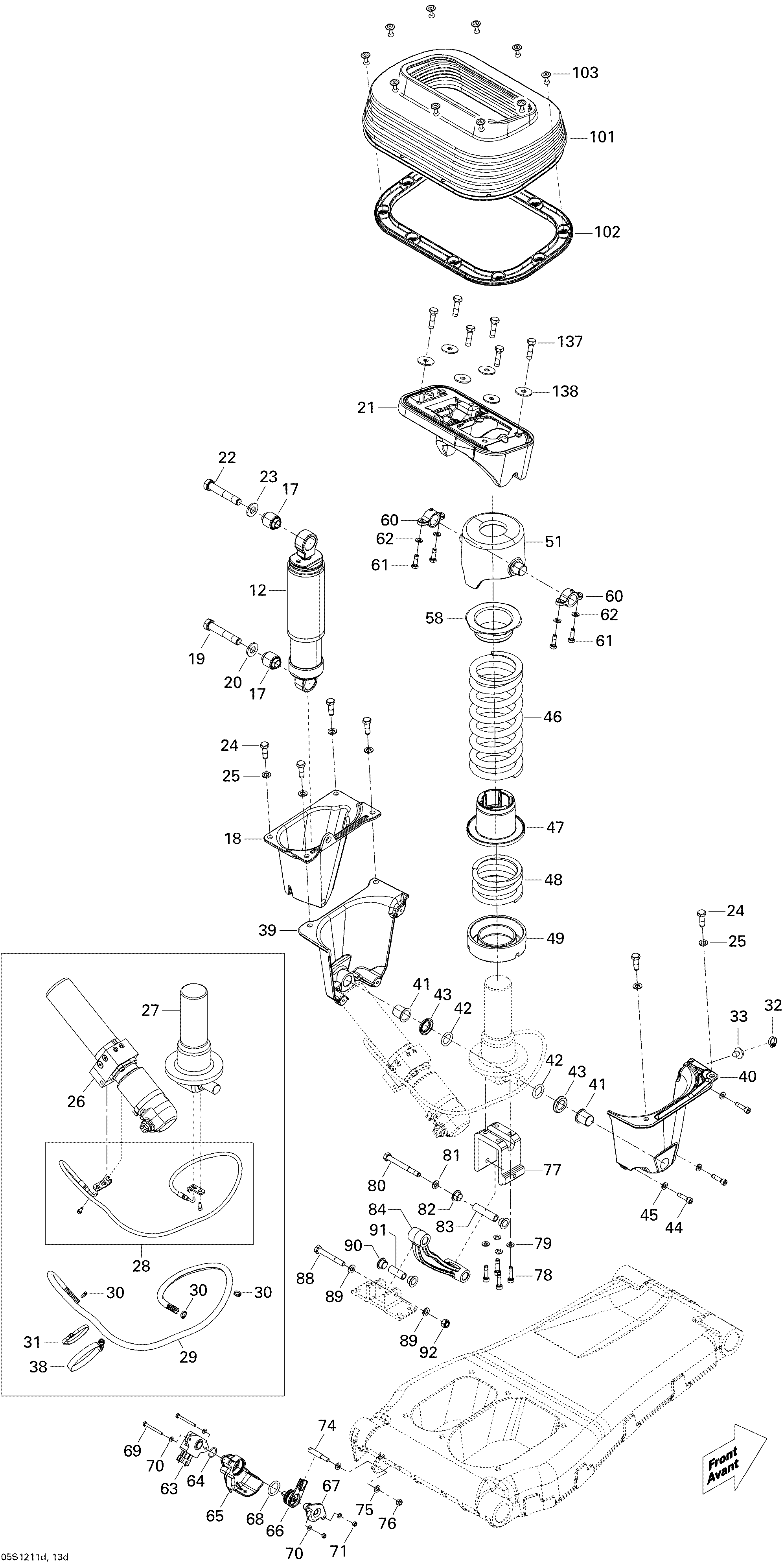

09- Seat Suspension 4 для BRP GTX LTD iS 260 (18CA, 18CB) - 2012

  • №
    Артикул
    Название
  • 12
    279000126 Shock Absorber. GTX IS
    Shock Absorber. GTX IS
  • 17
    279000051 Bushing. GTX IS
    Bushing. GTX IS
  • 18
    279000055 Shock Lower Holder. GTX IS
    Shock Lower Holder. GTX IS
  • 19
    207227060 Hex. Screw M12 X 70, Scotch Grip. GTX IS
    Hex. Screw M12 X 70, Scotch Grip. GTX IS
  • 20
    250200053 Flat Washer M12. GTX IS
    Flat Washer M12. GTX IS
  • 21
    279000057 Shock Upper Holder. GTX IS
    Shock Upper Holder. GTX IS
  • 22
    207227060 Hex. Screw M12 X 70, Scotch Grip. GTX IS
    Hex. Screw M12 X 70, Scotch Grip. GTX IS
  • 23
    250200053 Flat Washer M12. GTX IS
    Flat Washer M12. GTX IS
  • 24
    207383060 Hex. Screw M8 X 30, Scotch Grip. GTX IS
    Hex. Screw M8 X 30, Scotch Grip. GTX IS
  • 25
    234080600 Flat Washer 8 mm. GTX IS
    Flat Washer 8 mm. GTX IS
  • 26
    279000207 Pump. GTX IS
    Pump. GTX IS
  • 27
    279000117 Actuator. GTX IS
    Actuator. GTX IS
  • 28
    279000162 Connector Hose. GTX IS
    Connector Hose. GTX IS
  • 29
    515175442 Tubing 6 mm. GTX IS
    Tubing 6 mm. GTX IS
  • 30
    293750001 Tie-Rap 94 mm. GTX IS
    Tie-Rap 94 mm. GTX IS
  • 31
    293750008 Tie-Rap 350 mm. GTX IS
    Tie-Rap 350 mm. GTX IS
  • 32
    414115200 Tie-Rap 180 mm. GTX IS
    Tie-Rap 180 mm. GTX IS
  • 33
    293730040 Mount Dart. GTX IS
    Mount Dart. GTX IS
  • 38
    293650079 Norma Clamp. GTX IS
    Norma Clamp. GTX IS
  • 39
    279000070 LH Spring Holder. GTX IS
    LH Spring Holder. GTX IS
  • 40
    279000074 RH Spring Holder. GTX IS
    RH Spring Holder. GTX IS
  • 41
    279000103 Bushing. GTX IS
    Bushing. GTX IS
  • 42
    279000104 O-Ring. GTX IS
    O-Ring. GTX IS
  • 43
    279000105 Bushing. GTX IS
    Bushing. GTX IS
  • 44
    205562560 Socket Head Screw M6 X 25, Scotch Grip. GTX IS
    Socket Head Screw M6 X 25, Scotch Grip. GTX IS
  • 45
    234061600 Flat Washer M6, Stainless. GTX IS
    Flat Washer M6, Stainless. GTX IS
  • 46
    279000128 Painted Spring. GTX IS
    Painted Spring. GTX IS
  • 47
    279000130 Spring Spacer. GTX IS
    Spring Spacer. GTX IS
  • 48
    279000131 Painted Spring. GTX IS
    Painted Spring. GTX IS
  • 49
    279000121 Lower Spring Protector. GTX IS
    Lower Spring Protector. GTX IS
  • 51
    279000061 Upper Spring Holder. GTX IS
    Upper Spring Holder. GTX IS
  • 58
    279000134 Upper Spring Protector. GTX IS
    Upper Spring Protector. GTX IS
  • 60
    279000106 Clamp. GTX IS
    Clamp. GTX IS
  • 61
    207362060 Hex. Screw M6 X 20, Scotch Grip. GTX IS
    Hex. Screw M6 X 20, Scotch Grip. GTX IS
  • 62
    234041600 Flat Washer 4 mm, Stainless. GTX IS
    Flat Washer 4 mm, Stainless. GTX IS
  • 63
    270000251 Position Sensor. GTX IS
    Position Sensor. GTX IS
  • 64
    270000544 O-Ring. GTX IS
    O-Ring. GTX IS
  • 65
    279000098 Position Sensor Bracket. GTX IS
    Position Sensor Bracket. GTX IS
  • 66
    279000099 Sensor Lever. GTX IS
    Sensor Lever. GTX IS
  • 67
    279000107 Position Sensor Cover. GTX IS
    Position Sensor Cover. GTX IS
  • 68
    279000108 O-Ring. GTX IS
    O-Ring. GTX IS
  • 69
    207144060 Hex. Screw M4 X 40. GTX IS
    Hex. Screw M4 X 40. GTX IS
  • 70
    234061600 Flat Washer M6, Stainless. GTX IS
    Flat Washer M6, Stainless. GTX IS
  • 71
    232541200 Elastic Stop Nut M4. GTX IS
    Elastic Stop Nut M4. GTX IS
  • 74
    279000139 Threaded Rod. GTX IS
    Threaded Rod. GTX IS
  • 75
    234061600 Flat Washer M6, Stainless. GTX IS
    Flat Washer M6, Stainless. GTX IS
  • 76
    232561200 Elastic Stop Nut M6, Brass. GTX IS
    Elastic Stop Nut M6, Brass. GTX IS
  • 77
    279000154 Spring Alignment Adaptor. GTX IS
    Spring Alignment Adaptor. GTX IS
  • 78
    205562560 Socket Head Screw M6 X 25, Scotch Grip. GTX IS
    Socket Head Screw M6 X 25, Scotch Grip. GTX IS
  • 79
    234061600 Flat Washer M6, Stainless. GTX IS
    Flat Washer M6, Stainless. GTX IS
  • 80
    207287560 Hex. Screw M8 x 75 (Scotch Grip). GTX IS
    Hex. Screw M8 x 75 (Scotch Grip). GTX IS
  • 81
    234080600 Flat Washer 8 mm. GTX IS
    Flat Washer 8 mm. GTX IS
  • 82
    279000137 Bushing. GTX IS
    Bushing. GTX IS
  • 83
    279000138 Spacer. GTX IS
    Spacer. GTX IS
  • 84
    279000157 Spring Alignment Arm. GTX IS
    Spring Alignment Arm. GTX IS
  • 88
    207086060 Hex. Screw M8 x 60. GTX IS
    Hex. Screw M8 x 60. GTX IS
  • 89
    234080600 Flat Washer 8 mm. GTX IS
    Flat Washer 8 mm. GTX IS
  • 90
    279000137 Bushing. GTX IS
    Bushing. GTX IS
  • 91
    279000153 Spacer. GTX IS
    Spacer. GTX IS
  • 92
    232581200 Hex. Elastic Nut M8, Brass. GTX IS
    Hex. Elastic Nut M8, Brass. GTX IS
  • 101
    279000008 Central Bellows. GTX IS
    Central Bellows. GTX IS
  • 102
    279000010 Retaining Plate. GTX IS
    Retaining Plate. GTX IS
  • 103
    293150123 Pop Rivet 3/16''. GTX IS
    Pop Rivet 3/16''. GTX IS
  • 137
    207383060 Hex. Screw M8 X 30, Scotch Grip. GTX IS
    Hex. Screw M8 X 30, Scotch Grip. GTX IS
  • 138
    250200011 Flat Washer 8 mm, Stainless. GTX IS
    Flat Washer 8 mm, Stainless. GTX IS
