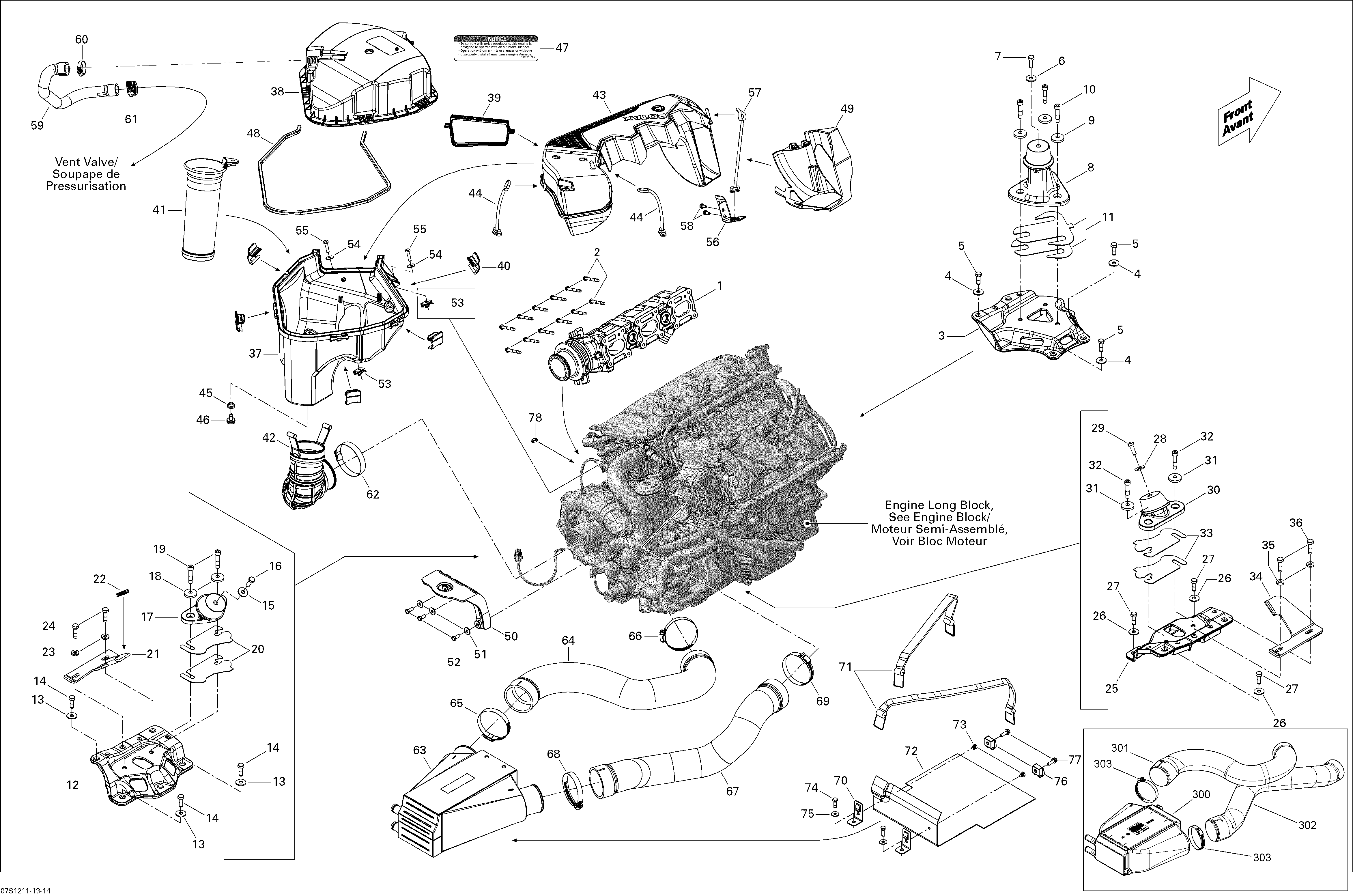

01- Engine And Air Intake Silencer для BRP GTX LTD iS 260 (18CA, 18CB) - 2012

  • №
    Артикул
    Название
  • 1
    274001434 Exhaust Manifold
    Exhaust Manifold
  • 2
    420641198 Flanged Torx Screw M6 X 45
    Flanged Torx Screw M6 X 45
  • 3
    270000767 Spacer
    Spacer
  • 4
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 5
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 6
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 7
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 8
    270000886 Rubber Mount
    Rubber Mount
  • 9
    250200018 Cone Washer
    Cone Washer
  • 10
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 11
    270000770 Shim 1.3 mm
    Shim 1.3 mm
  • 12
    270000763 Spacer
    Spacer
  • 13
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 14
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 15
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 16
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 17
    270000882 Rubber Mount
    Rubber Mount
  • 18
    250200018 Cone Washer
    Cone Washer
  • 19
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 20
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 21
    270000796 LH Stopper
    LH Stopper
  • 22
    204610371 Trim, Black
    Trim, Black
  • 23
    293050001 Flat Washer
    Flat Washer
  • 24
    250000526 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 25
    270000766 Spacer
    Spacer
  • 26
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 27
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 28
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 29
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 30
    270000882 Rubber Mount
    Rubber Mount
  • 31
    250200018 Cone Washer
    Cone Washer
  • 32
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 33
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 34
    270000799 RH Stopper
    RH Stopper
  • 35
    293050001 Flat Washer
    Flat Washer
  • 36
    250000526 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 37
    273000250 Air Silencer Low
    Air Silencer Low
  • 38
    273000249 Air Silencer Upper
    Air Silencer Upper
  • 39
    293250190 Seal
    Seal
  • 40
    269501718 Clip
    Clip
  • 41
    273000252 Intake Hose
    Intake Hose
  • 42
    273000251 Connector Hose
    Connector Hose
  • 43
    273000253 Intake Tube
    Intake Tube
  • 44
    269501299 Strap
    Strap
  • 45
    293720064 Grommet
    Grommet
  • 46
    275500454 Check Valve
    Check Valve
  • 47
    219903177 Notice Decal, Air Silencer
    Notice Decal, Air Silencer
  • 48
    293200123 Neoprene Seal
    Neoprene Seal
  • 49
    273000271 Deflector
    Deflector
  • 50
    270000735 Air Box Support
    Air Box Support
  • 51
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 52
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 53
    420942108 Panel Nut M6 X 1
    Panel Nut M6 X 1
  • 54
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 55
    207362560 Hex. Screw M6 X 25, Scotch Grip
    Hex. Screw M6 X 25, Scotch Grip
  • 56
    273000260 Air Box Bracket
    Air Box Bracket
  • 57
    273000261 Strap
    Strap
  • 58
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 59
    270000807 Formed Hose
    Formed Hose
  • 60
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 61
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 62
    293650179 Tridon Clamp
    Tridon Clamp
  • 63
    276000273 Intercooler
    Intercooler
  • 64
    273000282 Inlet Hose Cooler
    Inlet Hose Cooler
  • 65
    293650179 Tridon Clamp
    Tridon Clamp
  • 66
    293650179 Tridon Clamp
    Tridon Clamp
  • 67
    273000300 Outlet Hose Cooler
    Outlet Hose Cooler
  • 68
    293650179 Tridon Clamp
    Tridon Clamp
  • 69
    293650179 Tridon Clamp
    Tridon Clamp
  • 70
    275500743 Strap Clip 90°
    Strap Clip 90°
  • 71
    293850093 Strap
    Strap
  • 72
    293830146 Rubber Pad
    Rubber Pad
  • 73
    293730016 Dart, Black
    Dart, Black
  • 74
    243162060 Hex. Flanged Screw M6.81 x 20
    Hex. Flanged Screw M6.81 x 20
  • 75
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 78
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 300
    276000397 Intercooler. Incl Zinc Anode 271001942
    Intercooler. Incl Zinc Anode 271001942
  • 301
    273000361 Formed Hose
    Formed Hose
  • 302
    273000362 Formed Hose
    Formed Hose
  • 303
    293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7
    Tridon Gear Clamp. Ref Service Bulletin 2015-7
