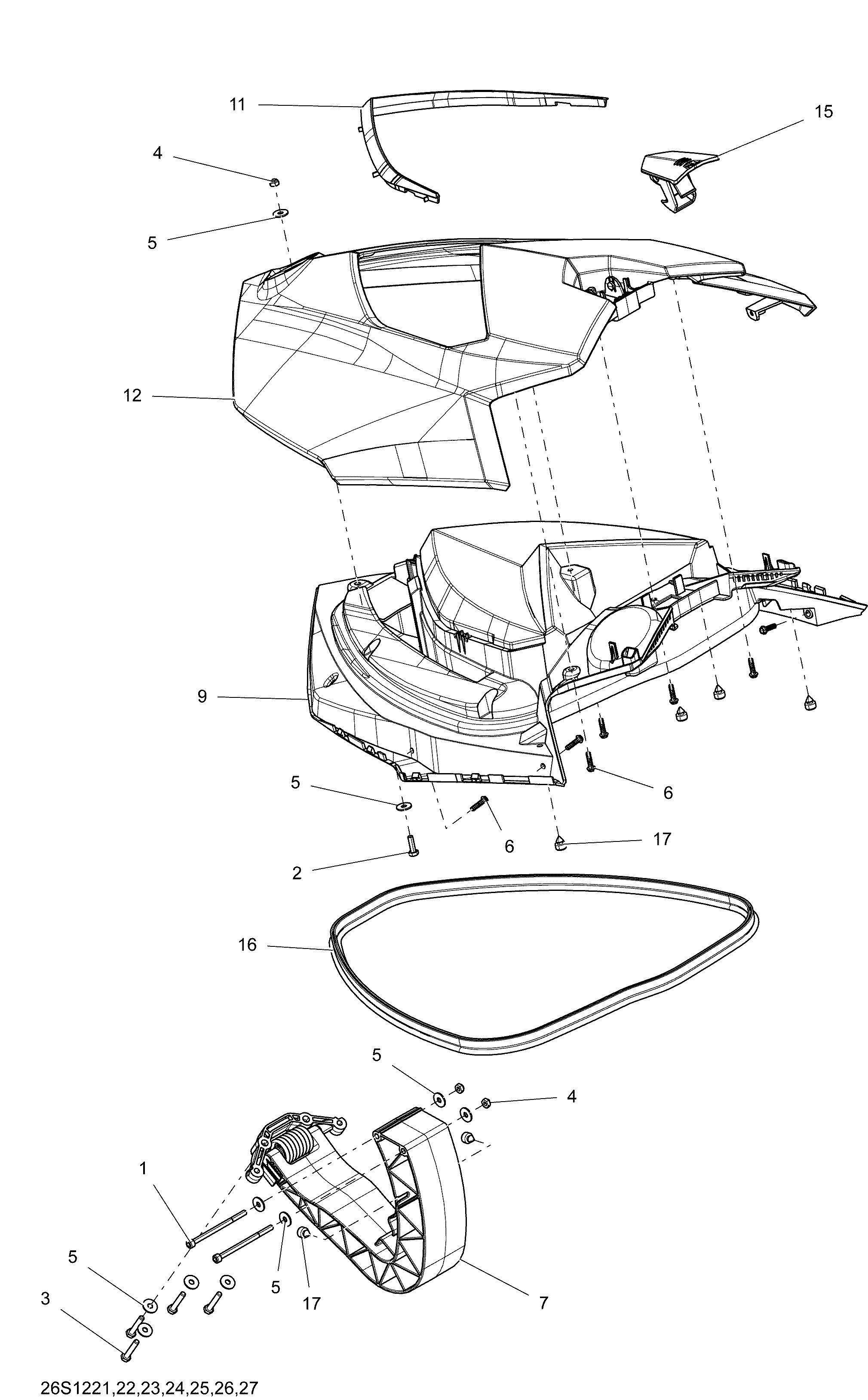

09- Front Cover для BRP GTR 215 - 2012
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20. GTRHex. Forming Screw M6 X 20. GTR
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, Brass. GTRElastic Stop Nut M6, Brass. GTR
-
5234062600 Flat Washer M6, Stainless. GTRFlat Washer M6, Stainless. GTR
-
6241152060 Hex. Flanged Screw K50 X 20. GTRHex. Flanged Screw K50 X 20. GTR
-
7269501944 Hinge Ass'yHinge Ass'y
-
9269501897 Lower Storage Cover. GTRLower Storage Cover. GTR
-
11269501860 Front Moulding, Chrome. GTRFront Moulding, Chrome. GTR
-
12269501937 White Storage Cover. GTRWhite Storage Cover. GTR
-
15269700142 Latch Lever. GTRLatch Lever. GTR
-
16293250047 Neoprene Seal. GTRNeoprene Seal. GTR
-
17293830005 Rubber Plug. GTRRubber Plug. GTR
