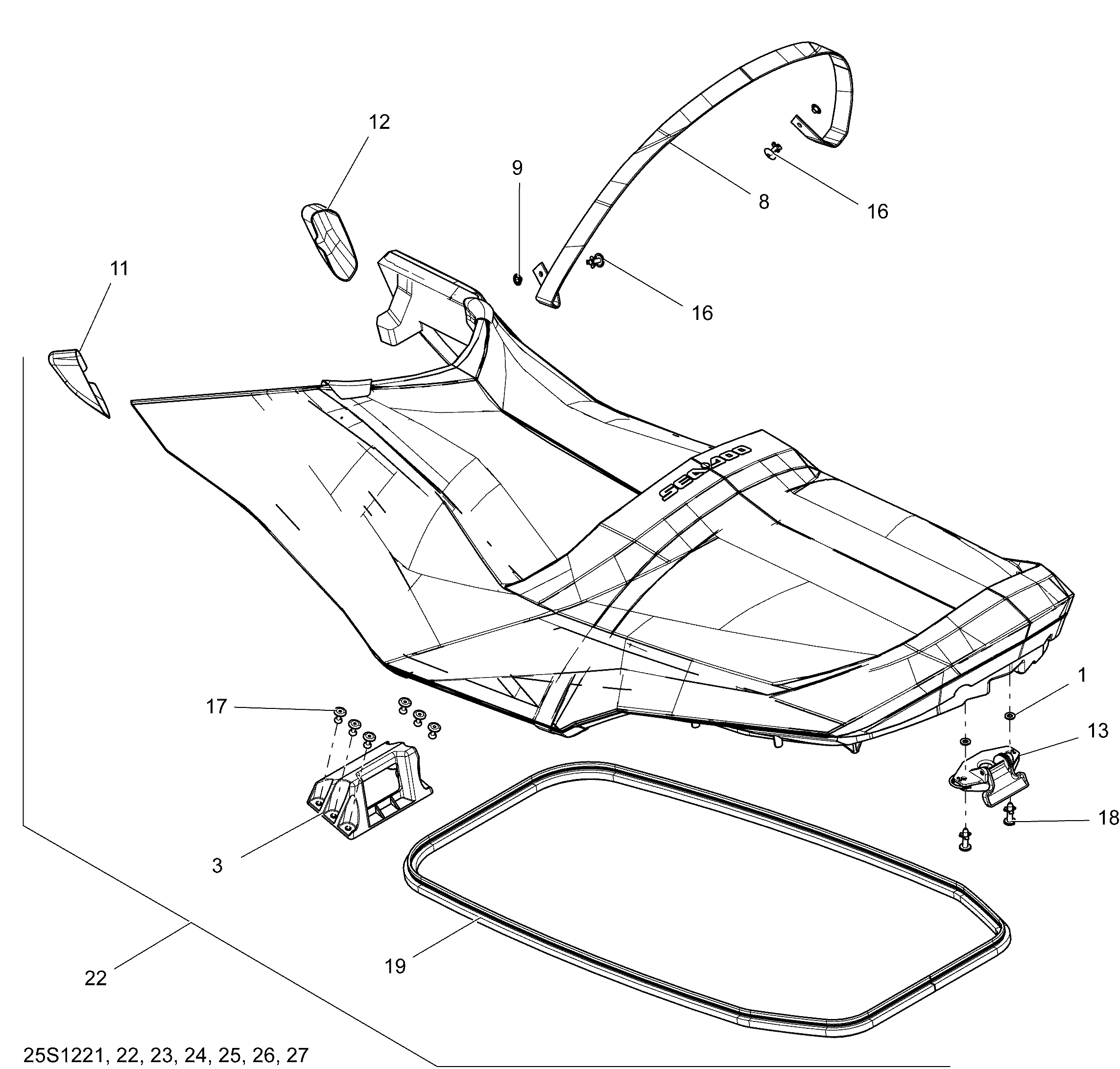

09- Seat для BRP GTR 215 - 2012
-
№АртикулНазвание
-
1234061600 Flat Washer M6, Stainless. GTR OrangeFlat Washer M6, Stainless. GTR Orange
-
3269002151 Seat ReceptacleSeat Receptacle
-
8269002093 Seat Strap. GTR OrangeSeat Strap. GTR Orange
-
9293720067 Grommet. GTR OrangeGrommet. GTR Orange
-
13269700109 Latch Ass'y. GTR OrangeLatch Ass'y. GTR Orange
-
16293150067 Rivet. GTR OrangeRivet. GTR Orange
-
17293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150151 Rivet 1/4''. GTR OrangeRivet 1/4''. GTR Orange
-
22269002464 Seat Ass'y. GTR OrangeSeat Ass'y. GTR Orange
