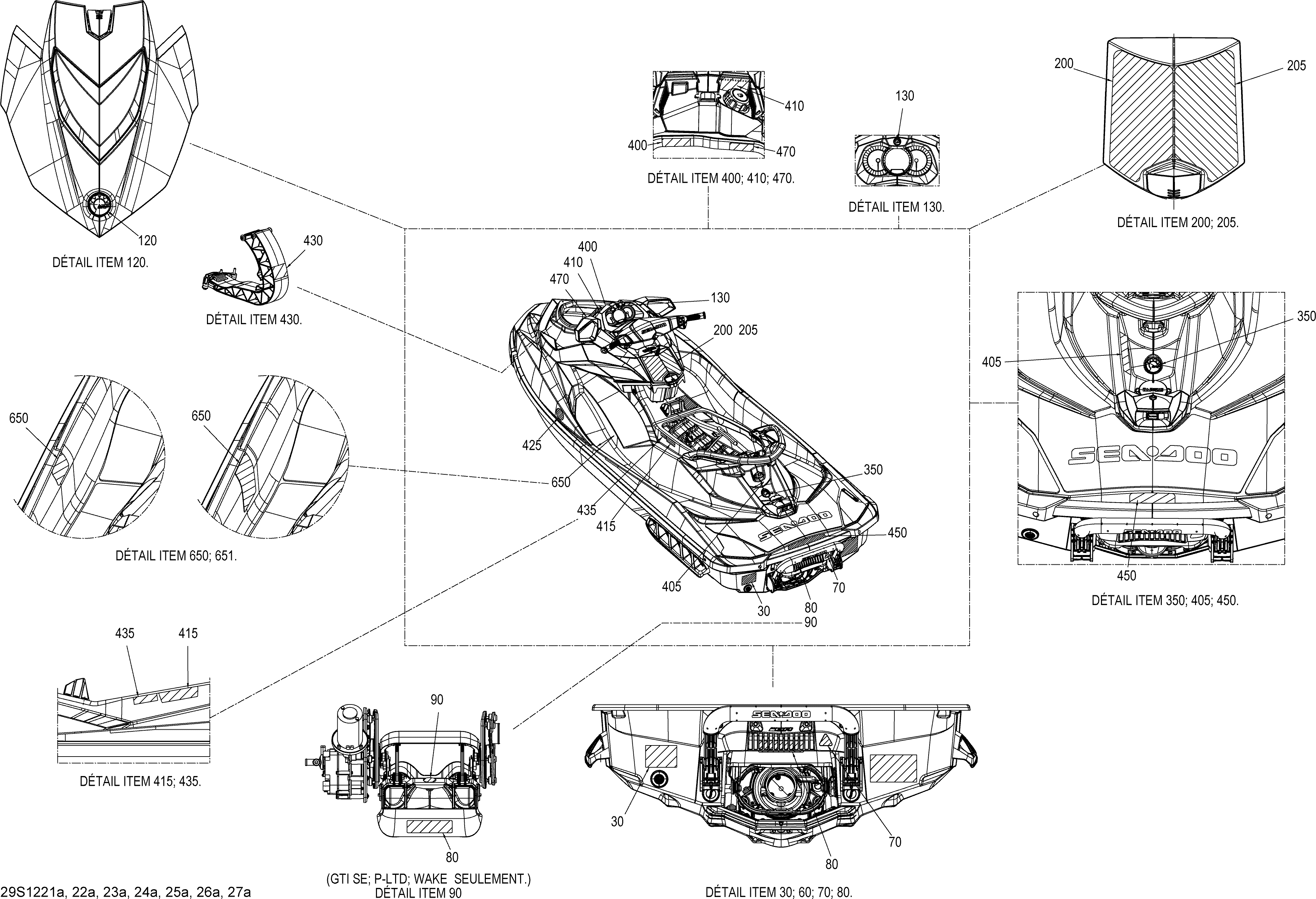

09- Decals Warning для BRP GTR 215 - 2012
-
№АртикулНазвание
-
30219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
70219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
80219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
90219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
120219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
130219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
200219903447 LH Warning Decal, SecurityLH Warning Decal, Security
-
205219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
350219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
-
405219903510 Decal, ExemptionDecal, Exemption
-
410219903501 Warning Decal, FuelWarning Decal, Fuel
-
415219903135 Caution Decal, Engine Oil LevelCaution Decal, Engine Oil Level
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219903502 Warning Decal, StorageWarning Decal, Storage
-
435219903132 Caution Decal, SecurityCaution Decal, Security
-
470219903127 Notice Decal, Gasoline-Octane. GTRNotice Decal, Gasoline-Octane. GTR
-
650219904016 Comformity Decal, CE. CEComformity Decal, CE. CE
-
650219903554 Comformity Decal, Canadian. CUComformity Decal, Canadian. CU
