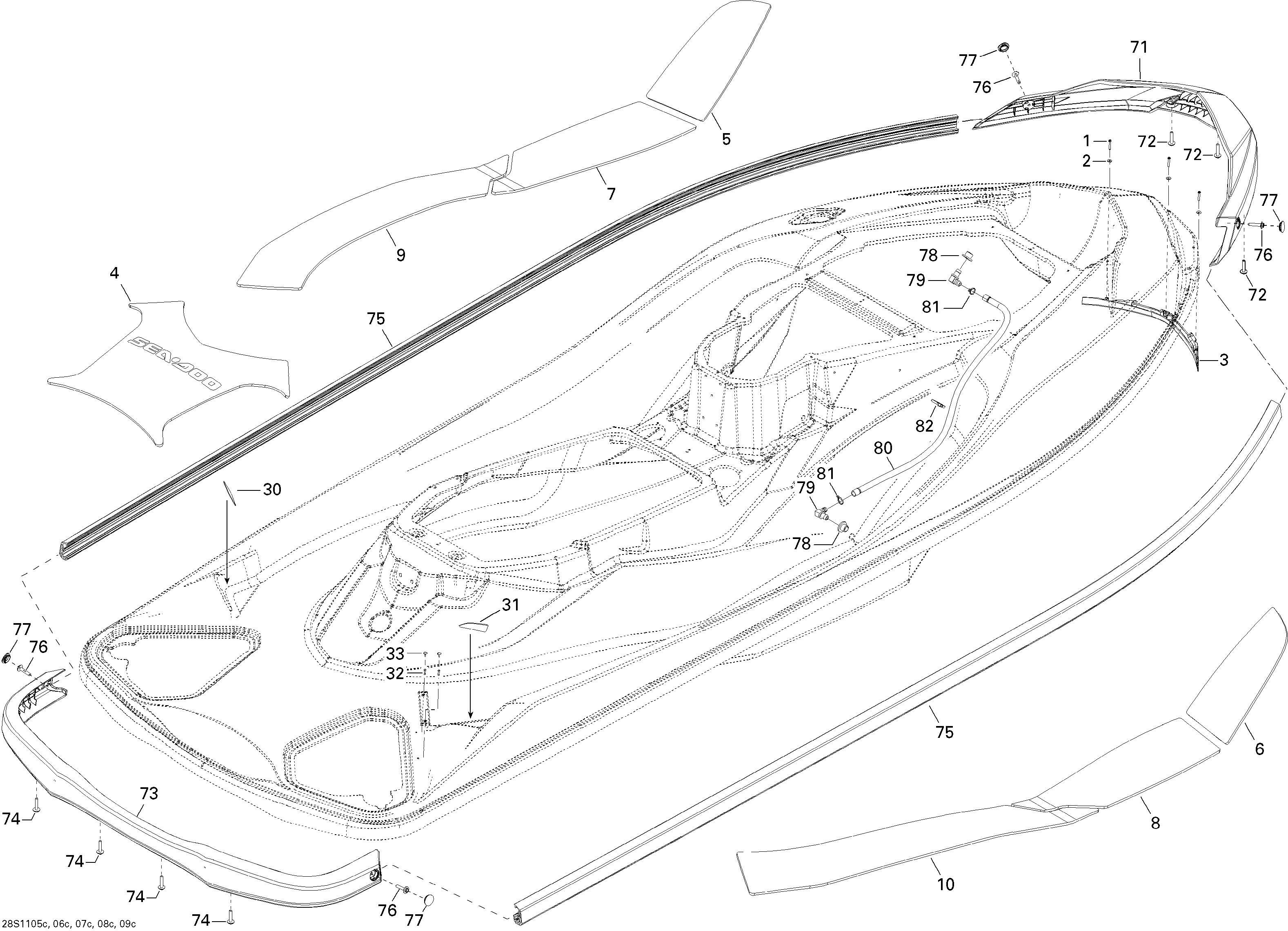

09- Body, Rear View 3 для BRP RXT-X 260 & RS - 2011
-
№АртикулНазвание
-
1234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
2241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
3291002818 Deck NoseDeck Nose
-
4291002960 Rear Plat-Form CarpetRear Plat-Form Carpet
-
5291002961 LH Front CarpetLH Front Carpet
-
6291002962 RH Front CarpetRH Front Carpet
-
7291002963 LH Center CarpetLH Center Carpet
-
8291002964 RH Center CarpetRH Center Carpet
-
9291002965 LH Rear CarpetLH Rear Carpet
-
10291002966 RH Rear CarpetRH Rear Carpet
-
30291002626 LH NonskidLH Nonskid
-
31291002937 RH NonskidRH Nonskid
-
32293150016 Rivet 1/8''Rivet 1/8''
-
33293000014 Snap Cap, BlackSnap Cap, Black
-
71291002588 Front BumberFront Bumber
-
72250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
73291002592 Rear BumberRear Bumber
-
74250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
75291003050 Lateral BumperLateral Bumper
-
76250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
77291002744 Bumber CapBumber Cap
-
78513033435 GrommetGrommet
-
79414523600 Elbow FittingElbow Fitting
-
80275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
81293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
82414115200 Tie-Rap 180 mmTie-Rap 180 mm
