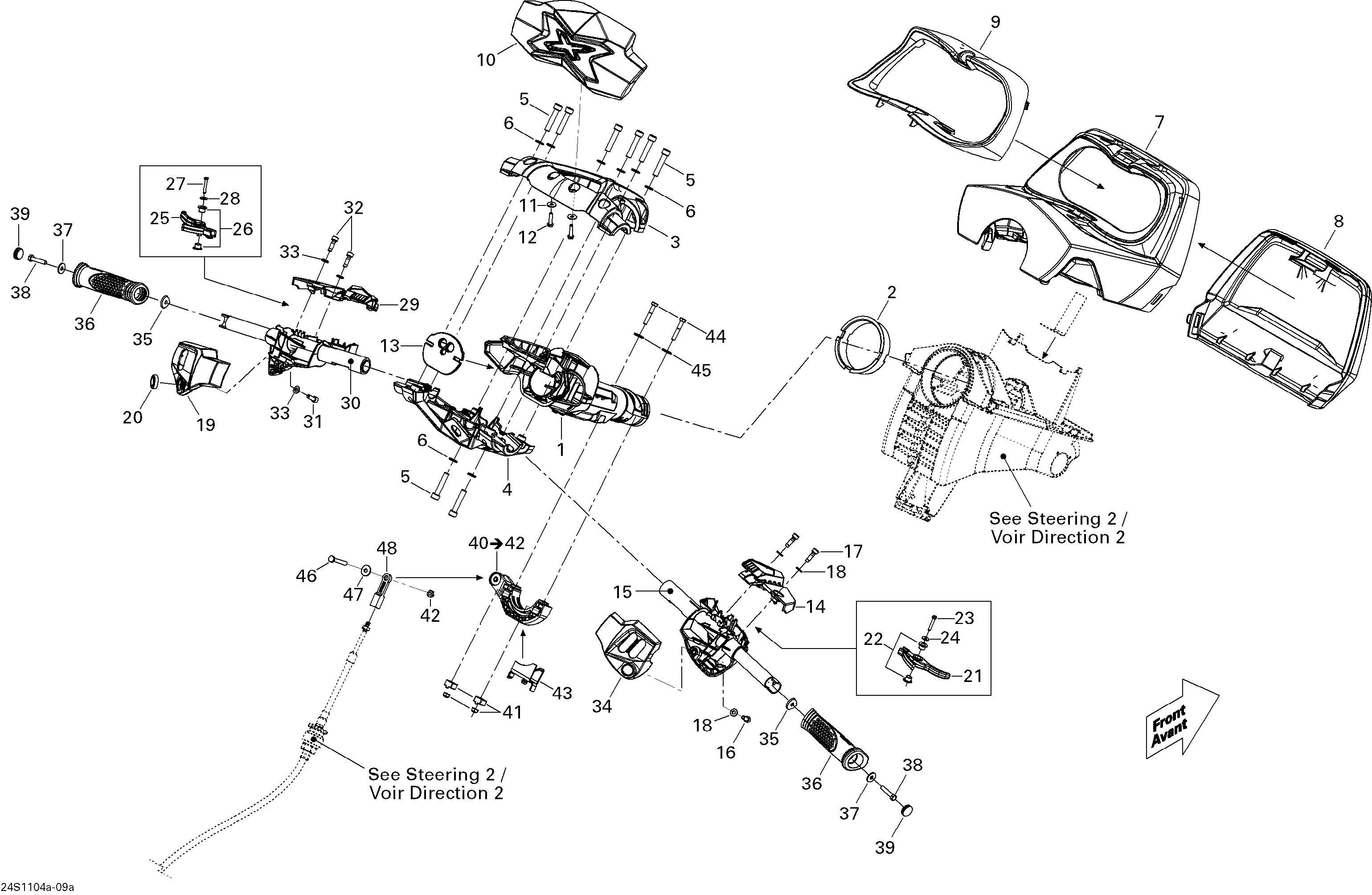

07- Steering 1 для BRP RXT-X 260 & RS - 2011
‹-+›
-
№АртикулНазвание
-
1277001685 Steering ColumnSteering Column
-
2277001653 Wear RingWear Ring
-
3277001708 Front Extension BlocFront Extension Bloc
-
4277001710 Rear Extension BlocRear Extension Bloc
-
5205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
6234080600 Flat Washer 8 mmFlat Washer 8 mm
-
7277001612 Gauge SupportGauge Support
-
8277001613 Gauge Support CoverGauge Support Cover
-
9277001630 Gauge Trim, BlackGauge Trim, Black
-
10277001683 Handle PadHandle Pad
-
11234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
12211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
13293720086 GrommetGrommet
-
14277001688 RH Upper HousingRH Upper Housing
-
15277001689 RH Lower HousingRH Lower Housing
-
16205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
17205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
18234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
19277001715 LH Cover HousingLH Cover Housing
-
20277001802 Switch Knob, RedSwitch Knob, Red
-
21277001620 Throttle HandleThrottle Handle
-
22293900091 BushingBushing
-
23241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
24234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
25277001629 Reverse HandleReverse Handle
-
26293900091 BushingBushing
-
27241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
28234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
29277001686 LH Upper HousingLH Upper Housing
-
30277001687 LH Lower HousingLH Lower Housing
-
31205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
32205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
33234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
34277001718 RH Housing CoverRH Housing Cover
-
35277000554 Handle Grip InsertHandle Grip Insert
-
36277001624 Handle GripHandle Grip
-
37234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
38250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
39277000203 Cap, BlackCap, Black
-
40277001779 Support Ass'y. Includes 40 to 42Support Ass'y. Includes 40 to 42
-
41269501166 Nut Housing Ass'yNut Housing Ass'y
-
42232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
43277001654 SpacerSpacer
-
44207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
45234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
46207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
47234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48277001180 Ball JointBall Joint
