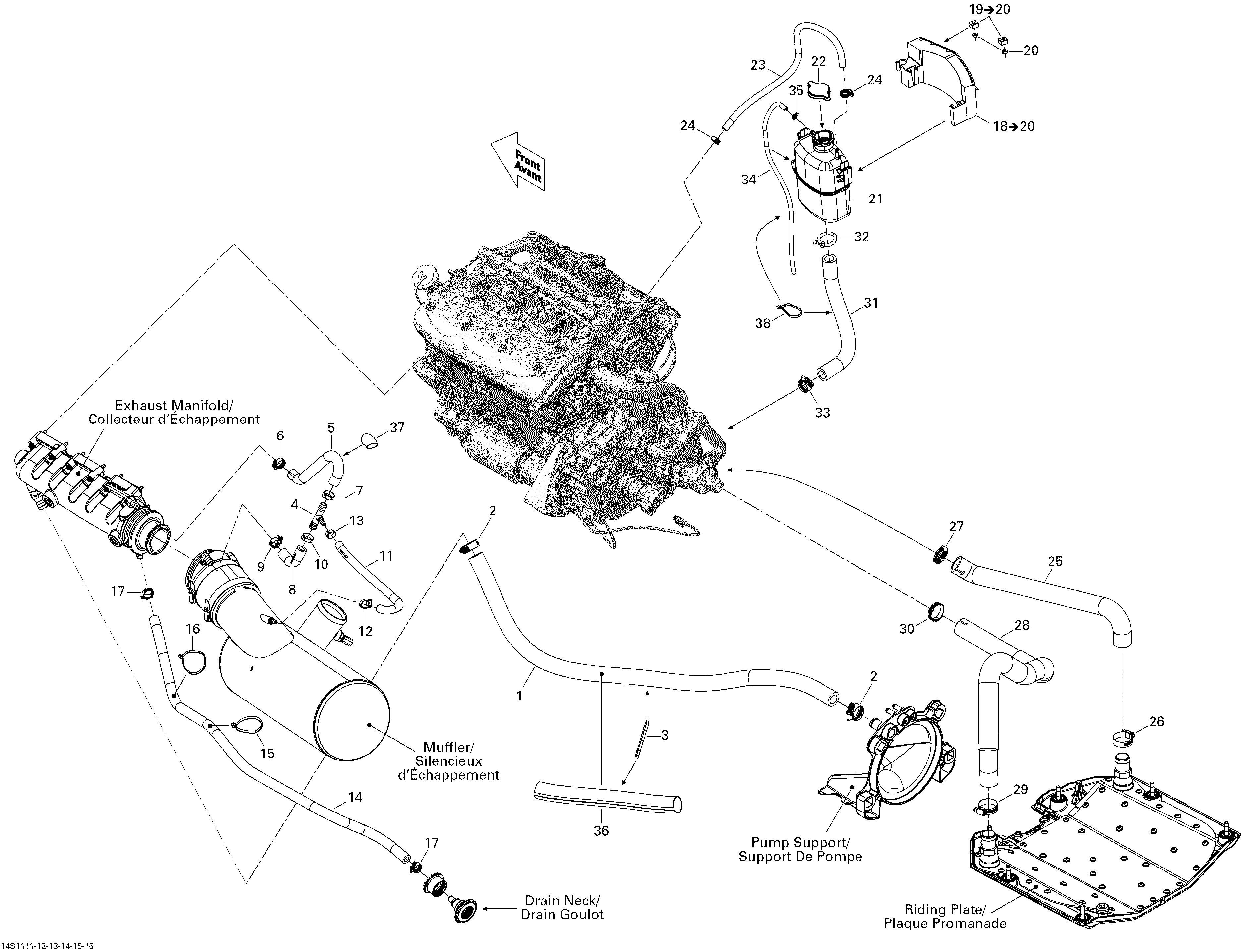

01- Cooling System для BRP GTS 130 & Rental 99 - 2011
-
№АртикулНазвание
-
1276000158 Hose 19 mmHose 19 mm
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4293710116 T-FittingT-Fitting
-
5276000244 Formed HoseFormed Hose
-
6293650172 Tridon Gear ClampTridon Gear Clamp
-
7293650012 Oetiker ClampOetiker Clamp
-
8276000245 Lower Formed HoseLower Formed Hose
-
9293650172 Tridon Gear ClampTridon Gear Clamp
-
10293650012 Oetiker ClampOetiker Clamp
-
11276000246 Formed HoseFormed Hose
-
12293650171 Tridon Gear ClampTridon Gear Clamp
-
13293650030 Oetiker ClampOetiker Clamp
-
14276000151 Hose 12.5 mmHose 12.5 mm
-
15293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
17293650172 Tridon Gear ClampTridon Gear Clamp
-
18291003082 Support Ass'y. Includes 18 to 20Support Ass'y. Includes 18 to 20
-
19269501166 Nut Housing Ass'y. Includes 19 to 20Nut Housing Ass'y. Includes 19 to 20
-
20232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
21276000086 Coolant TankCoolant Tank
-
22276000100 Pressure CapPressure Cap
-
23204300184 Hose 1/4''Hose 1/4''
-
24293650170 Tridon Gear ClampTridon Gear Clamp
-
25276000248 RH Radiator HoseRH Radiator Hose
-
26293650185 Tridon Gear ClampTridon Gear Clamp
-
27293650185 Tridon Gear ClampTridon Gear Clamp
-
28276000249 LH Radiator HoseLH Radiator Hose
-
29293650185 Tridon Gear ClampTridon Gear Clamp
-
30293650185 Tridon Gear ClampTridon Gear Clamp
-
31276000099 Hose 19 mmHose 19 mm
-
32293650115 Spring ClampSpring Clamp
-
33293650019 Tridon Gear ClampTridon Gear Clamp
-
34415080200 Hose, PolyurethaneHose, Polyurethane
-
35293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
36409902200 Tubing 25 mmTubing 25 mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
