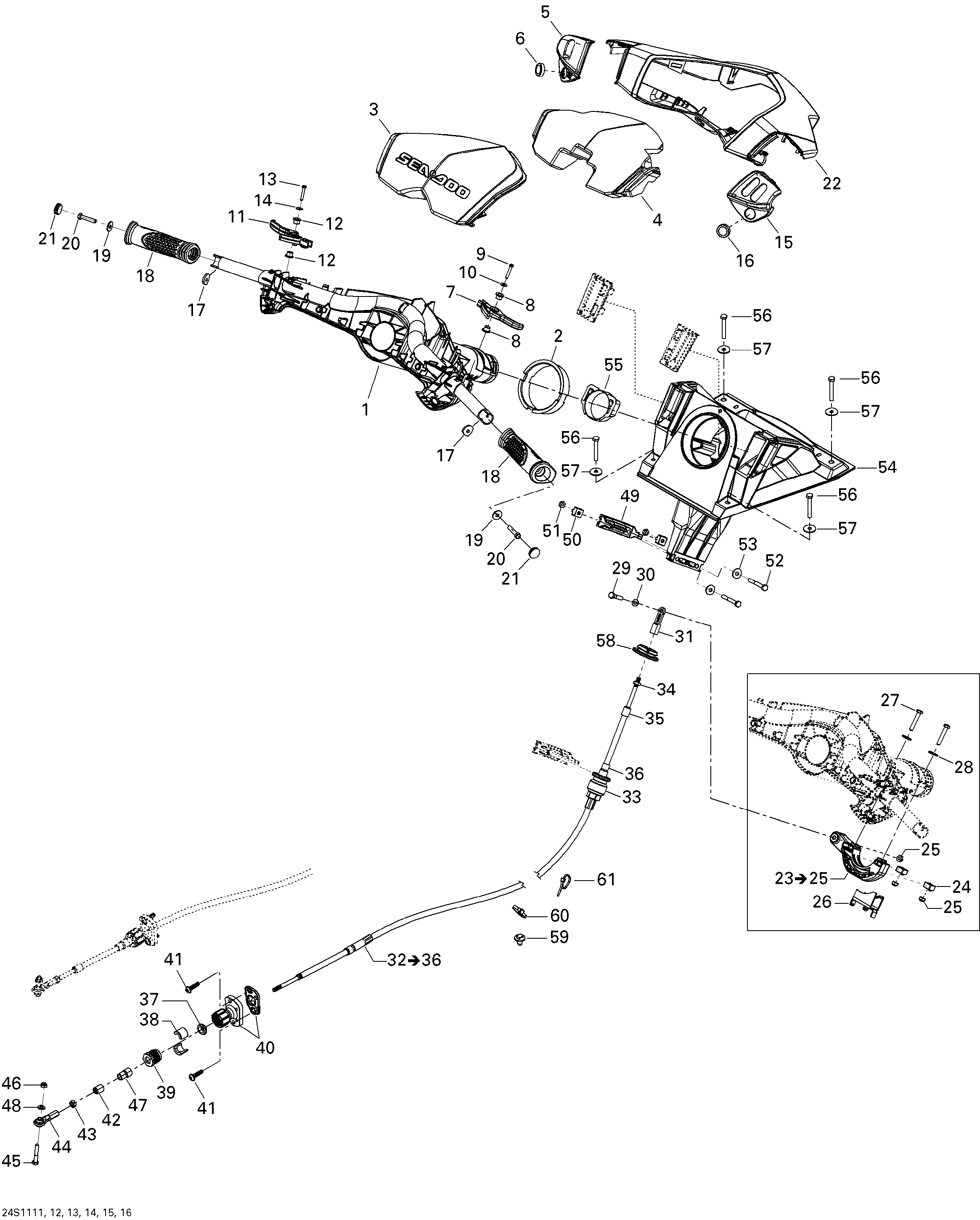

07- Steering для BRP GTS 130 & Rental 99 - 2011

  • №
    Артикул
    Название
  • 1
    277001596 Steering
    Steering
  • 2
    277001653 Wear Ring
    Wear Ring
  • 3
    277001622 Steering Pad, Grey
    Steering Pad, Grey
  • 4
    277001621 Top Foam
    Top Foam
  • 5
    277001721 LH Housing Cover
    LH Housing Cover
  • 6
    277001802 Switch Knob, Red
    Switch Knob, Red
  • 7
    277001620 Throttle Handle
    Throttle Handle
  • 8
    293900091 Bushing
    Bushing
  • 9
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 10
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 15
    277001751 RH Housing Cover
    RH Housing Cover
  • 16
    277001803 Knob Switch, Grey
    Knob Switch, Grey
  • 17
    277000554 Handle Grip Insert
    Handle Grip Insert
  • 18
    277001624 Handle Grip
    Handle Grip
  • 19
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 20
    250000002 Hex. Screw M6 X 30, Scotch Grip
    Hex. Screw M6 X 30, Scotch Grip
  • 21
    277000203 Cap, Black
    Cap, Black
  • 22
    277001752 Steering Cover
    Steering Cover
  • 23
    277001779 Support Ass'y. Includes 23 to 25
    Support Ass'y. Includes 23 to 25
  • 24
    269501166 Nut Housing Ass'y. Includes 24 to 25
    Nut Housing Ass'y. Includes 24 to 25
  • 25
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 26
    277001654 Spacer
    Spacer
  • 27
    207163560 Hex. Screw M6 X 35
    Hex. Screw M6 X 35
  • 28
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 29
    207063060 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 30
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 31
    277001180 Ball Joint
    Ball Joint
  • 32
    277001578 Steering Cable. Includes 32 to 36
    Steering Cable. Includes 32 to 36
  • 33
    277000782 Ajustment Knob
    Ajustment Knob
  • 34
    211100056 Hex. Nut 1/4''-28
    Hex. Nut 1/4''-28
  • 35
    277001582 Small Boot
    Small Boot
  • 36
    277001583 Large Boot
    Large Boot
  • 37
    293830063 Rubber Washer
    Rubber Washer
  • 38
    277001527 Half Ring
    Half Ring
  • 39
    277001729 Steering Cable Lock
    Steering Cable Lock
  • 40
    277001784 Cable Adaptor Ass'y
    Cable Adaptor Ass'y
  • 41
    250000466 Torx Screw Plastite M6
    Torx Screw Plastite M6
  • 42
    277001582 Small Boot
    Small Boot
  • 43
    211100056 Hex. Nut 1/4''-28
    Hex. Nut 1/4''-28
  • 44
    277000775 Ball Joint
    Ball Joint
  • 45
    207063560 Hex. Screw M6 X 35
    Hex. Screw M6 X 35
  • 46
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 47
    277001583 Large Boot
    Large Boot
  • 48
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 49
    277001655 Thrust Support Ass'y
    Thrust Support Ass'y
  • 50
    269501166 Nut Housing Ass'y. Includes 50 to 51
    Nut Housing Ass'y. Includes 50 to 51
  • 51
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 52
    207165060 Hex. Screw M6 X 50
    Hex. Screw M6 X 50
  • 53
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 54
    277001793 Support Ass'y
    Support Ass'y
  • 55
    277001741 Wear Ring
    Wear Ring
  • 56
    245064560 Hex Cap Screw M6X1.0X45 S.Grip
    Hex Cap Screw M6X1.0X45 S.Grip
  • 57
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 59
    293730040 Mount Dart
    Mount Dart
  • 60
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 61
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
