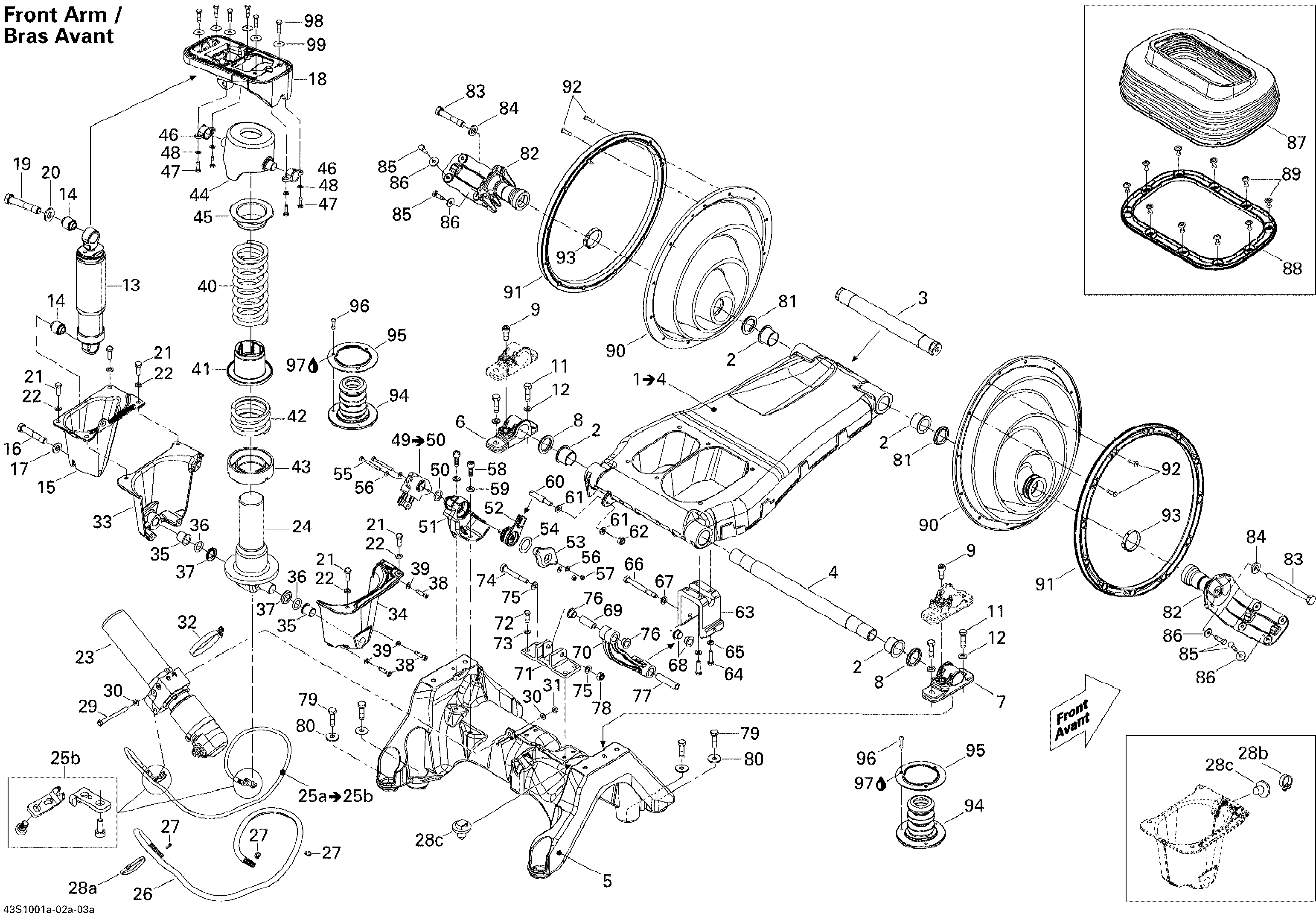

08- Suspension , Front Arm для BRP GTX LTD iS 260 - 2010
-
№АртикулНазвание
-
1279000000 Front Arm Ass'y. Includes 1 to 4Front Arm Ass'y. Includes 1 to 4
-
2279000019 BushingBushing
-
3279000038 Pivot TubePivot Tube
-
4279000041 Pivot TubePivot Tube
-
5279000167 Front Arm BaseFront Arm Base
-
6279000089 LH ClampLH Clamp
-
7279000092 RH ClampRH Clamp
-
8279000047 Rubber BumperRubber Bumper
-
9205582060 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
11207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
12234080600 Flat Washer 8 mmFlat Washer 8 mm
-
13279000126 Shock AbsorberShock Absorber
-
14279000051 BushingBushing
-
15279000055 Shock Lower HolderShock Lower Holder
-
16207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
17250200053 Flat Washer M12Flat Washer M12
-
18279000057 Shock Upper HolderShock Upper Holder
-
19207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
20250200053 Flat Washer M12Flat Washer M12
-
21207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
22234080600 Flat Washer 8 mmFlat Washer 8 mm
-
23279000177 PumpPump
-
24279000117 ActuatorActuator
-
25a279000162 Connector Hose. Includes 25a to 25bConnector Hose. Includes 25a to 25b
-
26515175442 Tubing 6 mmTubing 6 mm
-
27293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28a293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28b414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28c293730040 Mount DartMount Dart
-
29207067060 Hex. Screw M6 X 70Hex. Screw M6 X 70
-
30234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
31232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
32293650079 Norma ClampNorma Clamp
-
33279000070 LH Spring HolderLH Spring Holder
-
34279000074 RH Spring HolderRH Spring Holder
-
35279000103 BushingBushing
-
36279000104 O-RingO-Ring
-
37279000105 BushingBushing
-
38205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
39234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
40279000128 Painted SpringPainted Spring
-
41279000130 Spring SpacerSpring Spacer
-
42279000131 Painted SpringPainted Spring
-
43279000121 Lower Spring ProtectorLower Spring Protector
-
44279000061 Upper Spring HolderUpper Spring Holder
-
45279000134 Upper Spring ProtectorUpper Spring Protector
-
46279000106 ClampClamp
-
47207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
48234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
49270000251 Position Sensor. Includes 49 to 50Position Sensor. Includes 49 to 50
-
50270000544 O-RingO-Ring
-
51279000098 Position Sensor BracketPosition Sensor Bracket
-
52279000099 Sensor LeverSensor Lever
-
53279000107 Position Sensor CoverPosition Sensor Cover
-
54279000108 O-RingO-Ring
-
55207144060 Hex. Screw M4 X 40Hex. Screw M4 X 40
-
56234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
57232541200 Elastic Stop Nut M4Elastic Stop Nut M4
-
58205561260 Socket Head Screw M6 X 12, Scotch GripSocket Head Screw M6 X 12, Scotch Grip
-
59234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
60279000139 Threaded RodThreaded Rod
-
61234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
62232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
63279000154 Spring Alignment AdaptorSpring Alignment Adaptor
-
64205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
65234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
66207287560 Hex. Screw M8 x 75 (Scotch Grip)Hex. Screw M8 x 75 (Scotch Grip)
-
67234080600 Flat Washer 8 mmFlat Washer 8 mm
-
68279000137 BushingBushing
-
69279000138 SpacerSpacer
-
70279000157 Spring Alignment ArmSpring Alignment Arm
-
71279000155 BracketBracket
-
72207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
73234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
74207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
75234080600 Flat Washer 8 mmFlat Washer 8 mm
-
76279000137 BushingBushing
-
77279000153 SpacerSpacer
-
78232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
79207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
80279000164 Flat WasherFlat Washer
-
81279000047 Rubber BumperRubber Bumper
-
82279000065 FootrestFootrest
-
83230201060 Hex. Screw M10 X 110, Scotch GripHex. Screw M10 X 110, Scotch Grip
-
84211200051 Flat WasherFlat Washer
-
85207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
86250200115 Flat Washer M6Flat Washer M6
-
87279000008 Central BellowsCentral Bellows
-
88279000010 Retaining PlateRetaining Plate
-
89293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
90279000009 Lateral BellowsLateral Bellows
-
91279000011 Retaining RingRetaining Ring
-
92293150176 Pop Rivet 3/16''Pop Rivet 3/16''
-
93293650199 Oetiker ClampOetiker Clamp
-
94279000023 Rubber BumperRubber Bumper
-
95279000115 Retaining RingRetaining Ring
-
96293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
97296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
98207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
99250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
