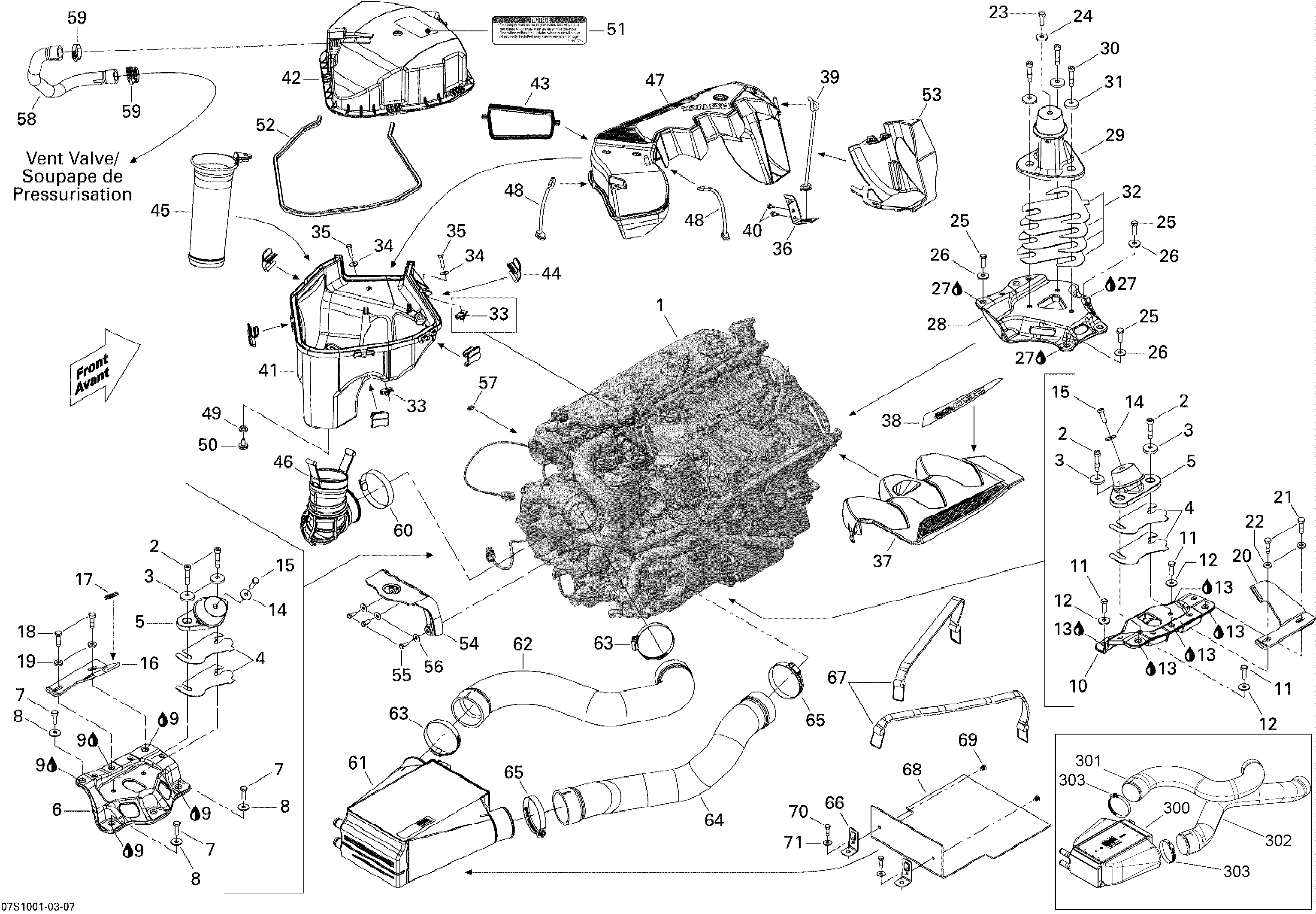

01- Engine And Air Intake Silencer для BRP GTX LTD iS 260 - 2010

‹-+›
  • №
    Артикул
    Название
  • 1
    420150365 Engine Long Block
    Engine Long Block
  • 2
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 3
    250200018 Cone Washer
    Cone Washer
  • 4
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 5
    270000669 Rubber Mount
    Rubber Mount
  • 6
    270000763 Spacer
    Spacer
  • 7
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 8
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 9
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 10
    270000766 Spacer
    Spacer
  • 11
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 12
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 13
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 14
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 15
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 16
    270000796 LH Stopper
    LH Stopper
  • 17
    204610371 Trim, Black
    Trim, Black
  • 18
    207383060 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 19
    293050001 Flat Washer
    Flat Washer
  • 20
    270000799 RH Stopper
    RH Stopper
  • 21
    207383060 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 22
    293050001 Flat Washer
    Flat Washer
  • 23
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 24
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 25
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 26
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 27
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 28
    270000767 Spacer
    Spacer
  • 29
    270000738 Rubber Mount
    Rubber Mount
  • 30
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 31
    250200018 Cone Washer
    Cone Washer
  • 32
    270000770 Shim 1.3 mm
    Shim 1.3 mm
  • 33
    420942108 Clip
    Clip
  • 34
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 35
    207362560 Hex Screw M6 X 25 With Threadlocker
    Hex Screw M6 X 25 With Threadlocker
  • 36
    273000260 Air Intake Tube Support
    Air Intake Tube Support
  • 39
    273000261 Rubber Latch
    Rubber Latch
  • 40
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 41
    273000250 Exh. Emission Component Air Intake Silences
    Exh. Emission Component Air Intake Silences
  • 42
    273000249 Exh. Emission Component Air Silencer Cover
    Exh. Emission Component Air Silencer Cover
  • 43
    293250190 Seal
    Seal
  • 44
    269501718 Clip
    Clip
  • 45
    273000252 Air Intake Silencer Baffle
    Air Intake Silencer Baffle
  • 46
    273000251 Air Intake Silencer Outlet Hose
    Air Intake Silencer Outlet Hose
  • 47
    273000253 Air Intake Tube
    Air Intake Tube
  • 48
    269501299 Rubber Latch
    Rubber Latch
  • 49
    293720064 Grommet
    Grommet
  • 50
    275500454 Check Valve
    Check Valve
  • 51
    219903177 Notice Decal, Air Silencer
    Notice Decal, Air Silencer
  • 52
    293200123 Neoprene Seal
    Neoprene Seal
  • 53
    273000271 Deflector
    Deflector
  • 54
    270000735 Air Intake Silencer Support
    Air Intake Silencer Support
  • 55
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 56
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 57
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 58
    270000807 Formed Hose
    Formed Hose
  • 59
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 60
    293650179 Tridon Gear Clamp
    Tridon Gear Clamp
  • 61
    276000179 Intercooler
    Intercooler
  • 62
    273000282 Intercooler Inlet Hose
    Intercooler Inlet Hose
  • 63
    293650179 Tridon Gear Clamp
    Tridon Gear Clamp
  • 64
    273000283 Outlet Hose Cooler
    Outlet Hose Cooler
  • 65
    293650179 Tridon Gear Clamp
    Tridon Gear Clamp
  • 66
    275500743 Strap Clip 90°
    Strap Clip 90°
  • 67
    293850093 Strap
    Strap
  • 68
    293830138 Rubber Pad
    Rubber Pad
  • 69
    293730016 Dart, Black
    Dart, Black
  • 70
    243162060 Hex. Flanged Screw M6.3 x 20
    Hex. Flanged Screw M6.3 x 20
  • 71
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 300
    276000397 intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
    intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
  • 301
    273000361 Formed Hose. Ref Service Bulletin 2015-7
    Formed Hose. Ref Service Bulletin 2015-7
  • 302
    273000362 Formed Hose. Ref Service Bulletin 2015-7
    Formed Hose. Ref Service Bulletin 2015-7
  • 303
    293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7
    Tridon Gear Clamp. Ref Service Bulletin 2015-7
