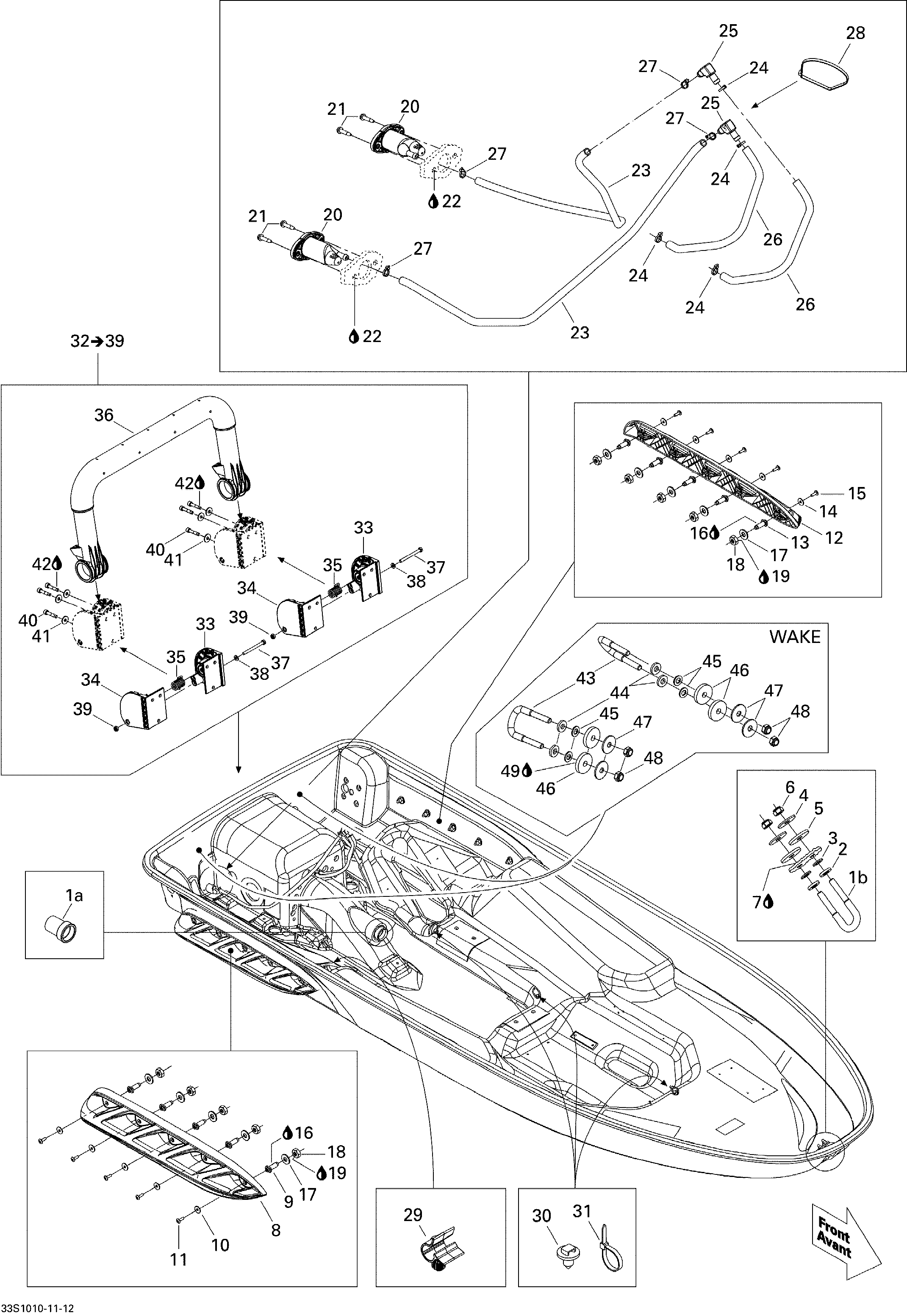

09- Hull для BRP GTI SE 130 - 2010

  • №
    Артикул
    Название
  • 1a
    292000975 Hull Insert, 41 mm
    Hull Insert, 41 mm
  • 1b
    292000933 U-Clamp
    U-Clamp
  • 2
    293050001 Flat Washer
    Flat Washer
  • 3
    234081100 Flat Washer 8 mm
    Flat Washer 8 mm
  • 4
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 5
    293830037 Rubber Washer
    Rubber Washer
  • 6
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 7
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 8
    292001378 RH Sponson
    RH Sponson
  • 9
    292001046 Sponson Adapter
    Sponson Adapter
  • 10
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 11
    250000299 Torx Screw M6.6 x 20, Stainless
    Torx Screw M6.6 x 20, Stainless
  • 12
    292001377 LH Sponson
    LH Sponson
  • 13
    292001046 Sponson Adapter
    Sponson Adapter
  • 14
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 15
    250000299 Torx Screw M6.6 x 20, Stainless
    Torx Screw M6.6 x 20, Stainless
  • 16
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 17
    250200053 Flat Washer M12
    Flat Washer M12
  • 18
    250100078 Elastic Stop Nut M12
    Elastic Stop Nut M12
  • 19
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 20
    292001252 Drain Plug
    Drain Plug
  • 21
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 22
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 23
    415080700 Polyurethane Hose, 8 mm
    Polyurethane Hose, 8 mm
  • 24
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 25
    293710117 Elbow Fitting 90°
    Elbow Fitting 90°
  • 26
    415080700 Polyurethane Hose, 8 mm
    Polyurethane Hose, 8 mm
  • 27
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 28
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 29
    275500528 Hose Retainer
    Hose Retainer
  • 30
    293730040 Mount Dart
    Mount Dart
  • 31
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 31
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 33
    292001201 Support A
    Support A
  • 34
    292001202 Support B
    Support B
  • 35
    292001259 Spring
    Spring
  • 36
    292001204 Overmolded Bar
    Overmolded Bar
  • 37
    207066560 Hex. Screw M6 x 65
    Hex. Screw M6 x 65
  • 38
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 39
    232561600 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 40
    250000386 Socket Screw M6 X 30, Scotch Grip
    Socket Screw M6 X 30, Scotch Grip
  • 41
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 42
    293800066 Sealant, Loctite 5900, 300 ml
    Sealant, Loctite 5900, 300 ml
