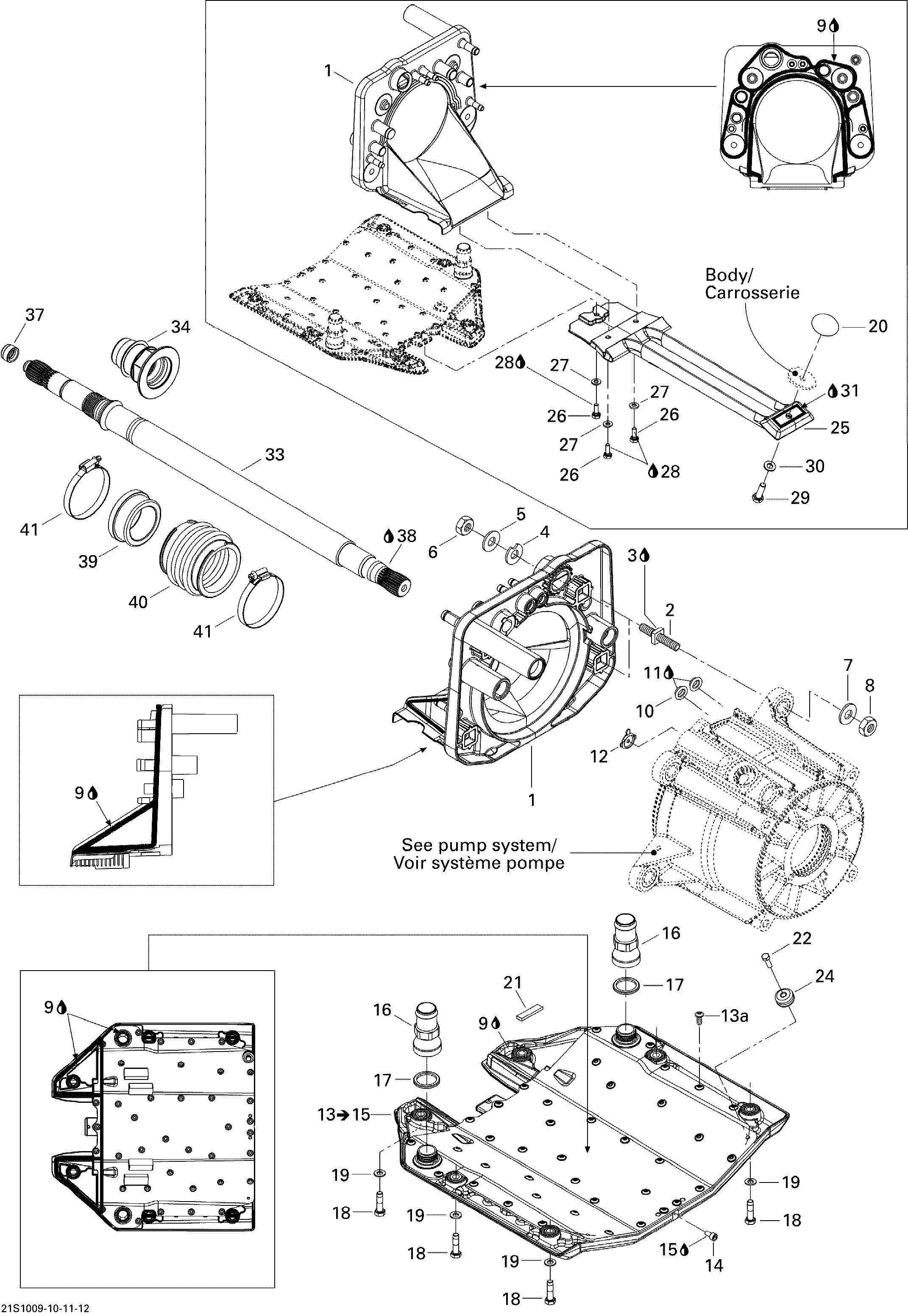

05- Propulsion для BRP GTI SE 130 - 2010

  • №
    Артикул
    Название
  • 1
    271001545 Pump Support
    Pump Support
  • 2
    250300022 Square Stud
    Square Stud
  • 3
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 4
    272000053 Shim, 0.3 mm
    Shim, 0.3 mm
  • 5
    234002600 Flat Washer 10 mm, Stainless
    Flat Washer 10 mm, Stainless
  • 6
    232501200 Brass Elastic Stop Nut, M10
    Brass Elastic Stop Nut, M10
  • 7
    234001600 Flat Washer 10 mm
    Flat Washer 10 mm
  • 8
    232501200 Brass Elastic Stop Nut, M10
    Brass Elastic Stop Nut, M10
  • 9
    293800066 Sealant, Loctite 5900, 300 ml
    Sealant, Loctite 5900, 300 ml
  • 10
    293250084 Watertight Seal
    Watertight Seal
  • 11
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 12
    291001887 Reducer, Yellow
    Reducer, Yellow
  • 13
    271001649 Riding Plate. Includes 13 to 15
    Riding Plate. Includes 13 to 15
  • 13a
    250000384 Torx Screw M6 X 14
    Torx Screw M6 X 14
  • 14
    250500005 Socket Drain Plug M6 X 12
    Socket Drain Plug M6 X 12
  • 15
    293800013 Loctite, Pipe Sealant, 250 ml
    Loctite, Pipe Sealant, 250 ml
  • 16
    293710111 Straight Plastic Fitting
    Straight Plastic Fitting
  • 17
    293300121 O-Ring
    O-Ring
  • 18
    250000230 Hex. Screw, Scotch Grip M8 X 40
    Hex. Screw, Scotch Grip M8 X 40
  • 19
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 20
    293830047 Protector Disk
    Protector Disk
  • 21
    293250087 Gasket
    Gasket
  • 22
    207362060 Hex. Screw M6 X 20, Scotch Grip
    Hex. Screw M6 X 20, Scotch Grip
  • 24
    271001487 Anode Zinc
    Anode Zinc
  • 25
    271001527 Pump Grate, Black
    Pump Grate, Black
  • 26
    207161660 Hex. Screw M6 X 16
    Hex. Screw M6 X 16
  • 27
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 28
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 29
    207383060 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 30
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 31
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 33
    271001623 Drive Shaft
    Drive Shaft
  • 34
    271001680 Float Ring Support
    Float Ring Support
  • 37
    272000173 Drive Shaft Plug
    Drive Shaft Plug
  • 38
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 39
    271001681 Carbon Ring
    Carbon Ring
  • 40
    272000183 Bellows
    Bellows
  • 41
    293650078 Norma Clamp
    Norma Clamp
