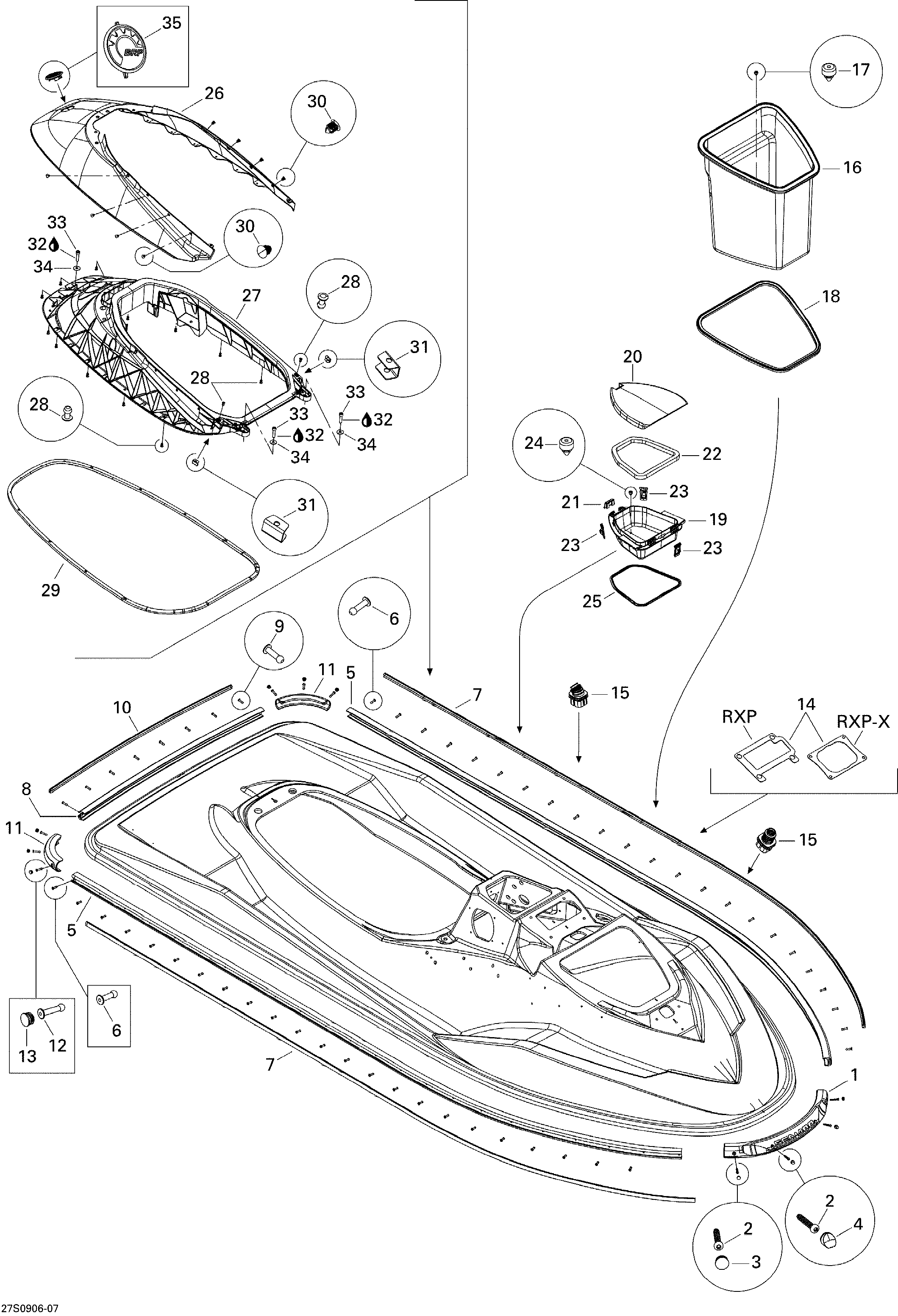

09- Body, Front View для BRP RXP-X 255 and 255 RS - 2009
-
№АртикулНазвание
-
1291001942 Bumper Nose, BlackBumper Nose, Black
-
2250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
3291001519 Bumper Plug, BlackBumper Plug, Black
-
4291001040 Bumper Plug, BlackBumper Plug, Black
-
5204050270 Side Bumper, BlackSide Bumper, Black
-
6293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
7291002074 Side Bumper TrimSide Bumper Trim
-
8291002242 Rear Bumper, BlackRear Bumper, Black
-
9293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
10291002077 Side Bumper TrimSide Bumper Trim
-
11291002244 Bumper CornerBumper Corner
-
12293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
13291000339 Bumper PlugBumper Plug
-
14293250187 GasketGasket
-
15293720042 GrommetGrommet
-
16269500691 Storage TrayStorage Tray
-
17293830005 Rubber Plug, BlackRubber Plug, Black
-
18293200020 Seal, MeterSeal, Meter
-
19269500717 Glove BoxGlove Box
-
20269500928 Glove Box DoorGlove Box Door
-
21269500719 LatchLatch
-
22293250100 GasketGasket
-
23269500820 Retainer LatchRetainer Latch
-
24293830005 Rubber Plug, BlackRubber Plug, Black
-
25293250099 GasketGasket
-
26291002618 Upper Engine CoverUpper Engine Cover
-
27291002542 Lower Engine CoverLower Engine Cover
-
28293150088 Pop Rivet 3/16''Pop Rivet 3/16''
-
29293200020 Seal, MeterSeal, Meter
-
30293730016 Dart, BlackDart, Black
-
31293450259 InsertInsert
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
34234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35291002226 Bumper PlugBumper Plug
