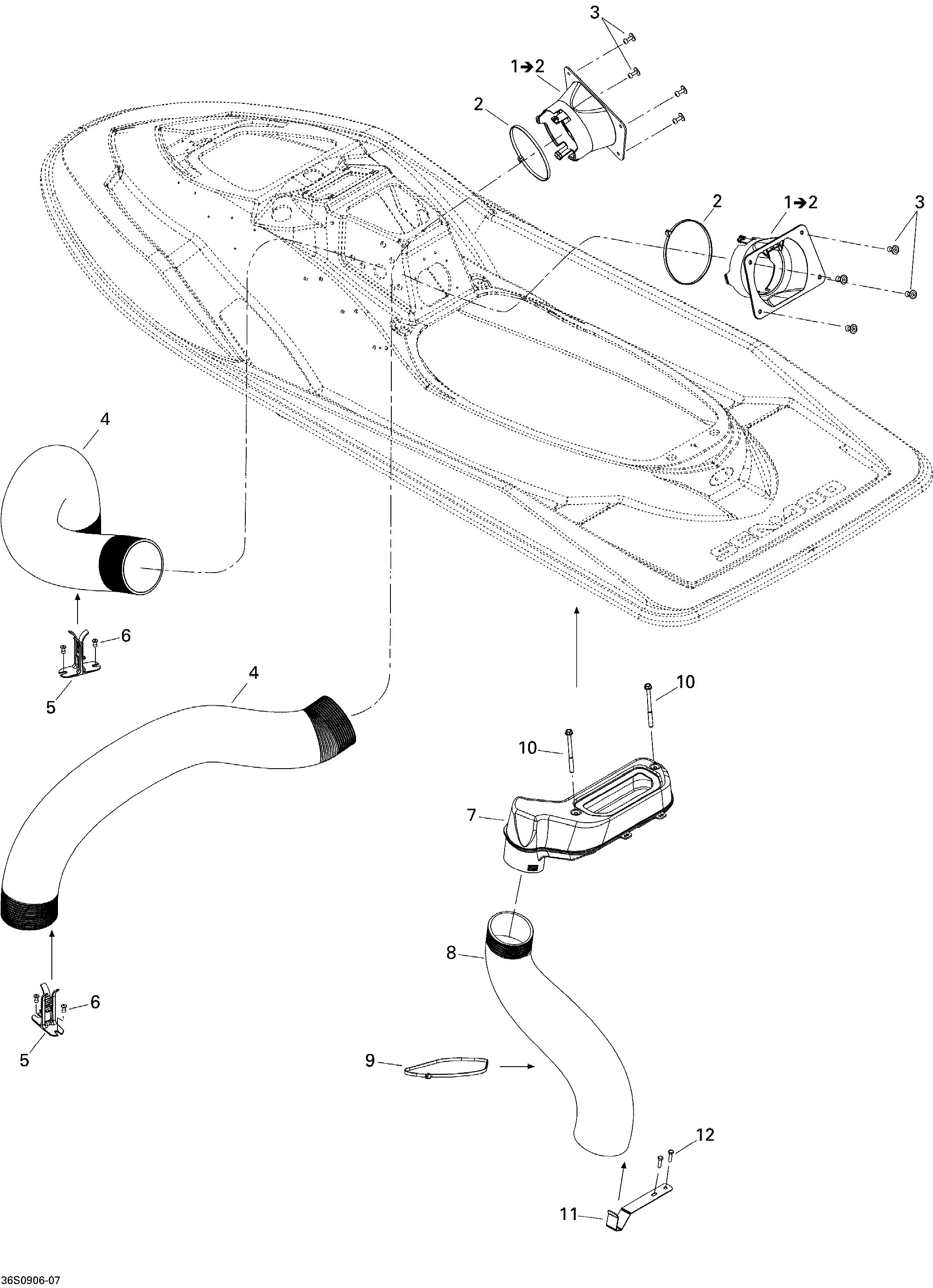

09- Ventilation для BRP RXP-X 255 and 255 RS - 2009

  • №
    Артикул
    Название
  • 1
    291002547 Front Air Collector Ass'y. Includes 1 to 2
    Front Air Collector Ass'y. Includes 1 to 2
  • 2
    293750047 Tie Rap, 533 mm
    Tie Rap, 533 mm
  • 3
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    291002549 Flexible Hose
    Flexible Hose
  • 5
    291002527 Hose Clip
    Hose Clip
  • 6
    293150005 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    291002701 Air Adapter
    Air Adapter
  • 8
    291002544 Rear Hose Vent
    Rear Hose Vent
  • 9
    293750047 Tie Rap, 533 mm
    Tie Rap, 533 mm
  • 10
    243168060 Hex. Plastite Screw M6, 3 X 80
    Hex. Plastite Screw M6, 3 X 80
  • 11
    291002627 Hose Support
    Hose Support
  • 12
    243042060 Hex. Plastite Screw M4, 8 X 20
    Hex. Plastite Screw M4, 8 X 20
