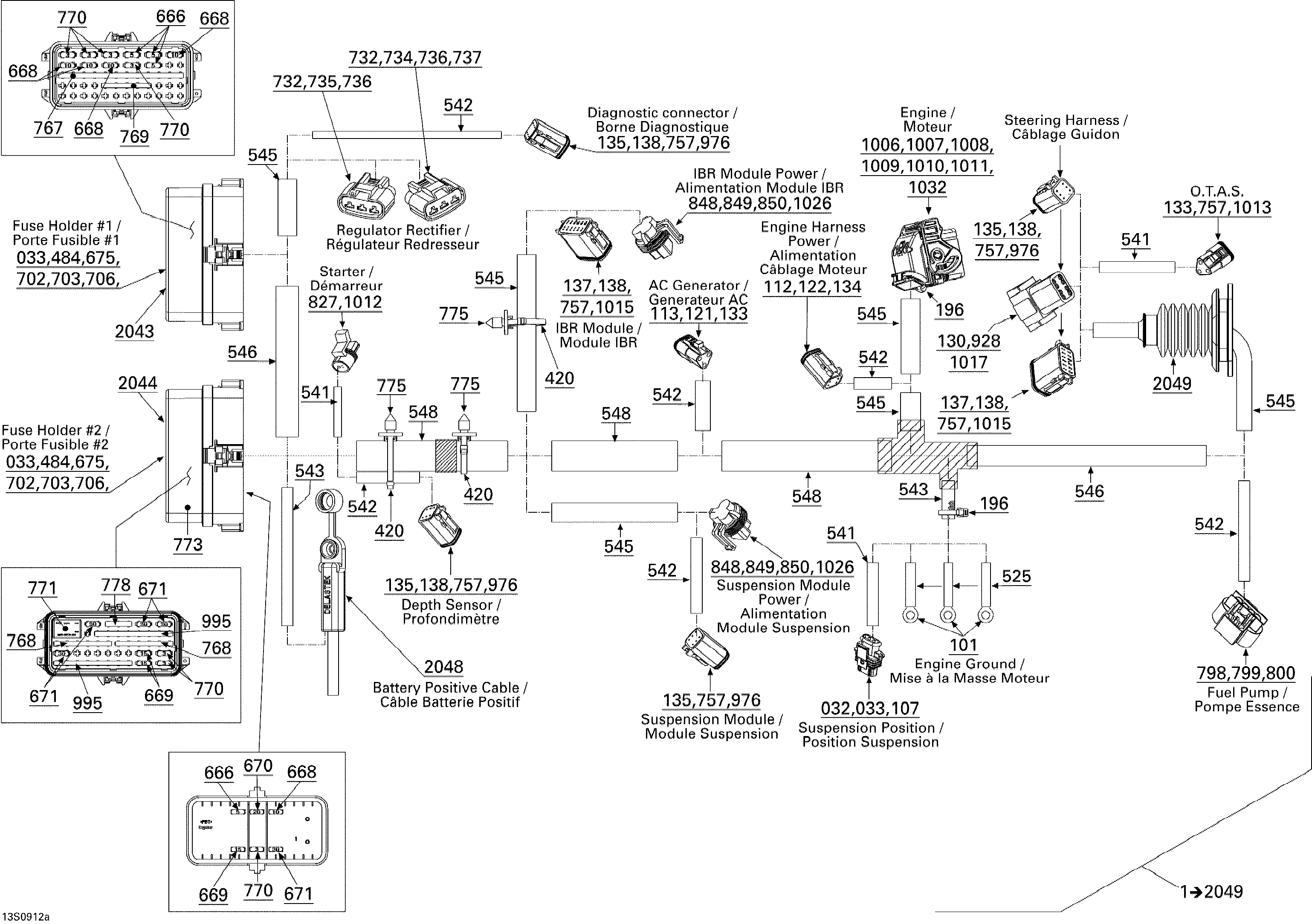

10- Electrical Harness 1 для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1278002277 Main Harness. Includes 1 to 2049Main Harness. Includes 1 to 2049
-
32278000998 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
101278001392 Open BarrelOpen Barrel
-
107278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
121409207400 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
130515175276 Lock Male, 8 CircuitsLock Male, 8 Circuits
-
133409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
134278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
137409015700 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
138293000052 Sealing CapSealing Cap
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
484415128501 SealSeal
-
525710000482 Shrink TubingShrink Tubing
-
541515175442 Tubing 6 mmTubing 6 mm
-
542409901700 Tubing 9 mmTubing 9 mm
-
543409902000 Tubing 12 mmTubing 12 mm
-
545415080000 Tubing 16 mmTubing 16 mm
-
546409901600 Tubing, 19 mmTubing, 19 mm
-
548409902200 Tubing 25 mmTubing 25 mm
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
735710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
757278001665 Female TerminalFemale Terminal
-
767278002165 Bus BarBus Bar
-
768278002165 Bus BarBus Bar
-
769278002165 Bus BarBus Bar
-
770710001008 Little Fuse, 3 AmpereLittle Fuse, 3 Ampere
-
771278002168 Relay, 30 AMPRelay, 30 AMP
-
773710001026 Fuse CoverFuse Cover
-
775293730018 Mount DartMount Dart
-
778278002165 Bus BarBus Bar
-
798278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
799278002186 Wire SealWire Seal
-
800278002187 Female TerminalFemale Terminal
-
827710001119 Female TerminalFemale Terminal
-
848710001158 PlugPlug
-
849710001159 Wire SealWire Seal
-
850710001160 Female TerminalFemale Terminal
-
928710001348 Male TerminalMale Terminal
-
976710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
995278002165 Bus BarBus Bar
-
1006710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
1007710001589 Female TerminalFemale Terminal
-
1008710001590 Female TerminalFemale Terminal
-
1009710001591 CoverCover
-
1010710001592 PlugPlug
-
1011710001593 PlugPlug
-
1012278002374 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
1013278002375 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1015278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
1017278002379 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
1026278002388 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1032710001727 Female TerminalFemale Terminal
-
2043219903034 Fuse-Relay DecalFuse-Relay Decal
-
2044219903035 Fuse-Relay DecalFuse-Relay Decal
-
2048278002400 Battery CableBattery Cable
-
2049293720083 GrommetGrommet
