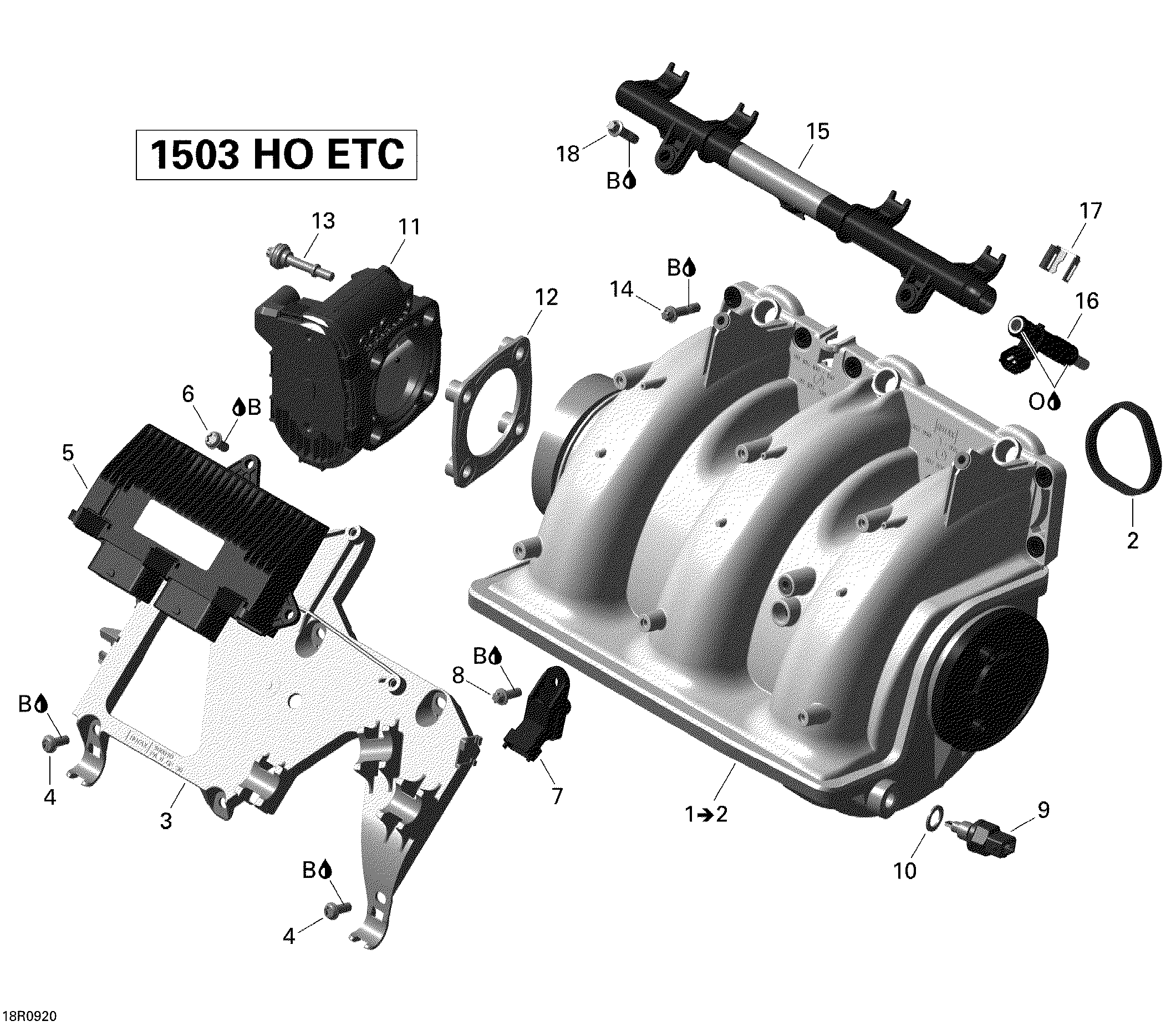

02- Air Intake Manifold And Throttle Body для BRP GTX LIMITED iS 255 - 2009

  • №
    Артикул
    Название
  • 1
    420867951 Induction Manifold. Includes 1 to 2
    Induction Manifold. Includes 1 to 2
  • 2
    420950740 Gasket
    Gasket
  • 3
    420460841 Base Plate
    Base Plate
  • 4
    420641583 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 5
    420666071 Electronic Box. North America
    Electronic Box. North America
  • 5
    420666072 Electronic Box. International
    Electronic Box. International
  • 6
    420641583 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 7
    420274057 Pressure Sensor
    Pressure Sensor
  • 8
    420641048 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 9
    420222423 Temperature Sensor
    Temperature Sensor
  • 10
    420227987 Thrust Washer
    Thrust Washer
  • 11
    420892590 Throttle Body
    Throttle Body
  • 12
    420950792 Rubber Gasket
    Rubber Gasket
  • 13
    420440560 Torx Screw M6 X 30.5
    Torx Screw M6 X 30.5
  • 14
    420641238 Flanged Torx Screw M6 X 25
    Flanged Torx Screw M6 X 25
  • 15
    420874393 Fuel Rail Ass'y
    Fuel Rail Ass'y
  • 16
    420874834 Fuel Injector
    Fuel Injector
  • 17
    420853030 Clip
    Clip
  • 18
    420641238 Flanged Torx Screw M6 X 25
    Flanged Torx Screw M6 X 25
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
