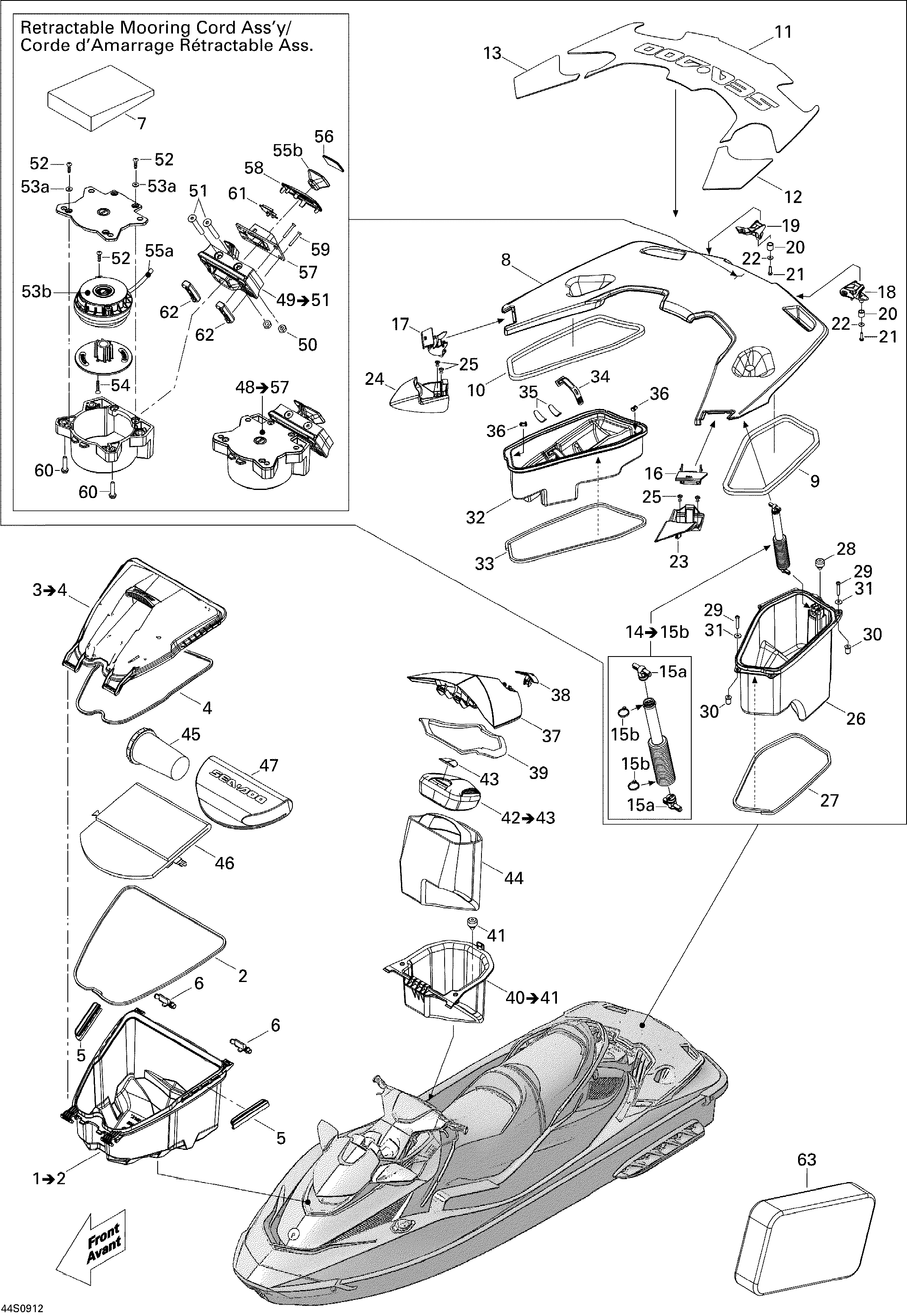

09- Storage Compartments для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1264000007 Storage Bin Ass'y. Includes 1 to 2Storage Bin Ass'y. Includes 1 to 2
-
2293250161 GasketGasket
-
3264000009 Storage Bin Cover Ass'y. Includes 3 to 4Storage Bin Cover Ass'y. Includes 3 to 4
-
4293250210 Neoprene SealNeoprene Seal
-
5269501609 ClipClip
-
6264000024 LatchLatch
-
7264000025 Platform FoamPlatform Foam
-
8264000034 Rear Platform. Includes 8 to 13Rear Platform. Includes 8 to 13
-
9293250186 GasketGasket
-
10293250186 GasketGasket
-
11291002585 Rear Platform CarpetRear Platform Carpet
-
12264000040 LH Platform CarpetLH Platform Carpet
-
13264000041 RH Platform CarpetRH Platform Carpet
-
14264000026 Shock Ass'y. Includes 14 to 15bShock Ass'y. Includes 14 to 15b
-
15a269501717 Shock End PieceShock End Piece
-
15b293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
16264000020 LH LatchLH Latch
-
17264000021 RH LatchRH Latch
-
18264000003 LH Pivot SupportLH Pivot Support
-
19264000032 RH Pivot SupportRH Pivot Support
-
20264000042 SpacerSpacer
-
21243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23264000022 LH Latch Base, BlackLH Latch Base, Black
-
24264000023 RH Latch Base, BlackRH Latch Base, Black
-
25293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
26264000001 LH Rear TrayLH Rear Tray
-
27293250218 GasketGasket
-
28293830005 Rubber Plug, BlackRubber Plug, Black
-
29205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
30250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
31234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32264000002 RH Rear TrayRH Rear Tray
-
33293250218 GasketGasket
-
34269500408 StrapStrap
-
35264000043 Tray PadTray Pad
-
36293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
37264000004 Glove Box Door, TopazGlove Box Door, Topaz
-
38264000019 Latch, BlackLatch, Black
-
39293250204 GasketGasket
-
40264000031 Glove Box. Includes 40 to 41Glove Box. Includes 40 to 41
-
41293830005 Rubber Plug, BlackRubber Plug, Black
-
42291002814 Removable Case. Includes 42 to 43Removable Case. Includes 42 to 43
-
43291002793 Sea-Doo DecalSea-Doo Decal
-
44291002761 Protection LinerProtection Liner
-
45295100177 Safety KitSafety Kit
-
46269501744 Drybag 10LDrybag 10L
-
47269501318 Anchor SandbagAnchor Sandbag
-
48291002628 Retractable Rope Ass'y. Includes 48 to 57Retractable Rope Ass'y. Includes 48 to 57
-
49291002718 Jam Cleat Lock. Includes 49 to 51Jam Cleat Lock. Includes 49 to 51
-
50232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
51205364060 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
52241731260 Oval Philipp Screw KA30 x 12Oval Philipp Screw KA30 x 12
-
53a234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
53b291002762 Inside CoverInside Cover
-
54204100049 Phillips Tapping Screw #8 X 1''Phillips Tapping Screw #8 X 1''
-
55a291002733 Rope 3/16''Rope 3/16''
-
55b291002726 ButtonButton
-
56291002754 Button CapButton Cap
-
57291002729 Rope GuideRope Guide
-
58291002725 Rear Rewind FrameRear Rewind Frame
-
59205364560 Socket Screw Head CTSK M6 X 45Socket Screw Head CTSK M6 X 45
-
60211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
61291002727 Under CamUnder Cam
-
62291002755 Double Cage NutDouble Cage Nut
-
63280000435 Vehicle Cover, GTX LTD iSVehicle Cover, GTX LTD iS
