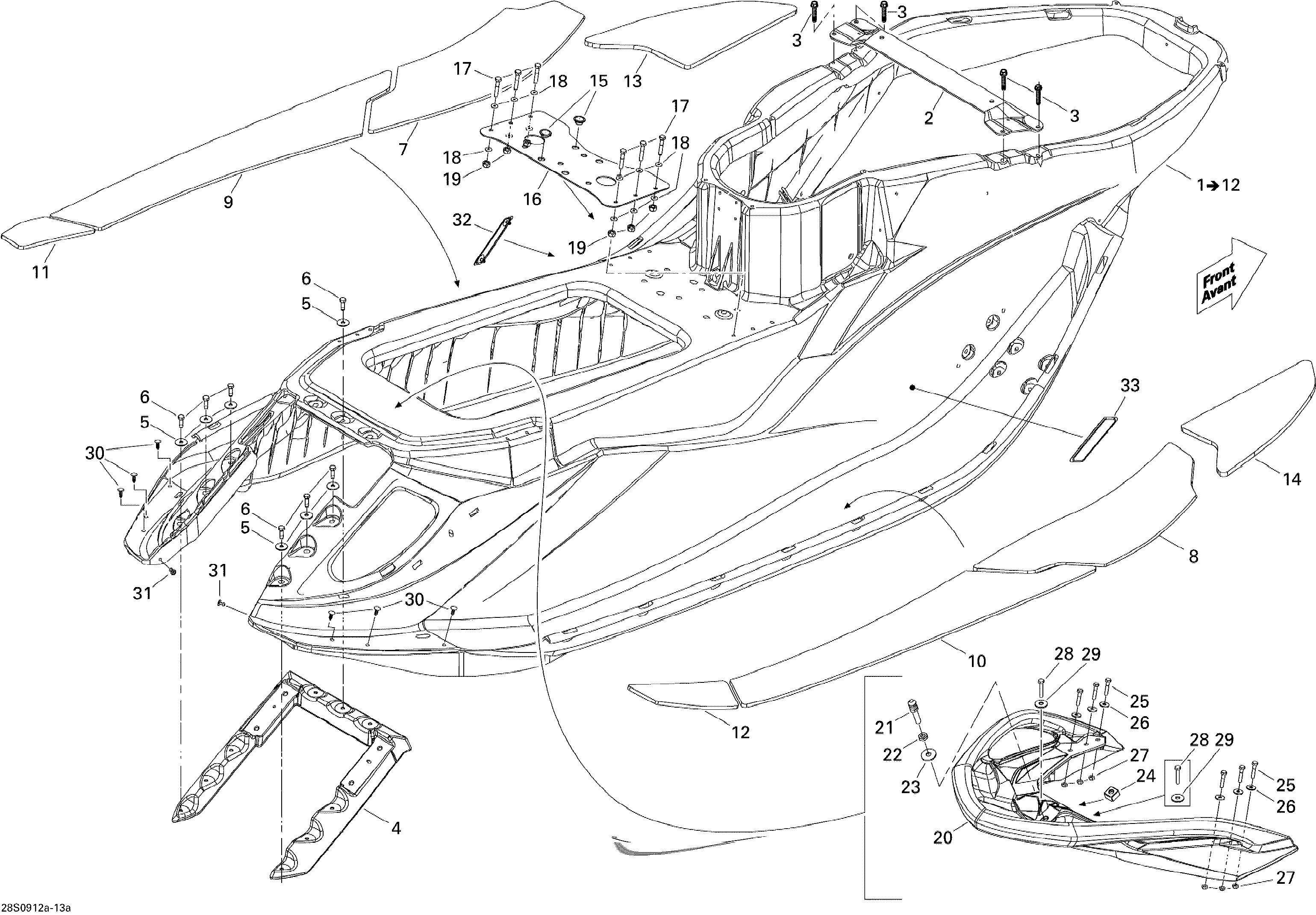

09- Body, Rear View 1 для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1291002587 Upper Body Ass'y. Includes 1 to 12Upper Body Ass'y. Includes 1 to 12
-
2291002778 Module StifnerModule Stifner
-
3243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
4279000013 Rear Pivot AdaptorRear Pivot Adaptor
-
5250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
6207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
7291002609 LH Front Midle CarpetLH Front Midle Carpet
-
8291002610 RH Front Midle CarpetRH Front Midle Carpet
-
9291002611 LH Rear Midle CarpetLH Rear Midle Carpet
-
10291002612 RH Rear Midle CarpetRH Rear Midle Carpet
-
11291002775 LH Rear CarpetLH Rear Carpet
-
12291002776 RH Rear CarpetRH Rear Carpet
-
13291002607 LH Front CarpetLH Front Carpet
-
14291002608 RH Front CarpetRH Front Carpet
-
15291002950 CapCap
-
16291002926 Superior ReinforcementSuperior Reinforcement
-
17207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
18250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
19232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
20291004621 Black Rear HandleBlack Rear Handle
-
21291002784 Seat StudSeat Stud
-
22232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
23234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
24271000598 Nut Housing Ass'yNut Housing Ass'y
-
25207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
28207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
29250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
30293730006 Dart, BlackDart, Black
-
31293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
32291002694 LH Footrest CoverLH Footrest Cover
-
33291002695 RH Footrest CoverRH Footrest Cover
