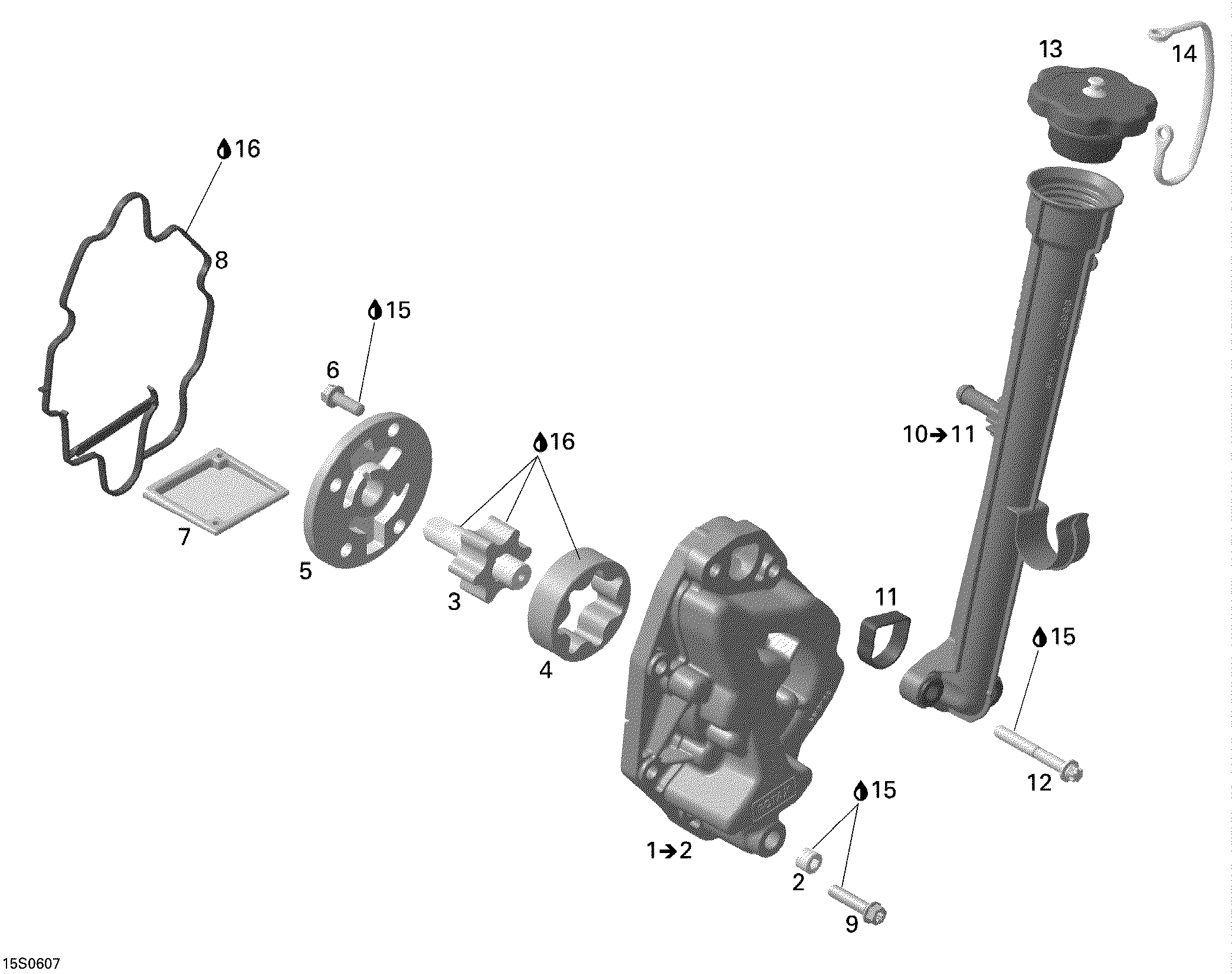

02- Oil Separator для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1420812721 Oil Pump Housing. Includes 1 to 2Oil Pump Housing. Includes 1 to 2
-
2420641323 Plug Screw M10Plug Screw M10
-
3420837543 Oil Pump Shaft Ass'yOil Pump Shaft Ass'y
-
4420956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
5420811850 Oil Pump CoverOil Pump Cover
-
6420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
7420856520 Oil SieveOil Sieve
-
8420631485 GasketGasket
-
9420440237 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
10420856510 Oil Filler Tube. Includes 10 to 11Oil Filler Tube. Includes 10 to 11
-
11420430240 GasketGasket
-
12420641198 Torx Flanged Screw M6 X 45Torx Flanged Screw M6 X 45
-
13420956923 Plug Cover, YellowPlug Cover, Yellow
-
14420660620 Retaining BandRetaining Band
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 LEngine Oil 4 Strokes, 10W40, 12 X 1 L
