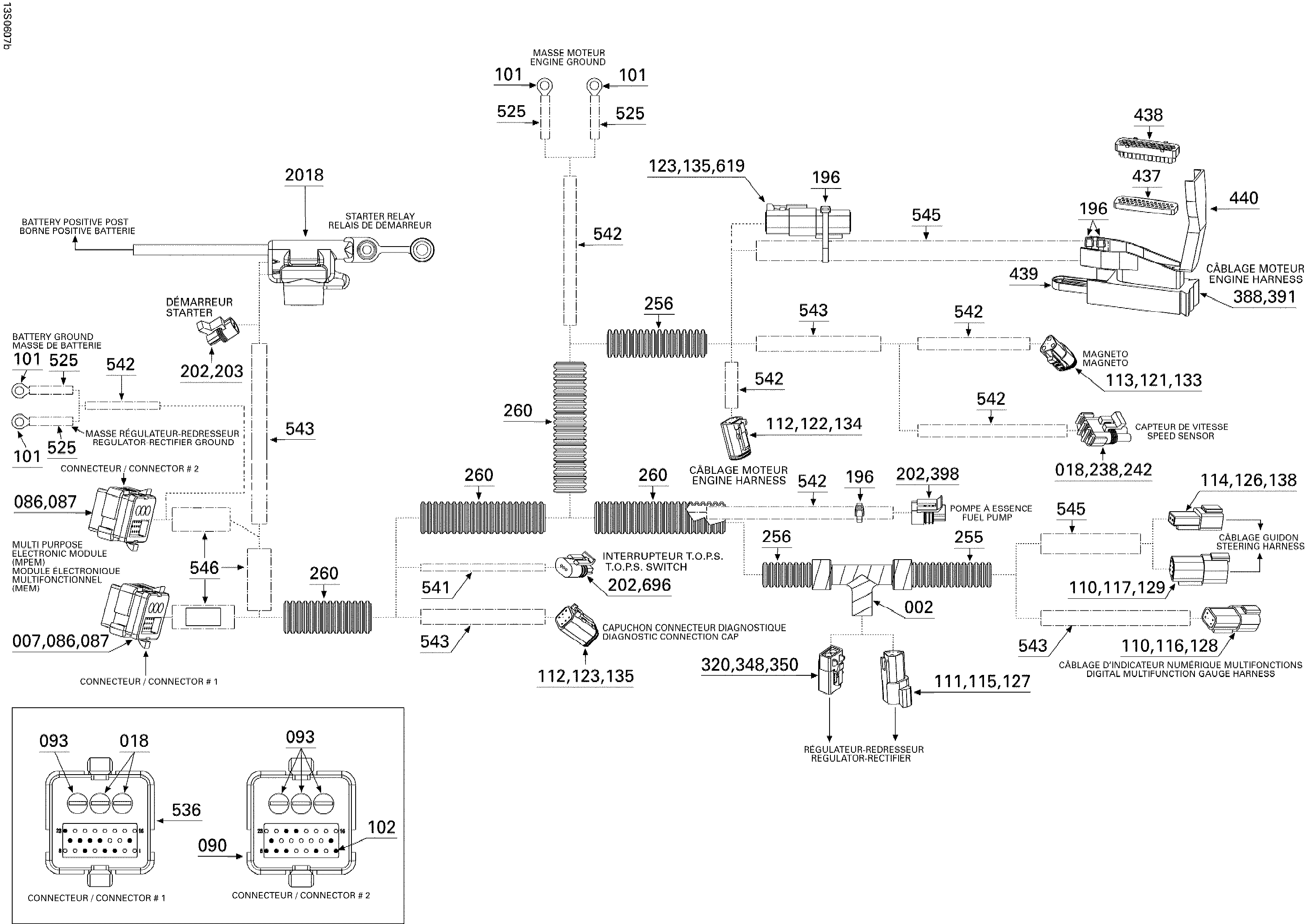

10- Electrical Harness для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1278002118 Wiring Harness. Includes 1 to 2018Wiring Harness. Includes 1 to 2018
-
7409011700 Female TerminalFemale Terminal
-
18278001223 SealSeal
-
86278000995 Female TerminalFemale Terminal
-
87278000994 Female TerminalFemale Terminal
-
90278001062 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
93278000996 SealSeal
-
101278001392 Open BarrelOpen Barrel
-
102293000070 SealSeal
-
110278000631 Male TerminalMale Terminal
-
111515175823 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001276 Female TerminalFemale Terminal
-
114409206900 Logement Male, 2 CircuitsLogement Male, 2 Circuits
-
115409207000 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
116278000635 Female Connector, 4 CircuitsFemale Connector, 4 Circuits
-
117270000137 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
120409207300 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
121409207400 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
123278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
126409207500 Secondary LockSecondary Lock
-
127409207600 Secondary Lock, 3 CircuitsSecondary Lock, 3 Circuits
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
133409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
134278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Seal PlugSeal Plug
-
196293750002 Tie-rap 130 mmTie-rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
229278000223 Female TerminalFemale Terminal
-
237278000220 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
238278000273 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
242278000218 Wire SealWire Seal
-
255409901800 TubingTubing
-
256415080000 Tubing 16mmTubing 16mm
-
260515175319 Tubing, 22 mmTubing, 22 mm
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
350278001671 Secondary Lock, 2 CircuitsSecondary Lock, 2 Circuits
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Connector, 41 CircuitsMale Connector, 41 Circuits
-
398278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
437515175886 Block SealBlock Seal
-
438515175883 HolderHolder
-
439515175884 Secondary LockSecondary Lock
-
440515175885 Protective CapProtective Cap
-
525710000482 Shrink TubingShrink Tubing
-
536278000993 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
619278001892 Bus Connector, 6 CircuitsBus Connector, 6 Circuits
-
696278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
2018278002137 Battery CableBattery Cable
