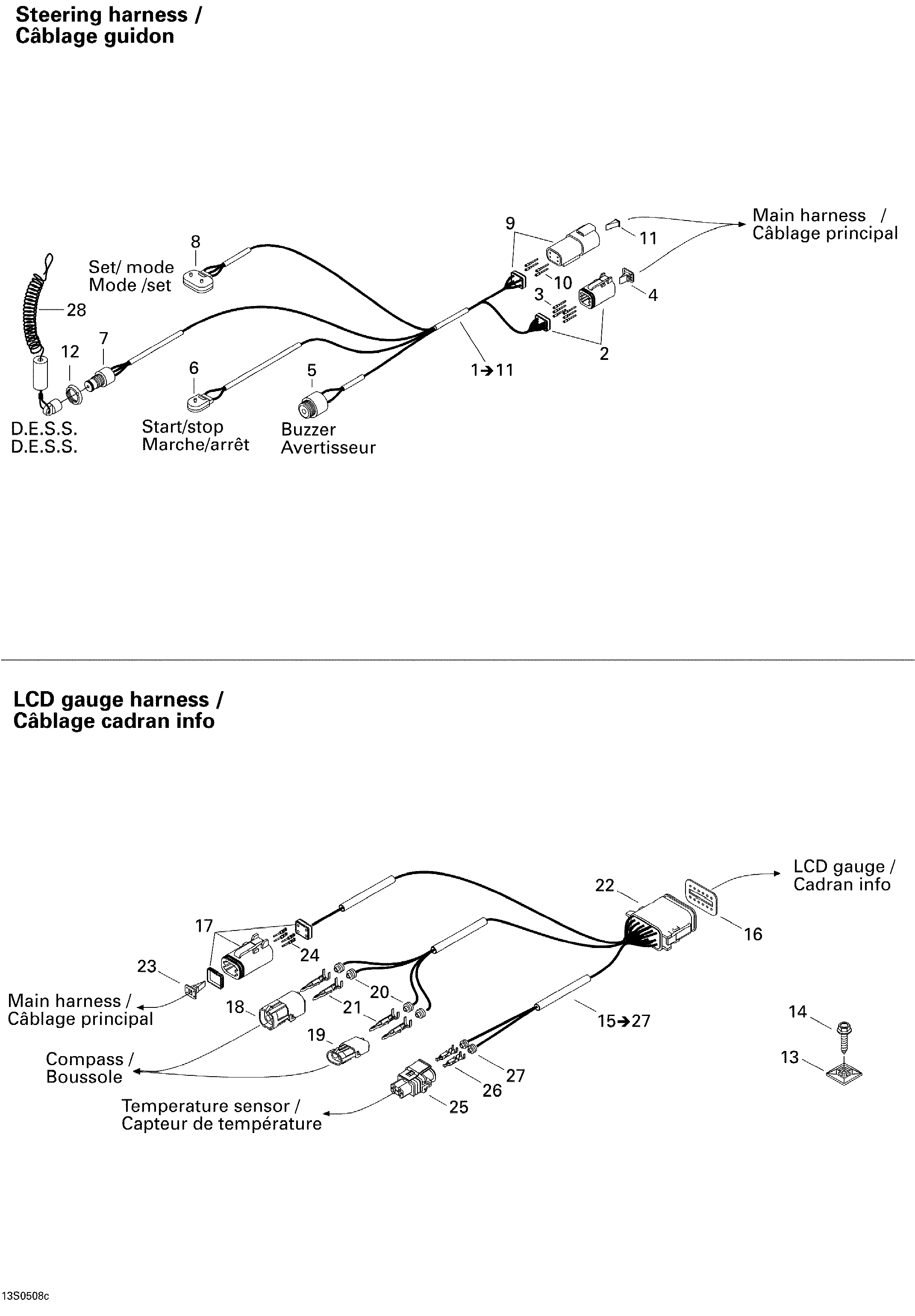

10- Electrical Harness 3 для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1278001732 Steering Harness Ass'Y. Includes 1 to 11Steering Harness Ass'Y. Includes 1 to 11
-
2278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
5278001586 BuzzerBuzzer
-
6278001733 Start/Stop SwitchStart/Stop Switch
-
7278001734 Emergency SwitchEmergency Switch
-
8278001755 Set/Mode SwitchSet/Mode Switch
-
9278000635 Female Connector, 4 CircuitsFemale Connector, 4 Circuits
-
10278000631 Male TerminalMale Terminal
-
11278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
12278000508 Safety Switch NutSafety Switch Nut
-
13293750026 Tie Rap MountTie Rap Mount
-
14241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
15278001702 Cluster Harness Ass'Y. Includes 15 to 27Cluster Harness Ass'Y. Includes 15 to 27
-
16409015700 Secondary Lock, 12 CircuitsSecondary Lock, 12 Circuits
-
17278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
18278000890 Female Connector, 4 CircuitsFemale Connector, 4 Circuits
-
19278000217 Female Connector, 2 CircuitsFemale Connector, 2 Circuits
-
20278000218 Wire SealWire Seal
-
21278000222 Male TerminalMale Terminal
-
22409015900 Male Connector, 12 CircuitsMale Connector, 12 Circuits
-
23278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
24278000632 Female TerminalFemale Terminal
-
25278001005 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
26278000998 Female TerminalFemale Terminal
-
27278000999 SealSeal
-
28278001984 Safety LanyardSafety Lanyard
