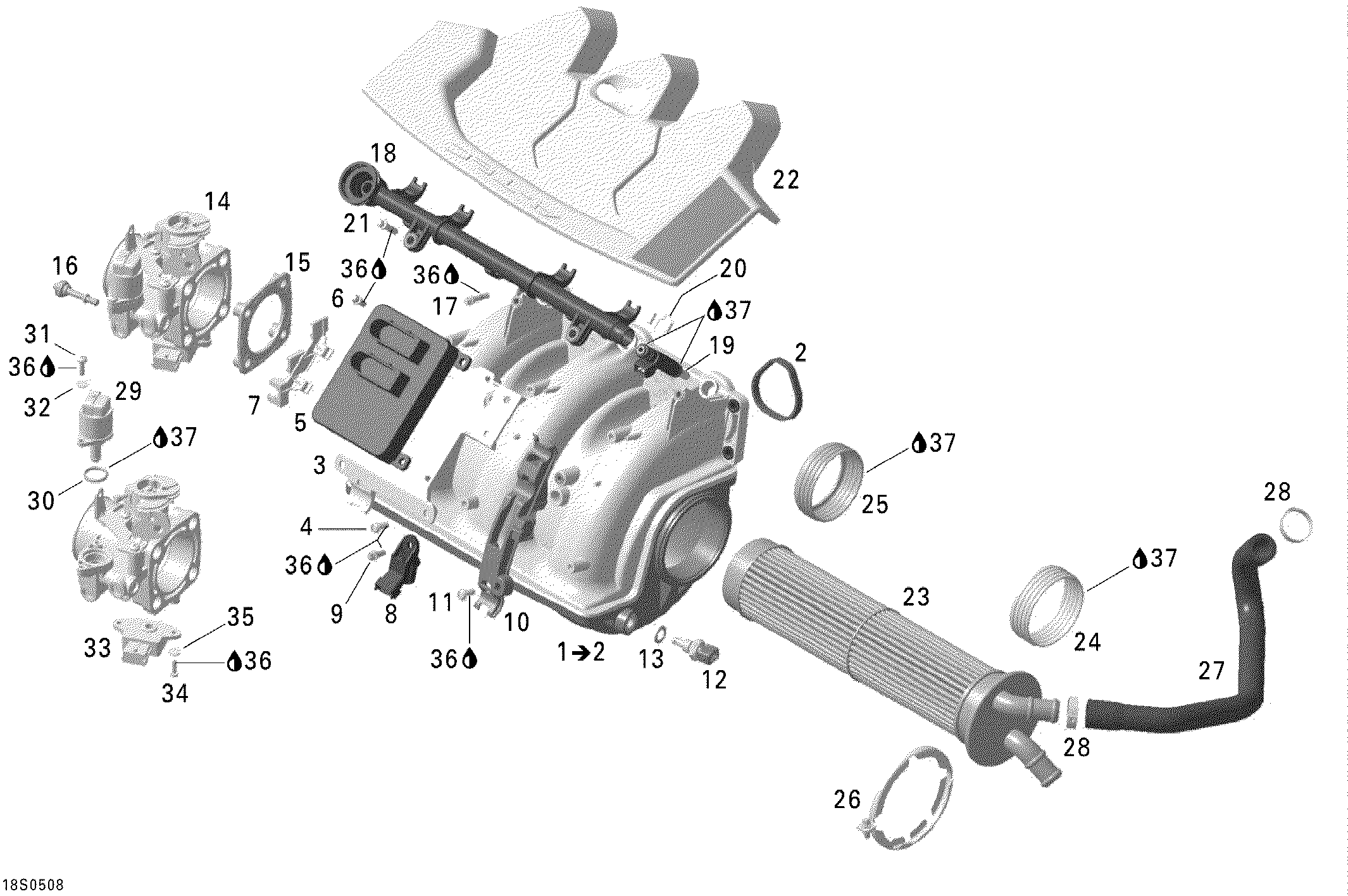

02- Air Intake Manifold для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420867955 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
5420664947 Electronic BoxElectronic Box
-
6420641583 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
7420660402 Connector BracketConnector Bracket
-
8420274057 Pressure SensorPressure Sensor
-
9420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
10420660410 Wiring Harness SupportWiring Harness Support
-
11420641583 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
12420222427 Temperature SensorTemperature Sensor
-
13420250015 Sealing RingSealing Ring
-
14420889023 Throttle BodyThrottle Body
-
15420950792 Rubber GasketRubber Gasket
-
16420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
17420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
18420874391 Fuel Rail Ass'yFuel Rail Ass'y
-
19420874520 Fuel InjectorFuel Injector
-
20420851531 Injector ClipInjector Clip
-
21420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
22270000654 Cover Ass'yCover Ass'y
-
23420889651 IntercoolerIntercooler
-
24420631990 Profile RingProfile Ring
-
25420631995 Profile RingProfile Ring
-
26420853253 Gear ClampGear Clamp
-
27420822170 Formed HoseFormed Hose
-
28420851673 Gear ClampGear Clamp
-
29420963050 Idle Bypass ValveIdle Bypass Valve
-
30420631780 O-RingO-Ring
-
33270000251 Position SensorPosition Sensor
-
34208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
35234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
