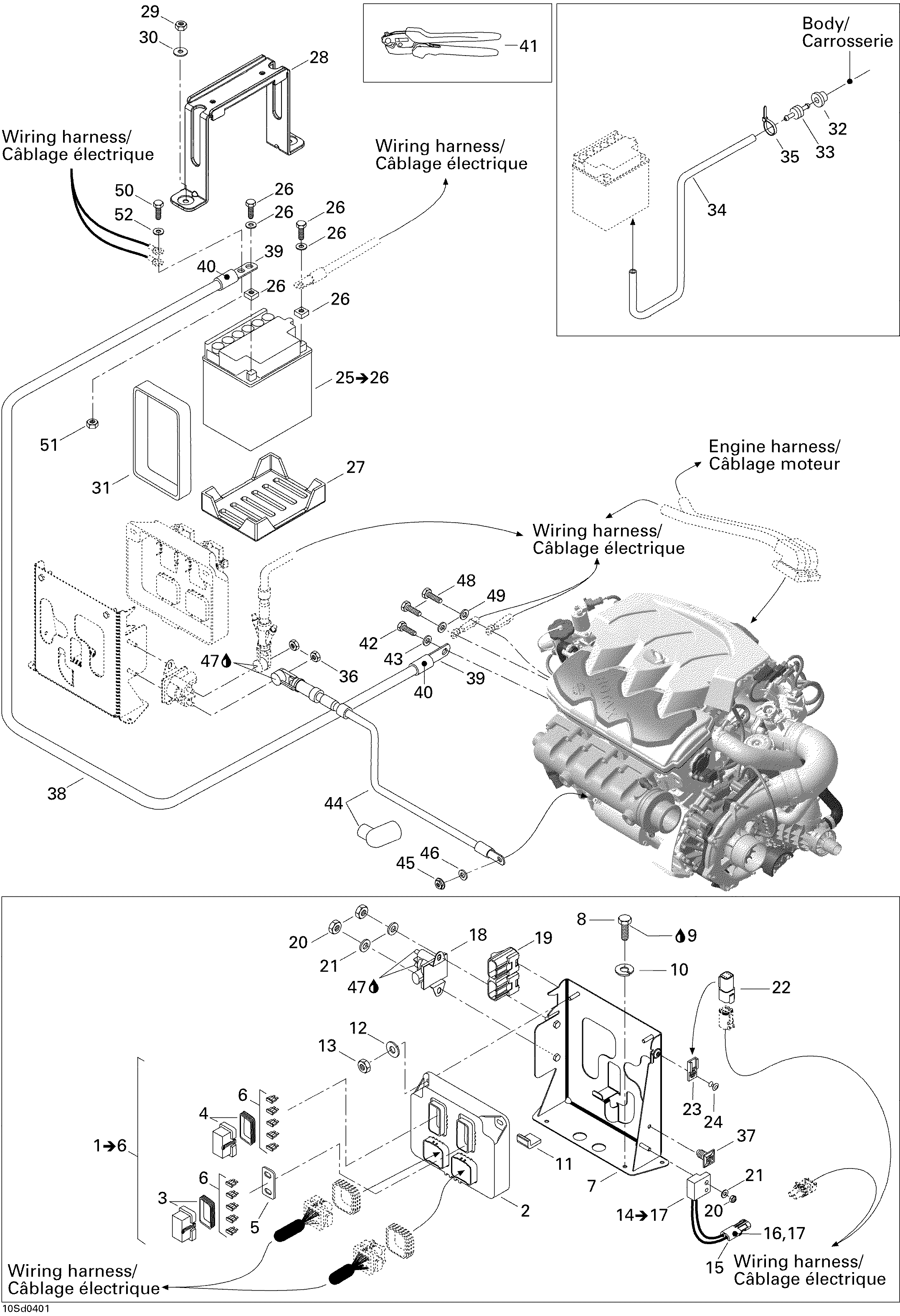

10- Electrical System для BRP GTX 4-TEC, Special Supercharged - 2004

  • №
    Артикул
    Название
  • 1
    278001908 Program module. Includes 1 to 6
    Program module. Includes 1 to 6
  • 2
    278001905 Program Module
    Program Module
  • 3
    278001618 Fuse Cover
    Fuse Cover
  • 4
    278001069 Fuse cover
    Fuse cover
  • 5
    278001719 Support foam
    Support foam
  • 6
    409012800 Fuse 1 ampere
    Fuse 1 ampere
  • 278001442 Fuse 2 amperes
    Fuse 2 amperes
  • 278001196 Fuse 3 amperes
    Fuse 3 amperes
  • 278000344 Fuse 5 amperes
    Fuse 5 amperes
  • 278000704 Fuse 7.5 amperes
    Fuse 7.5 amperes
  • 278001197 Fuse 10 amperes
    Fuse 10 amperes
  • 7
    278001870 Module support
    Module support
  • 8
    211000023 Hex. flanged plastite screw #10 x 7/8''
    Hex. flanged plastite screw #10 x 7/8''
  • 9
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 10
    211200043 Lock washer #12
    Lock washer #12
  • 11
    278001166 Module protector
    Module protector
  • 12
    234062600 Flat washer M6
    Flat washer M6
  • 13
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 14
    278001547 Interrupter. Includes 14 to 17
    Interrupter. Includes 14 to 17
  • 15
    278000217 Male terminal housing (2 circuits)
    Male terminal housing (2 circuits)
  • 16
    278000222 Male terminal
    Male terminal
  • 17
    278000218 Seal
    Seal
  • 18
    278001802 Starter relay
    Starter relay
  • 19
    710000342 Housing cover
    Housing cover
  • 20
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 21
    234061600 Flat washer M6
    Flat washer M6
  • 22
    278001725 Connection cap
    Connection cap
  • 23
    270000141 Clip
    Clip
  • 24
    204000081 Pop rivet 3/16''
    Pop rivet 3/16''
  • 25
    278001882 Battery 30 amperes. Includes 25 to 26
    Battery 30 amperes. Includes 25 to 26
  • 26
    295500849 Battery fastener kit
    Battery fastener kit
  • 27
    278001582 Lower battery pad
    Lower battery pad
  • 28
    278001677 Battery support
    Battery support
  • 29
    232581600 Hex. elastic nut M8
    Hex. elastic nut M8
  • 30
    234082600 Flat washer M8
    Flat washer M8
  • 31
    278001764 Battery strap 337 mm
    Battery strap 337 mm
  • 32
    293720029 Grommet
    Grommet
  • 33
    275500499 Check valve
    Check valve
  • 34
    275500446 Hose 6 mm
    Hose 6 mm
  • 35
    293750001 Tie-rap 94 mm
    Tie-rap 94 mm
  • 36
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 37
    278001775 Self-locking clip
    Self-locking clip
  • 38
    278001611 Ground Cable, Black. Includes 39,40
    Ground Cable, Black. Includes 39,40
  • 42
    207361260 HEX. SCREW M6 X 12 (SCOTCH GRIP)
    HEX. SCREW M6 X 12 (SCOTCH GRIP)
  • 43
    234061600 WASHER-FLAT DIN.125A-A2
    WASHER-FLAT DIN.125A-A2
  • 44
    278001862 CABLE DEMARREUR*CABLE-STARTER
    CABLE DEMARREUR*CABLE-STARTER
  • 45
    232561600 NUT-STOP ELASTIC DIN.985-A2
    NUT-STOP ELASTIC DIN.985-A2
  • 46
    234061600 WASHER-FLAT DIN.125A-A2
    WASHER-FLAT DIN.125A-A2
  • 47
    293550004 GRAISSE DIELECT*GREASE-DIELECT
    GRAISSE DIELECT*GREASE-DIELECT
  • 48
    207361260 SCREW-HEX.CAP DIN.933A2 S.GRIP
    SCREW-HEX.CAP DIN.933A2 S.GRIP
  • 49
    234061600 WASHER-FLAT DIN.125A-A2
    WASHER-FLAT DIN.125A-A2
  • 50
    207161260 SCREW-HEX.CAP DIN.933A2
    SCREW-HEX.CAP DIN.933A2
  • 51
    232561600 NUT-STOP ELASTIC DIN.985-A2
    NUT-STOP ELASTIC DIN.985-A2
  • 52
    234061600 WASHER-FLAT DIN.125A-A2
    WASHER-FLAT DIN.125A-A2
