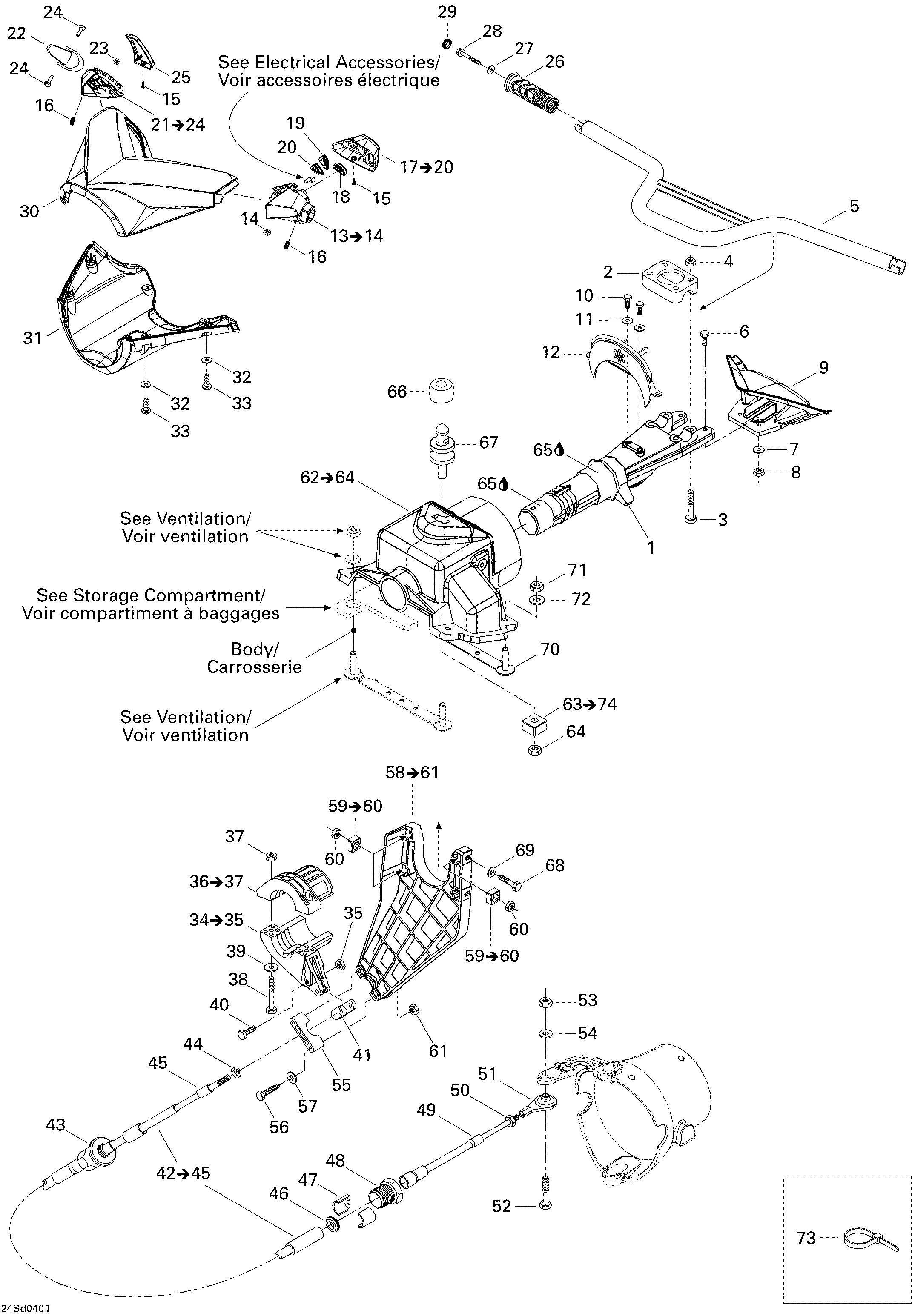

07- Steering System для BRP GTX 4-TEC, Special Supercharged - 2004

  • №
    Артикул
    Название
  • 1
    277000562400 Steering Stem
    Steering Stem
  • 2
    277000142 Steering clamp
    Steering clamp
  • 3
    207085060 Hex. screw M8 x 50
    Hex. screw M8 x 50
  • 4
    232581600 Hex. elastic nut M8
    Hex. elastic nut M8
  • 5
    277001012 Handle bar
    Handle bar
  • 6
    207063060 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 7
    234061600 Flat washer M6
    Flat washer M6
  • 8
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 9
    277001100 Handle Pad Metalic silver (M-519)
    Handle Pad Metalic silver (M-519)
  • 10
    211000036 Hex. forming screw 1/4''-20 x 1/2''
    Hex. forming screw 1/4''-20 x 1/2''
  • 11
    234062600 Flat washer M6
    Flat washer M6
  • 12
    277000549 Plate (black)
    Plate (black)
  • 13
    277000954 Housing ass'y. Includes 13 to 14
    Housing ass'y. Includes 13 to 14
  • 14
    232860600 Square nut M6
    Square nut M6
  • 15
    209630960 Phillips tapping screw M3.9 x 9.5
    Phillips tapping screw M3.9 x 9.5
  • 16
    250000036 Socket set screw M6 x 16
    Socket set screw M6 x 16
  • 17
    277001103 Cover housing ass'y. Includes 17 to 20
    Cover housing ass'y. Includes 17 to 20
  • 18
    278001713 Stop knob
    Stop knob
  • 19
    278001714 Mode knob
    Mode knob
  • 20
    278001715 Set knob
    Set knob
  • 21
    277000995 Throttle housing ass'y. Includes 21 to 24
    Throttle housing ass'y. Includes 21 to 24
  • 22
    277001107 Throttle handle
    Throttle handle
  • 23
    232860600 Square nut M6
    Square nut M6
  • 24
    277000381 Pin
    Pin
  • 25
    277001102 Throttle housing cover
    Throttle housing cover
  • 26
    277001162 Yellow Handle Grip
    Yellow Handle Grip
  • 27
    234062600 Flat washer M6
    Flat washer M6
  • 28
    250000002 Hex. screw M6 x 30 (scotch grip)
    Hex. screw M6 x 30 (scotch grip)
  • 29
    277000203 Grip cap
    Grip cap
  • 30
    277000952 Upper steering cover
    Upper steering cover
  • 31
    277001145 Lower steering cover
    Lower steering cover
  • 32
    234051600 Flat washer M5
    Flat washer M5
  • 33
    241141660 Hex. flanged screw K40 x 16
    Hex. flanged screw K40 x 16
  • 34
    277000518 Stem Steering arm ass'y. Includes 34 to 35
    Stem Steering arm ass'y. Includes 34 to 35
  • 35
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 36
    277000519 Arm thrust ass'y. Includes 36 to 37
    Arm thrust ass'y. Includes 36 to 37
  • 37
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 38
    207162560 Hex. screw M6 x 25
    Hex. screw M6 x 25
  • 39
    234062600 Flat washer M6
    Flat washer M6
  • 40
    211000081 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 41
    277001180 Ball joint
    Ball joint
  • 42
    277000949 Steering cable ass'y. Includes 42 to 45
    Steering cable ass'y. Includes 42 to 45
  • 43
    277000782 Ajustment knob
    Ajustment knob
  • 44
    211100056 Hex. nut 1/4''-28
    Hex. nut 1/4''-28
  • 45
    277000441 Terminal wiper
    Terminal wiper
  • 46
    293830063 Rubber washer
    Rubber washer
  • 47
    277000783 Half-ring
    Half-ring
  • 48
    277000784 Direction cable lock
    Direction cable lock
  • 49
    277000441 Terminal wiper
    Terminal wiper
  • 50
    211100056 Hex. nut 1/4''-28
    Hex. nut 1/4''-28
  • 51
    277000775 Ball joint
    Ball joint
  • 52
    207063560 Hex. srew M6 x 35
    Hex. srew M6 x 35
  • 53
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 54
    234061600 Flat washer M6
    Flat washer M6
  • 55
    277000162 Support thrust
    Support thrust
  • 56
    207065060 Hex. screw M6 x 50
    Hex. screw M6 x 50
  • 57
    234061600 Flat washer M6
    Flat washer M6
  • 58
    277000516 Cable support. Includes 58 to 61
    Cable support. Includes 58 to 61
  • 59
    269500252 Nut housing ass'y. Includes 59 to 60
    Nut housing ass'y. Includes 59 to 60
  • 60
    232061600 Hex. nut M6
    Hex. nut M6
  • 61
    232561600 Hex. elastic nut M6
    Hex. elastic nut M6
  • 62
    277000898 Steering support. Includes 62 to 64
    Steering support. Includes 62 to 64
  • 63
    271001115 Nut housing ass'y. Includes 63 to 64
    Nut housing ass'y. Includes 63 to 64
  • 64
    232001600 Hex. nut M10
    Hex. nut M10
  • 65
    293550010 Synthetic grease, 400 g
    Synthetic grease, 400 g
  • 66
    293830078 Rubber pad
    Rubber pad
  • 67
    291001420 Latch stud
    Latch stud
  • 68
    207162060 Hex. screw M6 x 20
    Hex. screw M6 x 20
  • 69
    234061600 Flat washer M6
    Flat washer M6
  • 70
    277001072 Steering support
    Steering support
  • 71
    232581600 Hex. elastic nut M8
    Hex. elastic nut M8
  • 72
    234081600 Flat washer M8
    Flat washer M8
  • 73
    293750008 Tie-rap 350 mm
    Tie-rap 350 mm
