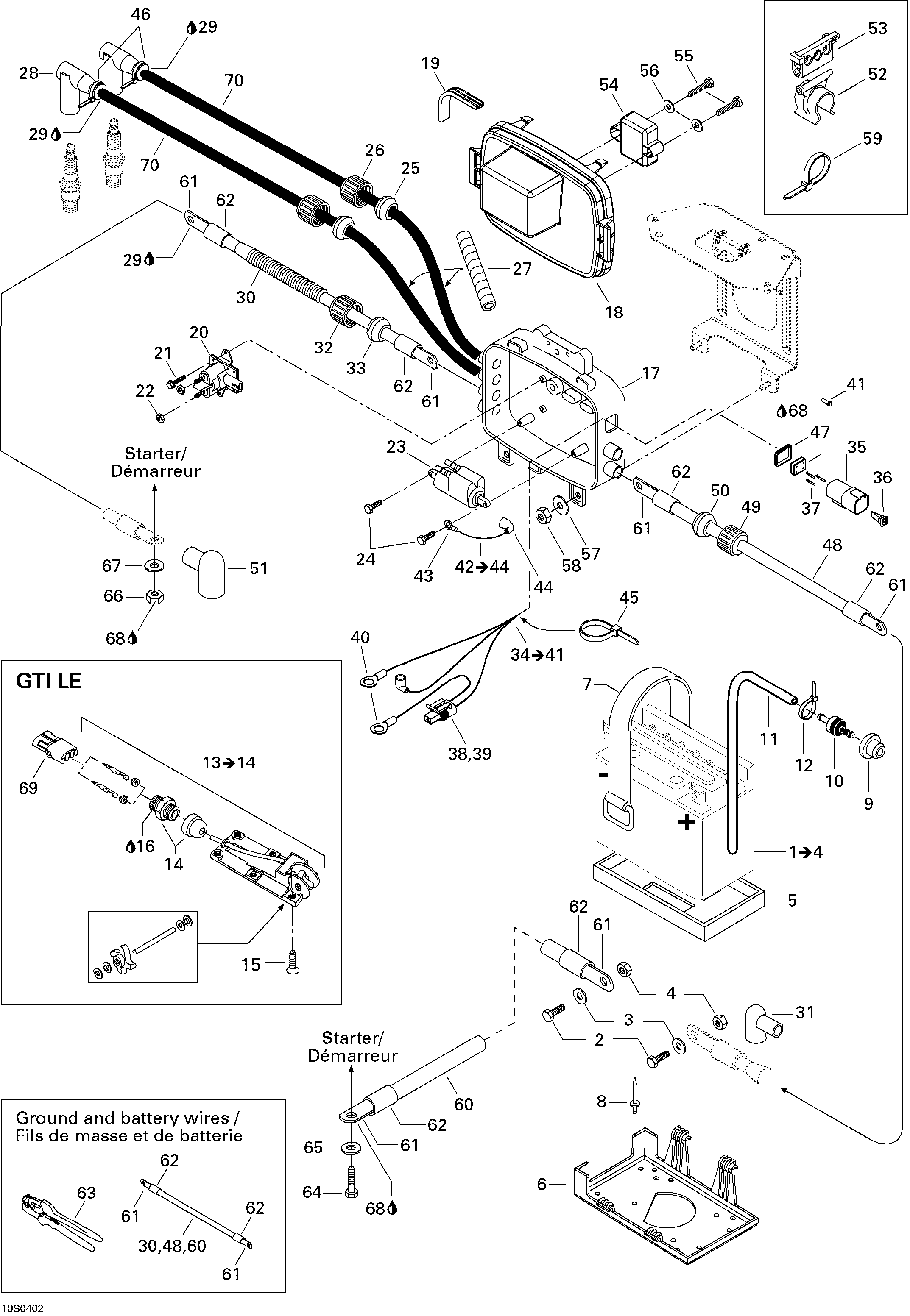

10- Rear Electrical Box для BRP GTI LE - 2004
-
№АртикулНазвание
-
1278001756 Battery. Includes 1 to 4Battery. Includes 1 to 4
-
2211000045 Battery ScrewBattery Screw
-
3211200018 Flat Washer 6 mmFlat Washer 6 mm
-
4211100022 Battery Nut M6Battery Nut M6
-
5278001746 Lower Battery PadLower Battery Pad
-
6278001972 Battery SupportBattery Support
-
7293850097 Retainer StrapRetainer Strap
-
8293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
9293720029 GrommetGrommet
-
10275500499 Check ValveCheck Valve
-
11275500446 Hose 6 mmHose 6 mm
-
12293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
13278001668 Speed Sensor. GTI LE / Includes 13 to 14Speed Sensor. GTI LE / Includes 13 to 14
-
14293710031 Electric Connection. GTI LEElectric Connection. GTI LE
-
15250000020 Phillips Screw M5 X 10. GTI LEPhillips Screw M5 X 10. GTI LE
-
16293800013 Loctite, Pipe Sealant, 250 ml. GTI LELoctite, Pipe Sealant, 250 ml. GTI LE
-
17278001712 Electrical Box BaseElectrical Box Base
-
18278001785 Box CoverBox Cover
-
19278001173 GasketGasket
-
20278001802 Relay StarterRelay Starter
-
21210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
22232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
23278000383 Ignition CoilIgnition Coil
-
24250000005 Hex. Tapping ScrewHex. Tapping Screw
-
25278000682 GrommetGrommet
-
26278000100 Electric Wire CapElectric Wire Cap
-
27293100012 Housing 9 mm, MeterHousing 9 mm, Meter
-
28278000237 Spark Plug CapSpark Plug Cap
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
31278000020 Protection CapProtection Cap
-
32278000100 Electric Wire CapElectric Wire Cap
-
33278000098 GrommetGrommet
-
34278001797 Electric Box Harness. Includes 34 to 41Electric Box Harness. Includes 34 to 41
-
35270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
36278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
37278000631 Male TerminalMale Terminal
-
38278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
39278001114 Female TerminalFemale Terminal
-
40278000992 Open BarrelOpen Barrel
-
41293000052 Sealing CapSealing Cap
-
42278000664 Ground Harness. Includes 42 to 44Ground Harness. Includes 42 to 44
-
43278000300 Ring TerminalRing Terminal
-
44278000228 Female TerminalFemale Terminal
-
45293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
46293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
47293200055 GasketGasket
-
49278000100 Electric Wire CapElectric Wire Cap
-
50278000098 GrommetGrommet
-
51278000020 Protection CapProtection Cap
-
52278000559 Collar SupportCollar Support
-
53278000245 3 Wire Support3 Wire Support
-
54278001795 Cut-off RelayCut-off Relay
-
55243041660 Hex. Plastite Screw M4.8 X 16Hex. Plastite Screw M4.8 X 16
-
56234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
57234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
58232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
59293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
59414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
59293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
60278001667 Ground Cable Battery, No. 6, MeterGround Cable Battery, No. 6, Meter
-
61278001682 Terminal 45°, Small HoleTerminal 45°, Small Hole
-
61278001776 Terminal 30°, 2 HolesTerminal 30°, 2 Holes
-
61278001683 Terminal 45°, Small HoleTerminal 45°, Small Hole
-
61278001684 Terminal 90°, Small HoleTerminal 90°, Small Hole
-
61278001685 Flat Terminal, Big HoleFlat Terminal, Big Hole
-
61278001686 Terminal 45°, Big HoleTerminal 45°, Big Hole
-
61278001687 Terminal 90°, Big HoleTerminal 90°, Big Hole
-
61278001688 Flat TerminalFlat Terminal
-
61278000538 Terminal 45°, Big HoleTerminal 45°, Big Hole
-
61278000544 TerminalTerminal
-
62278001692 Heat ShrinkHeat Shrink
-
63529035730 Crimp PlierCrimp Plier
-
64207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
65234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
66232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
67234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
68293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
69278000217 Female Housing, 2 Circuits. GTI LEFemale Housing, 2 Circuits. GTI LE
-
70278002198 Spark Plug WireSpark Plug Wire
