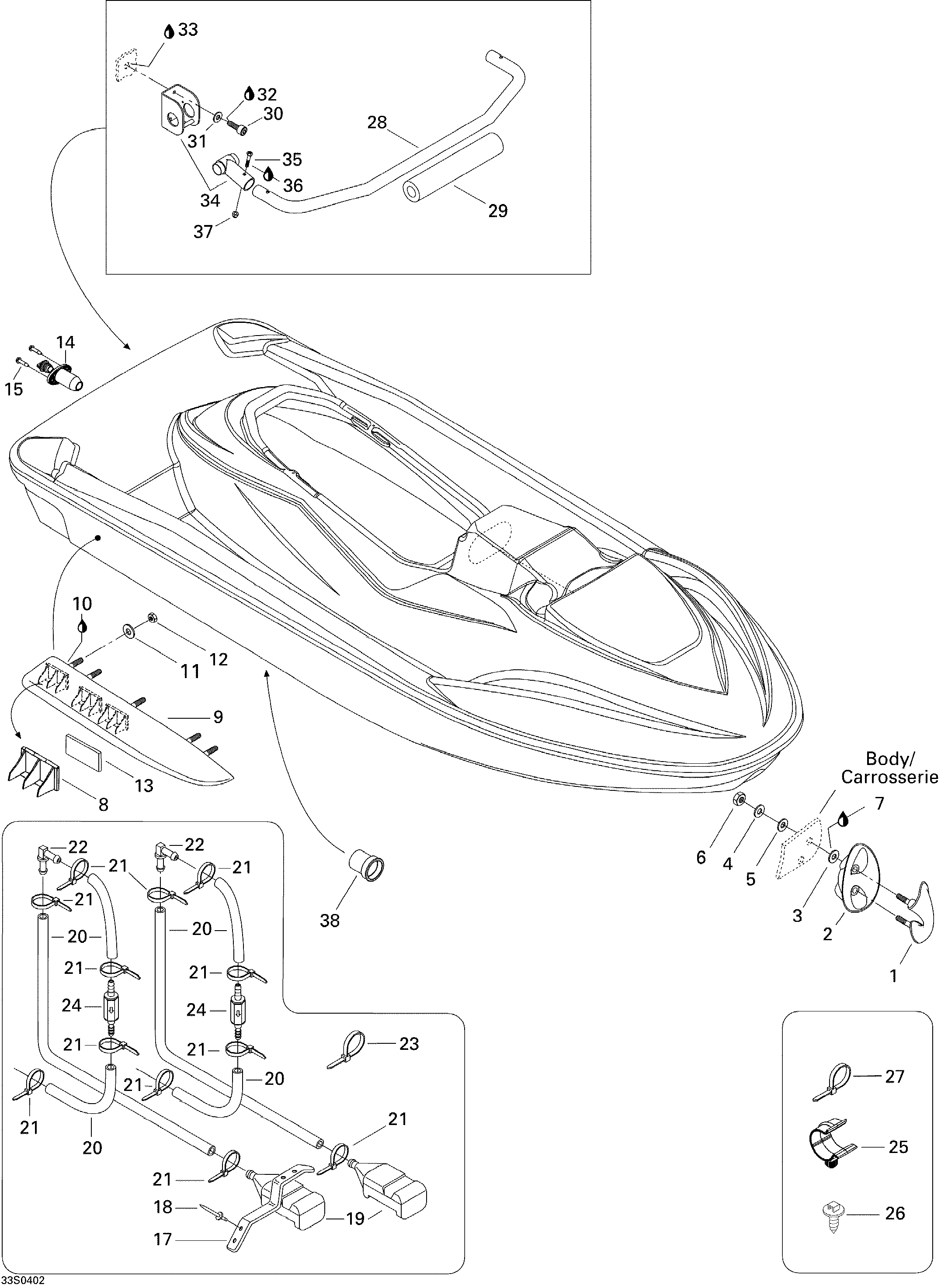

09- Hull для BRP GTI LE - 2004
-
№АртикулНазвание
-
1292000708 Bow-eye (black). GTI LEBow-eye (black). GTI LE
-
1292000710 Bow Eye (White). GTI STDBow Eye (White). GTI STD
-
2292000453 Shell (black). GTI LEShell (black). GTI LE
-
2292000511 Shell (White). GTI STDShell (White). GTI STD
-
3234081600 Flat washer M8Flat washer M8
-
4250200011 Flat washer M8Flat washer M8
-
5293830037 Rubber washerRubber washer
-
6232581600 Hex. elastic nut M8Hex. elastic nut M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8293450149 Sponson InsertSponson Insert
-
9292000594 RH SponsonRH Sponson
-
9292000595 LH SponsonLH Sponson
-
10296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
11250200046 Flat Washer M6Flat Washer M6
-
12232561600 Hex. elastic nut M6Hex. elastic nut M6
-
13292000414 CushionCushion
-
14292000897 Drain PlugDrain Plug
-
15211000023 Hex. flanged plastite screw #10 x 7/8''Hex. flanged plastite screw #10 x 7/8''
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17292000398 L.H. spring clipL.H. spring clip
-
18293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
19292000688 Bailer screenBailer screen
-
20275000007 Hose 8 mmHose 8 mm
-
21293750001 Tie-rap 94 mmTie-rap 94 mm
-
22293710057 Elbow fitting 90°Elbow fitting 90°
-
23293750008 Tie-rap 350 mmTie-rap 350 mm
-
24276000093 Check valveCheck valve
-
25275500528 Hose RetainerHose Retainer
-
25275500527 RetainerRetainer
-
26293730018 Mount dartMount dart
-
27293750008 Tie-rap 350 mmTie-rap 350 mm
-
27414115200 Tie-rapTie-rap
-
28291001691 Stair Tube. Includes 28 to 29 / GTI LEStair Tube. Includes 28 to 29 / GTI LE
-
29292000593 Protective Sleeve. GTI LEProtective Sleeve. GTI LE
-
30250000076 Socket head screw M6 x 25 (scotch grip). GTI LESocket head screw M6 x 25 (scotch grip). GTI LE
-
31234061600 Flat washer M6. GTI LEFlat washer M6. GTI LE
-
32296000309 Sealant Silicone, Clear. GTI LESealant Silicone, Clear. GTI LE
-
33293800066 Sealant, loctite 5900, 300 ml. GTI LESealant, loctite 5900, 300 ml. GTI LE
-
34292000562 Stair Support. GTI LEStair Support. GTI LE
-
35205063560 Socket head screw M6 x 35. GTI LESocket head screw M6 x 35. GTI LE
-
36293800060 Loctite 243. GTI LELoctite 243. GTI LE
-
37232361600 Domed hex. nut M6. GTI LEDomed hex. nut M6. GTI LE
-
38292000075 Hull InsertHull Insert
