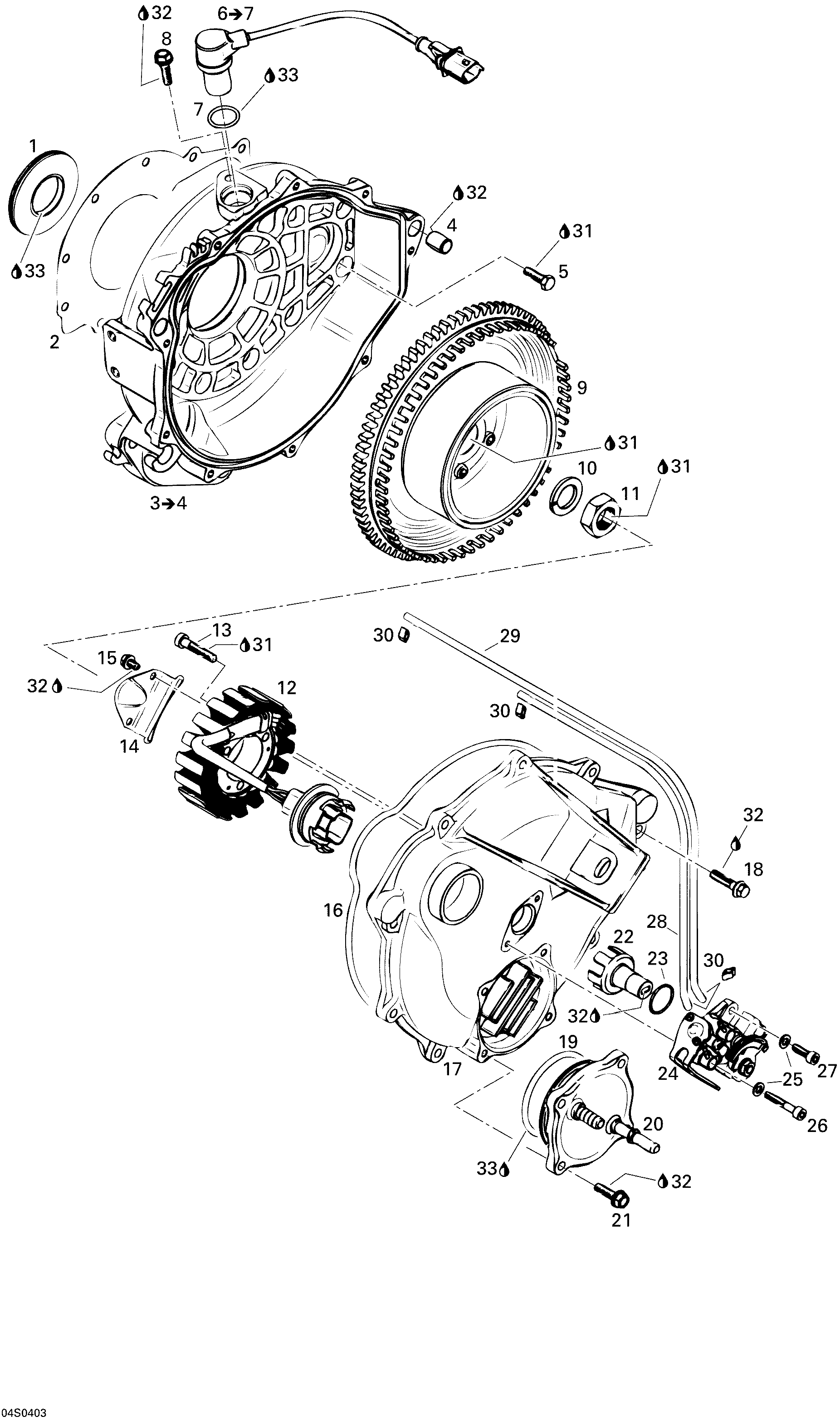

04- Magneto and Oil Pump для BRP GTI LE RFI - 2004
-
№АртикулНазвание
-
1420830749 Oil SealOil Seal
-
2420931470 GasketGasket
-
3420811012 Ignition Housing (Black). Include 3 to 4Ignition Housing (Black). Include 3 to 4
-
4420229153 Dowel TubeDowel Tube
-
5420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
6278001874 Crank Sensor. Includes 6 to 7Crank Sensor. Includes 6 to 7
-
8210361660 Hex Forming Screw M6 X 16Hex Forming Screw M6 X 16
-
9420966564 Flywheel Ass'YFlywheel Ass'Y
-
10420945757 Lock Washer 18 mmLock Washer 18 mm
-
11420942220 Hex Nut M18Hex Nut M18
-
12420887951 Stator Plate Ass'YStator Plate Ass'Y
-
13420640051 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
14420851400 Holding StripHolding Strip
-
15207150844 Hex Screw M5 X 8Hex Screw M5 X 8
-
16420950360 O-RingO-Ring
-
17420811023 Ignition Cover (Black)Ignition Cover (Black)
-
18420240033 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
19420850390 O-RingO-Ring
-
20420811220 Waterchannel CoverWaterchannel Cover
-
21420941253 Taptite Screw M6 X 20Taptite Screw M6 X 20
-
22420837392 Shaft Oil PumpShaft Oil Pump
-
23293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
24420887338 Oil Pump Ass'YOil Pump Ass'Y
-
25420845389 Lock Washer 5 mmLock Washer 5 mm
-
26420940883 Socket Head Screw M5 X 30Socket Head Screw M5 X 30
-
27205051660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
28414413800 Hose (Foot)Hose (Foot)
-
29414413800 Hose (Foot)Hose (Foot)
-
30420256408 ClampClamp
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
33413707000 Molykote 111Molykote 111
