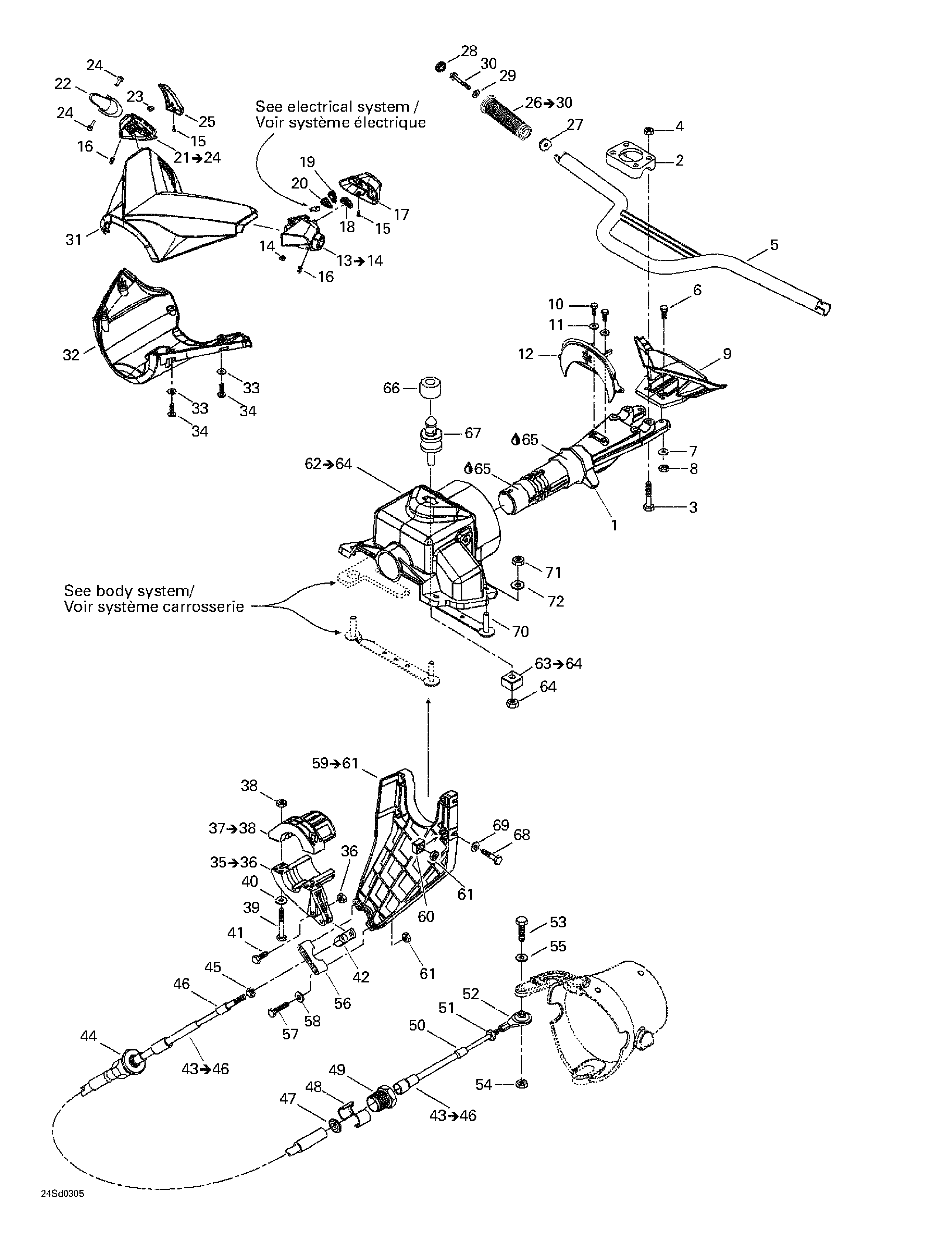

07- Steering System для BRP GTX 4-TEC - 2003

  • №
    Артикул
    Название
  • 1
    277000562400 Steering stem
    Steering stem
  • 2
    277000142 Steering clamp
    Steering clamp
  • 3
    207085060 Hex screw M8 x 20
    Hex screw M8 x 20
  • 4
    232581600 Hex elastic nut M8
    Hex elastic nut M8
  • 5
    277001012 Handle bar
    Handle bar
  • 6
    207063060 Hex screw M6 x 30
    Hex screw M6 x 30
  • 7
    234061600 Flat washer M6
    Flat washer M6
  • 8
    232561600 Hex elastic nut M6
    Hex elastic nut M6
  • 9
    277001146 Handle Pad. AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
    Handle Pad. AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
  • 277001199 Handle Pad. BLUE (B-544) GTX 4-TEC 6125/6126.
    Handle Pad. BLUE (B-544) GTX 4-TEC 6125/6126.
  • 10
    211000036 Hex flanged forming screw 1/4-20 x 1/2''
    Hex flanged forming screw 1/4-20 x 1/2''
  • 11
    234062600 Flat washer M6
    Flat washer M6
  • 12
    277000549 Plate
    Plate
  • 13
    277000954 Housing ass'y. Includes 13 - 14.
    Housing ass'y. Includes 13 - 14.
  • 14
    232860600 Square nut M6
    Square nut M6
  • 15
    209630960 Pan Phillips thread cut screw M3.9 x 9.5
    Pan Phillips thread cut screw M3.9 x 9.5
  • 16
    250000036 Pointed socket head screw M6
    Pointed socket head screw M6
  • 17
    277001025 LH cover housing
    LH cover housing
  • 18
    278001713 Stop knob
    Stop knob
  • 19
    278001714 Mode knob
    Mode knob
  • 20
    278001715 Set knob
    Set knob
  • 21
    277000995 Throttle housing. Includes 21 - 24.
    Throttle housing. Includes 21 - 24.
  • 22
    277001107 Throttle handle
    Throttle handle
  • 23
    232860600 Square nut M6
    Square nut M6
  • 24
    277000381 Pin
    Pin
  • 25
    277001023 Throttle housing cover
    Throttle housing cover
  • 26
    295500691 Grip. Includes 26 - 30.
    Grip. Includes 26 - 30.
  • 28
    277000203 Grip cap
    Grip cap
  • 29
    234062600 Flat washer M6
    Flat washer M6
  • 30
    250000002 Hex screw M6 x 30 (scotch grip)
    Hex screw M6 x 30 (scotch grip)
  • 31
    277000952 Upper steering cover
    Upper steering cover
  • 32
    277001145 Lower steering cover
    Lower steering cover
  • 33
    234051600 Flat washer M5
    Flat washer M5
  • 34
    241141660 Hex flanged screw K40 x 16
    Hex flanged screw K40 x 16
  • 35
    277000518 Steering arm stem. Includes 35 - 36.
    Steering arm stem. Includes 35 - 36.
  • 36
    232561600 Hex elastic nut M6
    Hex elastic nut M6
  • 37
    277000519 Arm thrust. Includes 37 - 38.
    Arm thrust. Includes 37 - 38.
  • 38
    232561600 Hex elastic nut M6
    Hex elastic nut M6
  • 39
    207162560 Hex screw M6 x 25
    Hex screw M6 x 25
  • 40
    234062600 Flat washer M6
    Flat washer M6
  • 41
    211000081 Hex screw M6 x 30
    Hex screw M6 x 30
  • 42
    277001180 Ball joint
    Ball joint
  • 43
    277000949 Steering cable. Includes 43 - 46.
    Steering cable. Includes 43 - 46.
  • 44
    277000782 Ajustment knob
    Ajustment knob
  • 45
    211100056 Hex nut 1/4-28
    Hex nut 1/4-28
  • 46
    277000441 Terminal wiper
    Terminal wiper
  • 47
    293830063 Rubber washer
    Rubber washer
  • 48
    277000783 Half-ring
    Half-ring
  • 49
    277000784 Steering cable lock
    Steering cable lock
  • 50
    277000441 Terminal wiper
    Terminal wiper
  • 51
    211100056 Hex nut 1/4-28
    Hex nut 1/4-28
  • 52
    277000775 Ball joint
    Ball joint
  • 53
    207063560 Hex screw M6 x 35
    Hex screw M6 x 35
  • 54
    232561600 Hex elastic nut M6
    Hex elastic nut M6
  • 55
    234061600 Flat washer M6
    Flat washer M6
  • 56
    277000162 Support thrust
    Support thrust
  • 57
    207065060 Hex screw M6 x 50
    Hex screw M6 x 50
  • 58
    234061600 Flat washer M6
    Flat washer M6
  • 59
    277000516 Cable support. Includes 59 - 61.
    Cable support. Includes 59 - 61.
  • 60
    269500252 Nut housing
    Nut housing
  • 61
    232561600 Hex elastic nut M6
    Hex elastic nut M6
  • 62
    277000898 Steering support. Includes 62 - 64.
    Steering support. Includes 62 - 64.
  • 63
    271001115 Nut housing M10. Includes 63 - 64.
    Nut housing M10. Includes 63 - 64.
  • 64
    232001600 Hex nut M10
    Hex nut M10
  • 65
    293550010 Synthetic grease, 400 g
    Synthetic grease, 400 g
  • 66
    293830078 Rubber pad
    Rubber pad
  • 67
    291001420 Latch stud
    Latch stud
  • 68
    207162060 Hex screw M6 x 20
    Hex screw M6 x 20
  • 69
    234061600 Flat washer M6
    Flat washer M6
  • 70
    277001072 Steering support
    Steering support
  • 71
    232581600 Hex elastic nut M8
    Hex elastic nut M8
  • 72
    234081600 Flat washer M8
    Flat washer M8
