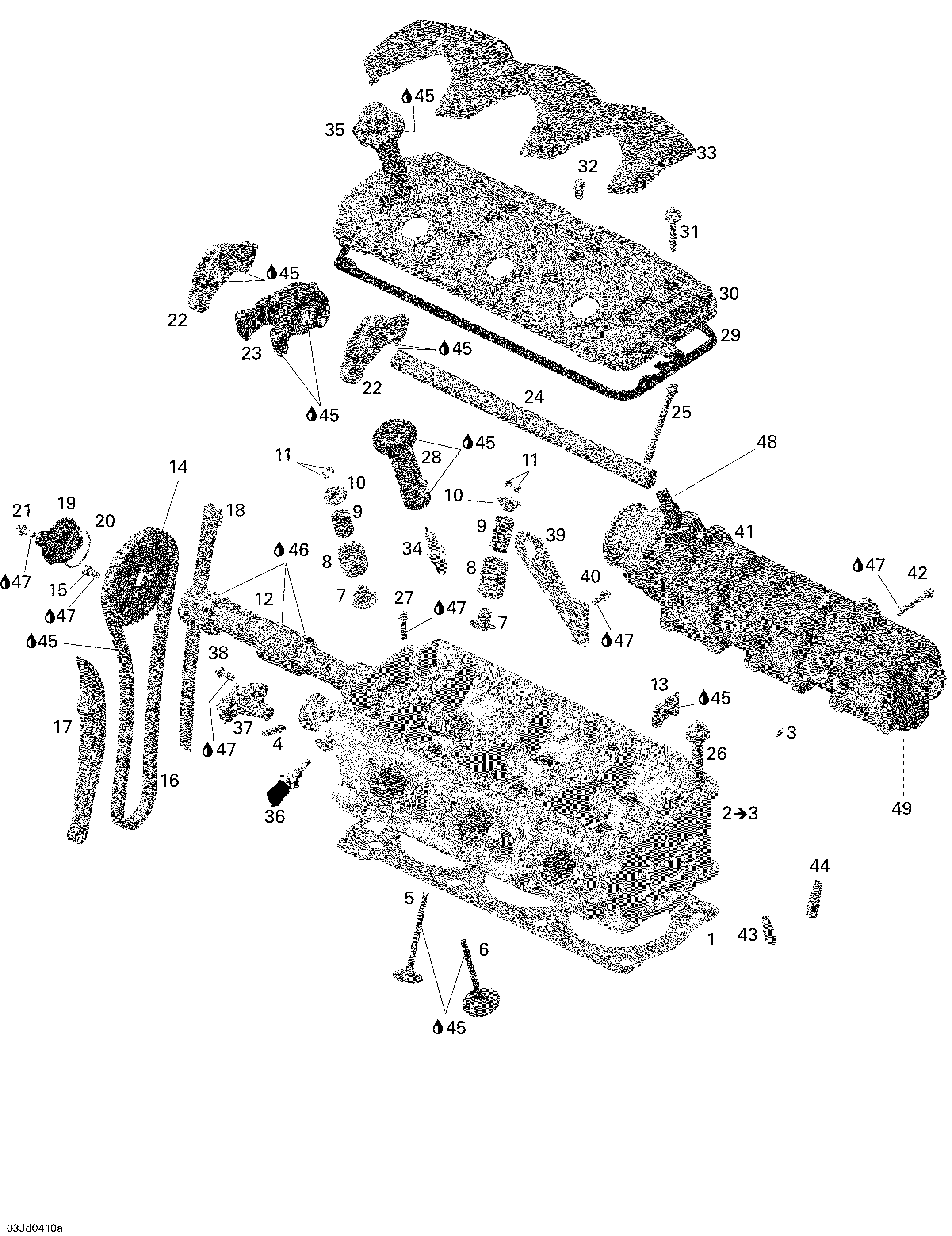

01- Cylinder Head для BRP GTX 4-TEC - 2003

  • №
    Артикул
    Название
  • 1
    420950770 Cylinder head gasket
    Cylinder head gasket
  • 2
    420613975 Cylinder head ass'y. Includes 2 - 3.
    Cylinder head ass'y. Includes 2 - 3.
  • 3
    420929650 Pin 5 x 10
    Pin 5 x 10
  • 4
    420924720 Hose nipple
    Hose nipple
  • 5
    420254682 Exhaust valve 31 mm
    Exhaust valve 31 mm
  • 6
    420254290 Intake valve 38 mm
    Intake valve 38 mm
  • 7
    420630200 Valve stem
    Valve stem
  • 8
    420238180 Valve spring
    Valve spring
  • 9
    420838280 Valve inside spring
    Valve inside spring
  • 10
    420254280 Valve spring retainer
    Valve spring retainer
  • 11
    420253645 Cotter valve
    Cotter valve
  • 12
    420837621 Camshaft
    Camshaft
  • 13
    420851692 Camshaft guide
    Camshaft guide
  • 14
    420254306 Timing gear 38 teeth
    Timing gear 38 teeth
  • 15
    420841339 Socket head screw M6 x 12
    Socket head screw M6 x 12
  • 16
    420898040 Camshaft chain
    Camshaft chain
  • 17
    420236540 Chain tension guide
    Chain tension guide
  • 18
    420236500 Chain guide
    Chain guide
  • 19
    420660100 Camshaft cover
    Camshaft cover
  • 20
    420950870 O-ring
    O-ring
  • 21
    420641048 Torx flanged screw M6 x 16
    Torx flanged screw M6 x 16
  • 22
    420254326 Exhaust rocker-arm
    Exhaust rocker-arm
  • 23
    420254315 Inner rocker-arm
    Inner rocker-arm
  • 24
    420854592 Rocker-arm shaft
    Rocker-arm shaft
  • 25
    420641080 Torx screw M8 x 72
    Torx screw M8 x 72
  • 26
    420641110 Torx-flanged screw M11 x 147
    Torx-flanged screw M11 x 147
  • 27
    420641238 Torx-flanged screw M6 x 25
    Torx-flanged screw M6 x 25
  • 28
    420851750 Spark plug tube
    Spark plug tube
  • 29
    420950820 Valve cover gasket
    Valve cover gasket
  • 30
    420811580 Valve cover
    Valve cover
  • 31
    420641268 Torx-flanged screw M6 x 30
    Torx-flanged screw M6 x 30
  • 32
    420641483 Torx-flanged screw M6 x 10
    Torx-flanged screw M6 x 10
  • 33
    420660162 Valve cover
    Valve cover
  • 34
    707000246 Spark plug NGK DCP-R8E
    Spark plug NGK DCP-R8E
  • 35
    420664020 Ignition coil
    Ignition coil
  • 36
    420222425 Temperature sensor
    Temperature sensor
  • 37
    420664040 Camshaft sensor
    Camshaft sensor
  • 38
    420641048 Torx-flanged screw M6 x 16
    Torx-flanged screw M6 x 16
  • 39
    420851615 Transport bracket PTO
    Transport bracket PTO
  • 40
    420641048 Torx-flanged screw M6 x 16
    Torx-flanged screw M6 x 16
  • 41
    420973697 Exhaust manifold
    Exhaust manifold
  • 42
    420641198 Torx-flanged screw M6 x 45
    Torx-flanged screw M6 x 45
  • 43
    420253922 Inlet valve guide
    Inlet valve guide
  • 44
    420253927 Exhaust valve guide
    Exhaust valve guide
  • 45
    293600039 Engine oil 5W40, 4 strokes, (12 x 1 liter)
    Engine oil 5W40, 4 strokes, (12 x 1 liter)
  • 46
    293550021 Isoflex grease, 50g
    Isoflex grease, 50g
  • 47
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 48
    420922434 Elbow Connector °45
    Elbow Connector °45
  • 49
    420922249 Elbow Connector °90
    Elbow Connector °90
