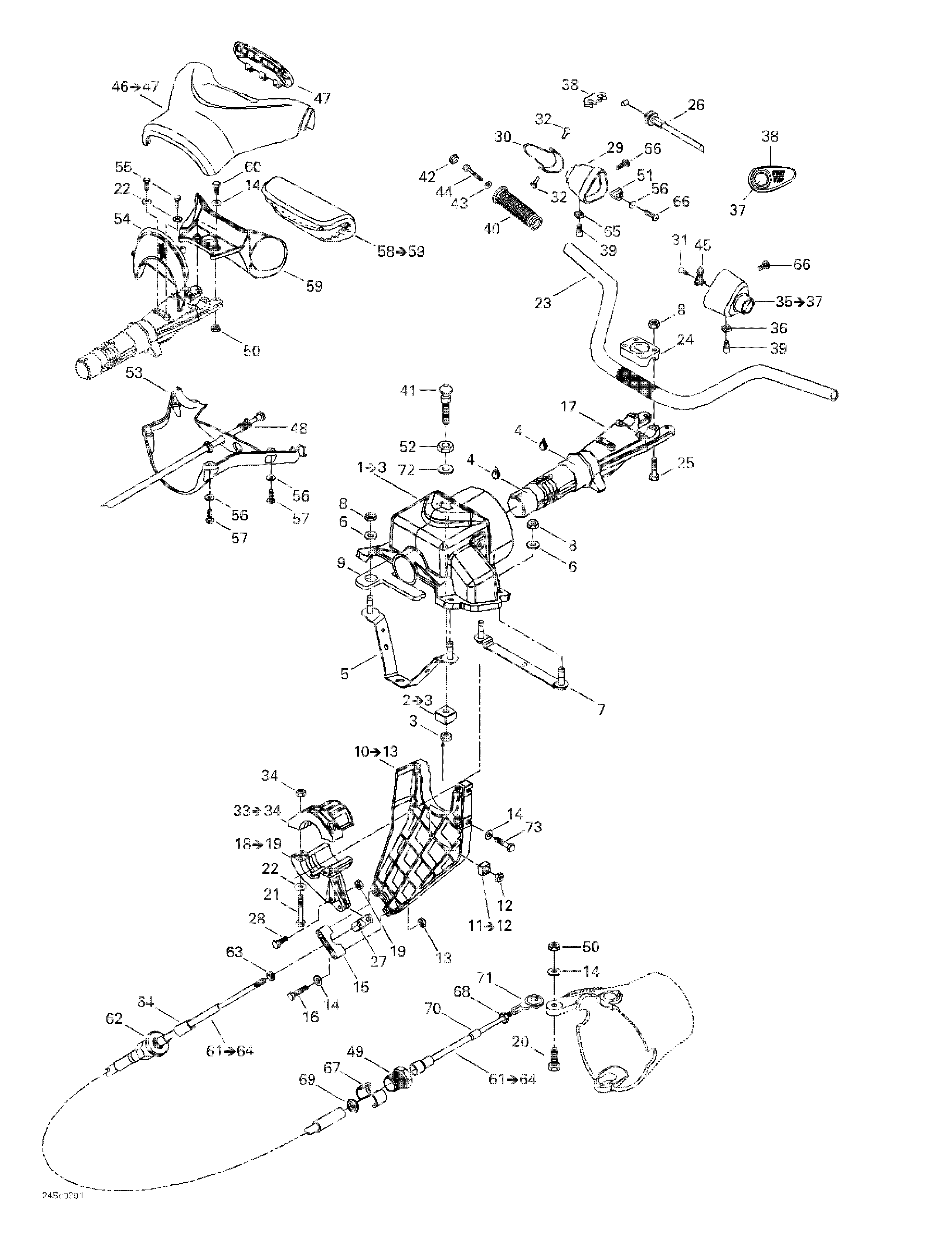

07- Steering System для BRP GTI LE - 2003
-
№АртикулНазвание
-
1277000515 Steering Support. Includes 1 - 3.Steering Support. Includes 1 - 3.
-
2271000598 Nut Housing. Includes 2 - 3.Nut Housing. Includes 2 - 3.
-
3232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
4293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
5291001614 Collector SupportCollector Support
-
6234081600 Flat Washer 8 mmFlat Washer 8 mm
-
7277001000 Steering SupportSteering Support
-
8232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
9293250068 GasketGasket
-
10277000516 Cable Support. Includes 10 - 13.Cable Support. Includes 10 - 13.
-
11269500252 Nut Housing. Includes 11 - 12.Nut Housing. Includes 11 - 12.
-
12232061600 Hex. Nut M6Hex. Nut M6
-
13232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15277000162 Thrust SupportThrust Support
-
16207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
17277000562 Steering StemSteering Stem
-
18277000518 Steering Stem Arm. Includes 18 - 19.Steering Stem Arm. Includes 18 - 19.
-
19232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
20207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
21207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
22234062600 Flat Washer 6 mmFlat Washer 6 mm
-
23277000824 Handle BarHandle Bar
-
24277000142 Steering ClampSteering Clamp
-
25207085060 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
26277001064 Throttle CableThrottle Cable
-
27277001180 Ball JointBall Joint
-
28211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
29277000872 Throttle Handle HousingThrottle Handle Housing
-
30277001107 Throttle HandleThrottle Handle
-
31209631360 Phillips Tapping ScrewPhillips Tapping Screw
-
32277000381 PinPin
-
33277000519 Thrust Arm. Includes 33 - 34.Thrust Arm. Includes 33 - 34.
-
34232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
35277000869 LH Handle Housing Ass'y. Includes 35 - 37.LH Handle Housing Ass'y. Includes 35 - 37.
-
36232860600 Square Nut M6Square Nut M6
-
37277000306 Switch KnobSwitch Knob
-
38277000279 Lock TabLock Tab
-
39250000036 Set Socket Screw M6 x 16Set Socket Screw M6 x 16
-
40295500691 Handle Grip (Black)Handle Grip (Black)
-
41291000689 Stud LatchStud Latch
-
42277000203 Grip Cap (Black)Grip Cap (Black)
-
43234062600 Flat Washer 6 mmFlat Washer 6 mm
-
44250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
45277000845 Retainer PlateRetainer Plate
-
46277000833 Upper Steering Cover. Includes 46 - 47. GTI.Upper Steering Cover. Includes 46 - 47. GTI.
-
277000941 Upper Steering Cover. GTI LE.Upper Steering Cover. GTI LE.
-
47277000823 Steering PlateSteering Plate
-
48270000545 Choke CableChoke Cable
-
49277000784 Cable LockCable Lock
-
50232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
51293450153 InsertInsert
-
52232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
53277000625 Lower Steering Cover. GTI.Lower Steering Cover. GTI.
-
277000943 Lower Steering Cover. GTI LE.Lower Steering Cover. GTI LE.
-
54277000549 Plate (Black)Plate (Black)
-
55211000036 Hex. Forming ScrewHex. Forming Screw
-
56234051600 Flat Washer 5 mmFlat Washer 5 mm
-
57241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
58277001181 Handle Pad (Violet). Includes 58 - 59. GTI.Handle Pad (Violet). Includes 58 - 59. GTI.
-
277001183 Handle Pad (Earthen Clay). GTI LE.Handle Pad (Earthen Clay). GTI LE.
-
277001206 Handle Pad (Atlantic Blue) (Europe). GTI.Handle Pad (Atlantic Blue) (Europe). GTI.
-
59277000687 Pad SupportPad Support
-
60207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
61277001010 Steering Cable Ass'y. Includes 61 - 64.Steering Cable Ass'y. Includes 61 - 64.
-
62277000782 Knob AdjusterKnob Adjuster
-
63211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
64277000441 Terminal WiperTerminal Wiper
-
65232860600 Square Nut M6Square Nut M6
-
66209630960 Tapping Phillips ScrewTapping Phillips Screw
-
67277000783 Half RingHalf Ring
-
68211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
69293830063 Rubber WasherRubber Washer
-
70277000441 Terminal WiperTerminal Wiper
-
71277000775 Ball JointBall Joint
-
72234002600 Flat Washer 10 mmFlat Washer 10 mm
-
73207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
