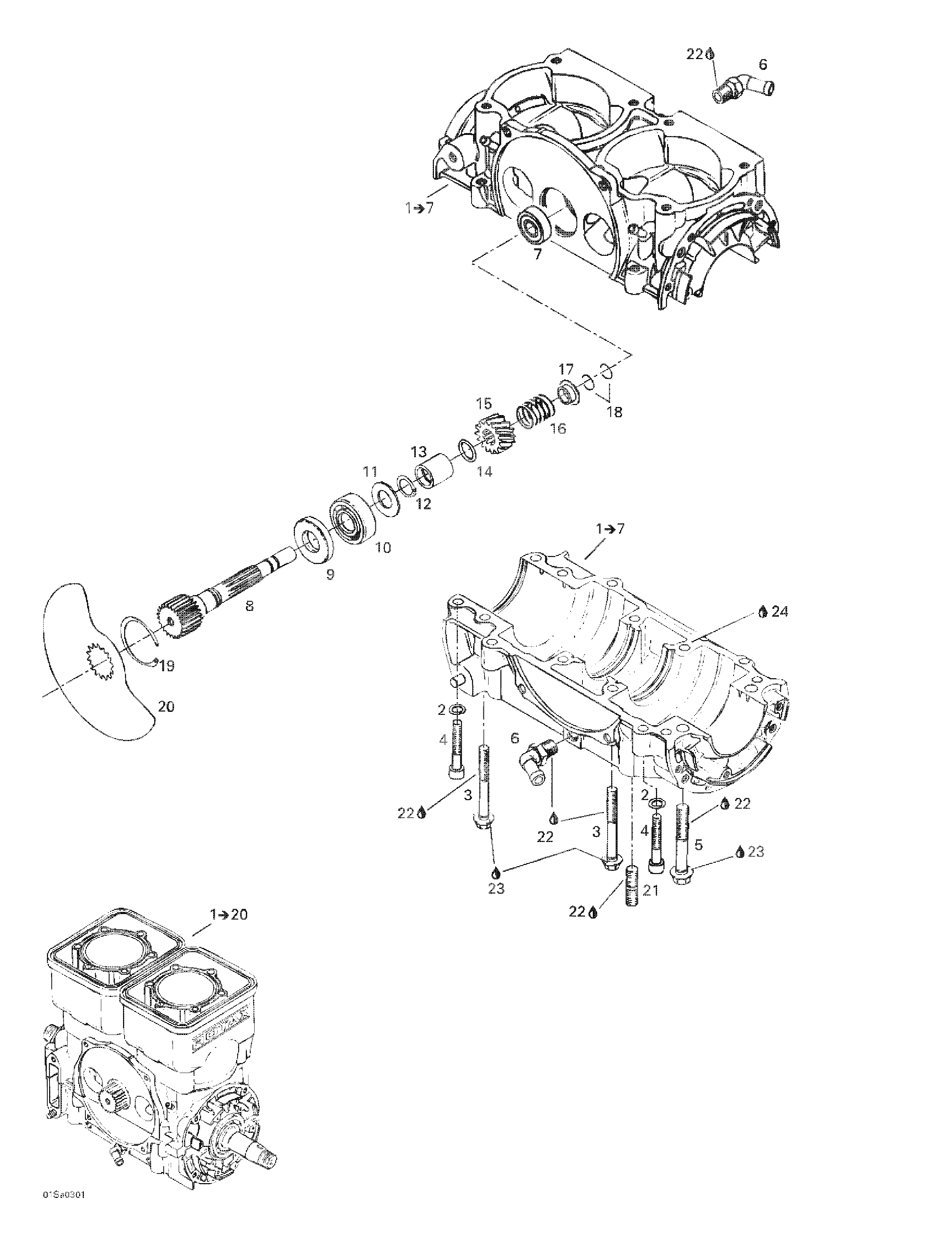

01- Crankcase, Rotary Valve для BRP GTI LE - 2003

‹-+›
  • №
    Артикул
    Название
  • 1
    420071703 Short Block Ass'y (Silver). Includes 1 - 20.
    Short Block Ass'y (Silver). Includes 1 - 20.
  • 1
    420887199 Crankcase Ass'y > (Silver). Includes 1 - 7.
    Crankcase Ass'y > (Silver). Includes 1 - 7.
  • 2
    234180602 Lock Spring Washer 8 mm
    Lock Spring Washer 8 mm
  • 3
    420841998 Hex. Flanged Screw M8 x 68.5
    Hex. Flanged Screw M8 x 68.5
  • 4
    205084560 Socket Head Screw M8 x 45
    Socket Head Screw M8 x 45
  • 5
    420941333 Hex. Flanged Screw M10 x 73.5
    Hex. Flanged Screw M10 x 73.5
  • 6
    420922245 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 7
    420932797 Ball Bearing 6201-Z
    Ball Bearing 6201-Z
  • 8
    420837252 Rotary Valve Shaft
    Rotary Valve Shaft
  • 9
    420930580 Oil Seal
    Oil Seal
  • 10
    405406400 Ball Bearing 6203
    Ball Bearing 6203
  • 11
    420227439 Shim
    Shim
  • 12
    420845450 Lock Ring
    Lock Ring
  • 13
    420847282 Spacer Bushing
    Spacer Bushing
  • 14
    293300024 O-Ring
    O-Ring
  • 15
    420935735 Sprocket 14 Teeth
    Sprocket 14 Teeth
  • 16
    420938810 Spring
    Spring
  • 17
    420827430 Spring Seat
    Spring Seat
  • 18
    420845160 Circlip
    Circlip
  • 19
    420845260 Lock Ring
    Lock Ring
  • 20
    420924502 Rotary Valve (159 Deg.)
    Rotary Valve (159 Deg.)
  • 21
    290940798 Stud M10 x 25 (PTO)
    Stud M10 x 25 (PTO)
  • 420840290 Stud M10 x 18
    Stud M10 x 18
  • 22
    413702700 Loctite 515, 50 ml
    Loctite 515, 50 ml
  • 23
    413707000 Molykote 111
    Molykote 111
  • 24
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
  • 25
    420886319 Engine Gasket Set (Not Shown)
    Engine Gasket Set (Not Shown)
