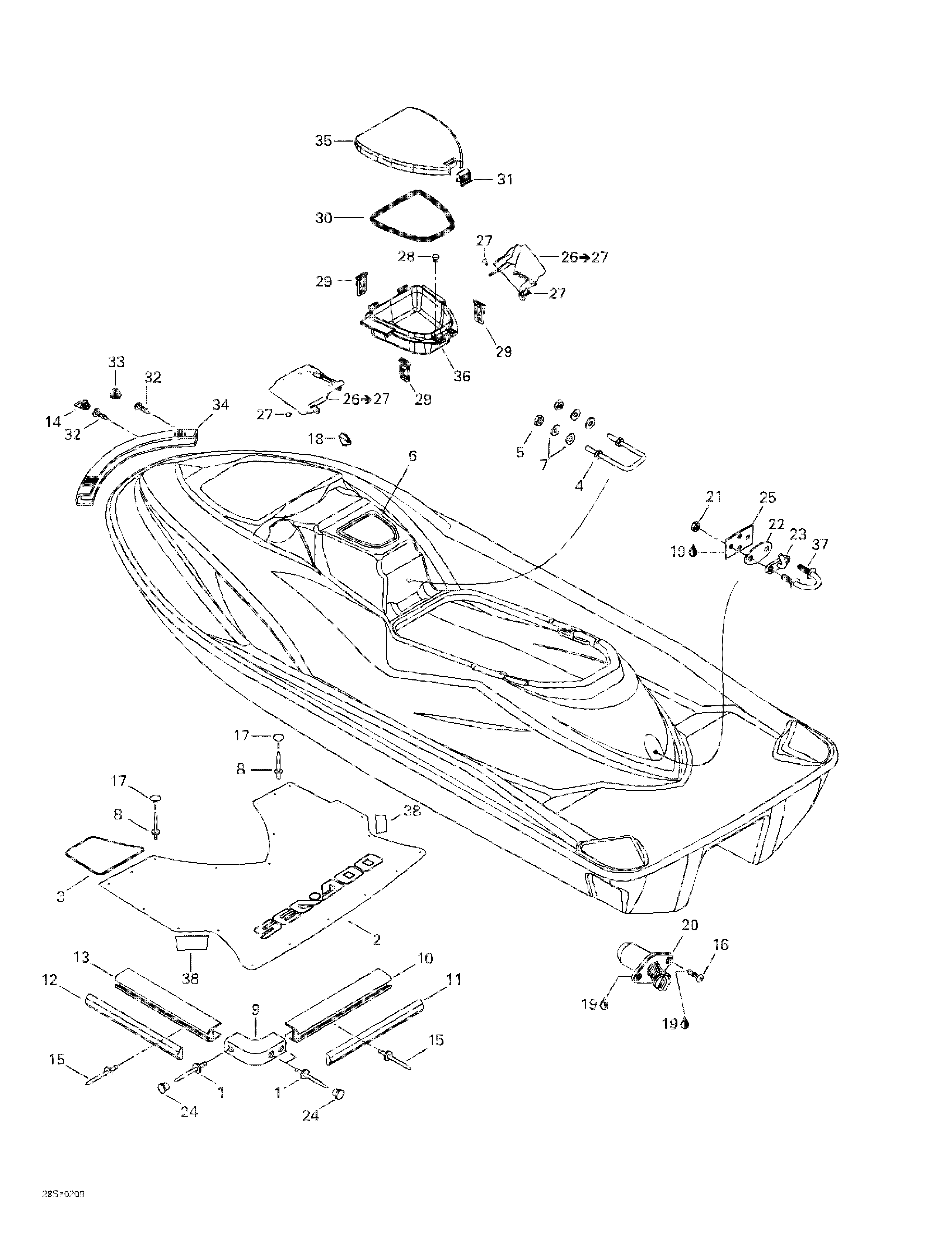

09- Body, Rear View для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
2291001584 Rear Carpet (Black)Rear Carpet (Black)
-
3291001665 R.H. Rear Carpet (Black)R.H. Rear Carpet (Black)
-
291001666 L.H. Rear Carpet (Black)L.H. Rear Carpet (Black)
-
4291001527 U ClampU Clamp
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6293250099 GasketGasket
-
7234062600 Flat Washer 6 mmFlat Washer 6 mm
-
8293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
9291001505 Bumper Corner (Black)Bumper Corner (Black)
-
10291001483 Rear Bumper (Black)Rear Bumper (Black)
-
11291001521 Rear Bumper Trim (Black)Rear Bumper Trim (Black)
-
12291001520 Side Bumper Trim (Black)Side Bumper Trim (Black)
-
13291001606 Side Bumper (Black)Side Bumper (Black)
-
14291001040 Bumper Plug (Black)Bumper Plug (Black)
-
15293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
16211000021 Phillips ScrewPhillips Screw
-
17293000014 Snap Cap (Black)Snap Cap (Black)
-
18291001730 SpacerSpacer
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000685 Drain PlugDrain Plug
-
21232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291001386 Finition Plate (Black)Finition Plate (Black)
-
23291001232 HookHook
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291001387 Retainer PlateRetainer Plate
-
26291001649 R.H. Grill Ass'y (Black). Includes 26 - 27.R.H. Grill Ass'y (Black). Includes 26 - 27.
-
291001650 L.H. Grill Ass'y (Black)L.H. Grill Ass'y (Black)
-
27293730010 Dart (Black)Dart (Black)
-
28293830005 Rubber PlugRubber Plug
-
29269500820 Retainer LatchRetainer Latch
-
30293250100 GasketGasket
-
31269500719 LatchLatch
-
32211000037 Phillips Screw 10-14 x 7/8''Phillips Screw 10-14 x 7/8''
-
33291001519 Bumper Plug (Black)Bumper Plug (Black)
-
34291001035 Nose Bumper (Black)Nose Bumper (Black)
-
35269500928 Box DoorBox Door
-
36269500717 Gloves BoxGloves Box
-
37292000011 U-ClampU-Clamp
-
38291001588 Anti-Skid (White)Anti-Skid (White)
