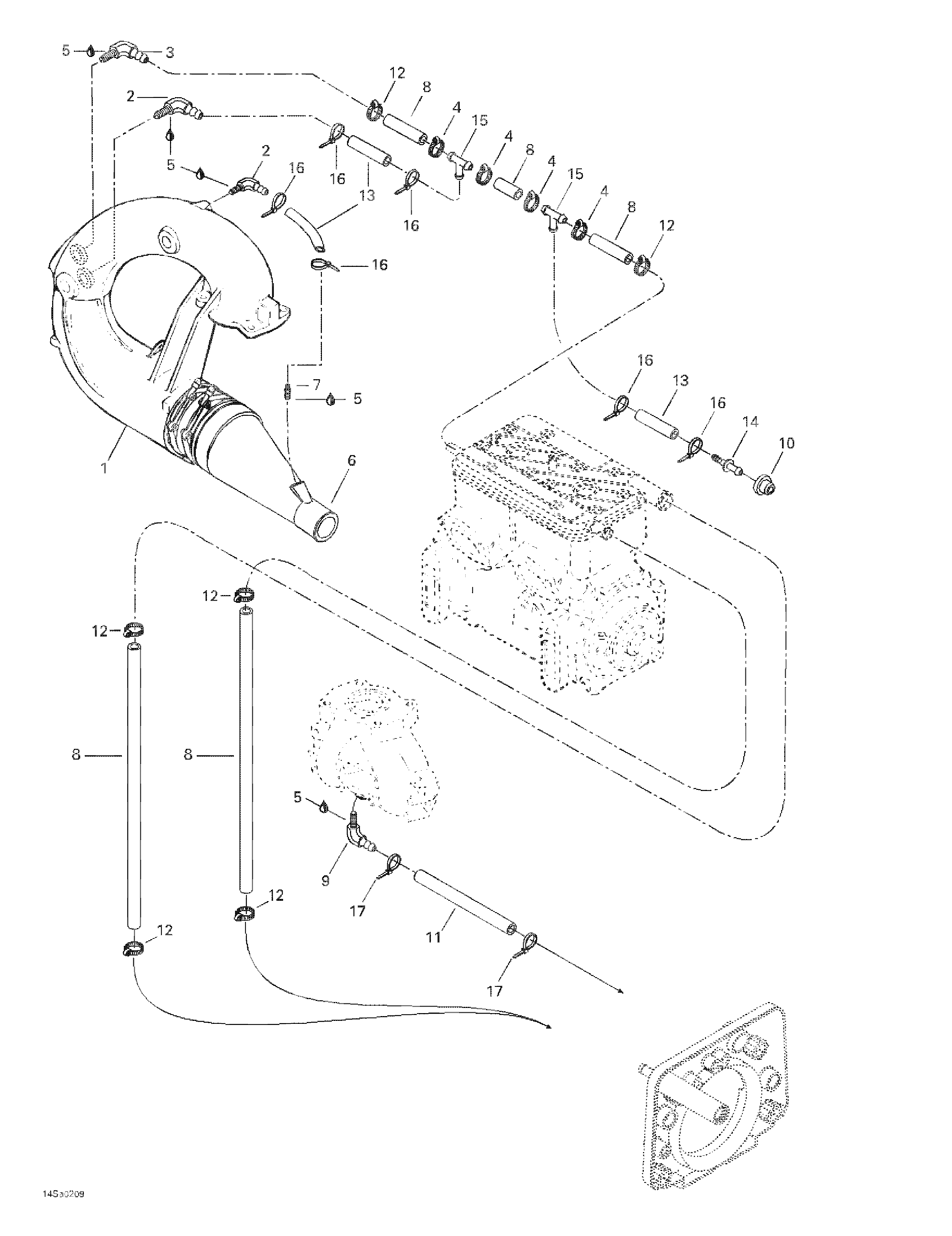

01- Cooling System для BRP GTI, 5558/5559/6116 - 2002

‹-+›
  • №
    Артикул
    Название
  • 1
    274000980 Tuned Pipe Ass'y
    Tuned Pipe Ass'y
  • 2
    293710018 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 3
    293700023 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 4
    293650012 Oetiker Clamp
    Oetiker Clamp
  • 5
    293800013 Loctite 56765, Pipe Sealant, 250 ml
    Loctite 56765, Pipe Sealant, 250 ml
  • 6
    274000488 Exhaust Cone Ass'y. Includes 6 - 7.
    Exhaust Cone Ass'y. Includes 6 - 7.
  • 7
    293710037 Male Connector
    Male Connector
  • 8
    276000001 Hose 12.5 mm (Meter)
    Hose 12.5 mm (Meter)
  • 9
    293700016 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 10
    293720029 Grommet
    Grommet
  • 11
    275000007 Hose 8 mm (Meter)
    Hose 8 mm (Meter)
  • 12
    293650130 Tridon Clamp
    Tridon Clamp
  • 13
    276000048 Hose 6 mm (Meter)
    Hose 6 mm (Meter)
  • 14
    293710039 Straight Fitting
    Straight Fitting
  • 15
    293710052 ''T'' Fitting
    ''T'' Fitting
  • 16
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 17
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
