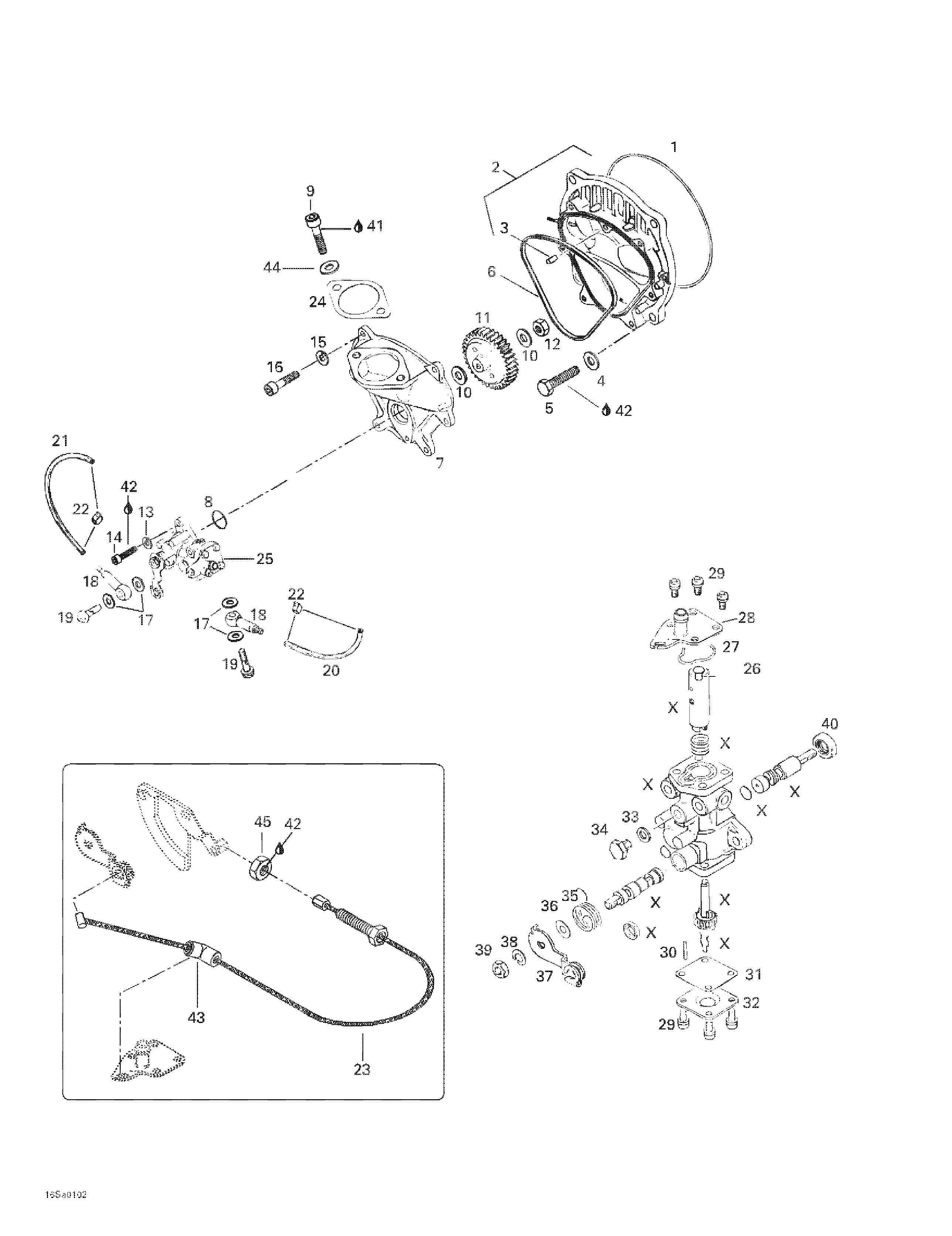

02- Oil Injection System, Oil Pump, Rotary Valve для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1293300023 O-ringO-ring
-
2290811252 Rotary Valve. Includes 2 - 3.Rotary Valve. Includes 2 - 3.
-
3420929650 Drive PinDrive Pin
-
4290250313 Washer 8.4 mmWasher 8.4 mm
-
5290940598 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
6290850160 Rubber RingRubber Ring
-
7290811193 Oil Pump FlangeOil Pump Flange
-
8293300018 O-RingO-Ring
-
9205587560 Socket Head Screw M8 x 75. (Scotch Grip)Socket Head Screw M8 x 75. (Scotch Grip)
-
10290927945 Flat Washer 6.2 mmFlat Washer 6.2 mm
-
11290935945 Oil Pump Gear 41 TeethOil Pump Gear 41 Teeth
-
12232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
13290845389 Lock WasherLock Washer
-
14205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
15290845381 Lock Washer 6 mmLock Washer 6 mm
-
16205062060 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
17404146600 Seal WasherSeal Washer
-
18290956010 Check ValveCheck Valve
-
19404146800 Banjo Screw M6 x 16Banjo Screw M6 x 16
-
20414413800 Oil Line (MAG Side)Oil Line (MAG Side)
-
21414413800 Oil Line (PTO Side)Oil Line (PTO Side)
-
22290853843 Clamp 3.5 mmClamp 3.5 mm
-
23270000540 Injection CableInjection Cable
-
24293250134 GasketGasket
-
25290996725 Oil Pump Ass'y. Includes 25 - 40.Oil Pump Ass'y. Includes 25 - 40.
-
26290256085 RetainerRetainer
-
27293300019 O-RingO-Ring
-
28290956340 Pump Upper PlatePump Upper Plate
-
29420241975 Screw M4 x 8 with Lock WasherScrew M4 x 8 with Lock Washer
-
30290929900 Stop PinStop Pin
-
31420850200 GasketGasket
-
32290956031 Pump Lower PlatePump Lower Plate
-
33420227505 GasketGasket
-
34290841583 Hex. Screw M6 x 8Hex. Screw M6 x 8
-
36290227665 Washer 6.2 mmWasher 6.2 mm
-
37290848162 Lever ControlLever Control
-
38290845381 Lock Washer 6 mmLock Washer 6 mm
-
39290242623 Hex. Nut M6Hex. Nut M6
-
41293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43270000187 Cable GuideCable Guide
-
44234081600 Washer 8 mmWasher 8 mm
-
45232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
46290886319 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
