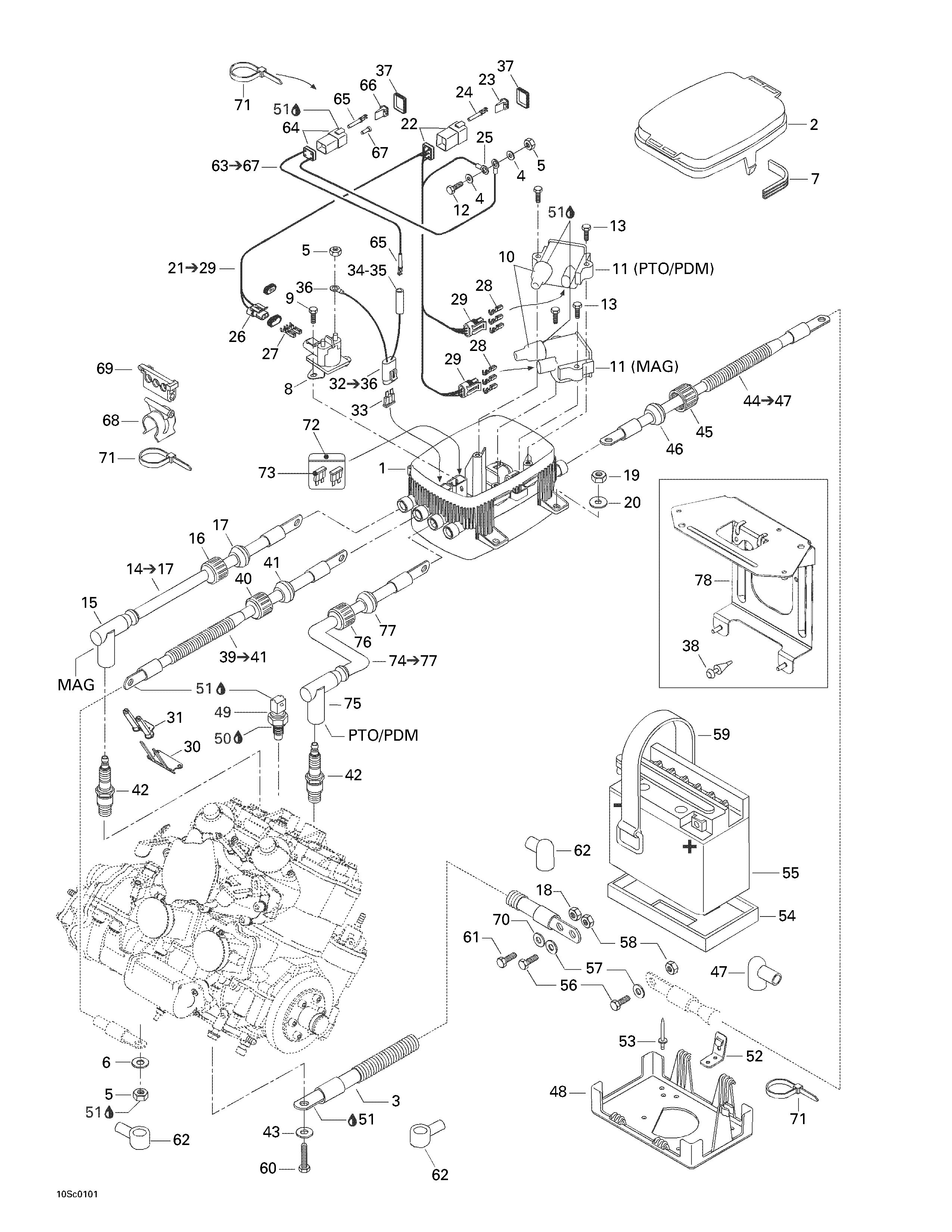

10- Rear Electrical Box для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1278001504 Electric Box BaseElectric Box Base
-
2278001433 Electric Box CoverElectric Box Cover
-
3278001462 Ground Cable Ass'yGround Cable Ass'y
-
4234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6234061600 Flat Washer 6 mmFlat Washer 6 mm
-
7278001173 GasketGasket
-
8278001641 Starter RelayStarter Relay
-
9210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
10278001470 Cap ProtectorCap Protector
-
11278001451 Ignition CoilIgnition Coil
-
12207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
13209463840 Hex. Tapping Screw M6.3 x 38Hex. Tapping Screw M6.3 x 38
-
14278001454 Spark Plug Wire (MAG). Includes 14 - 17.Spark Plug Wire (MAG). Includes 14 - 17.
-
16278000100 Electric Wire CapElectric Wire Cap
-
17278000682 Grommet (Gray)Grommet (Gray)
-
18232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
19232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
20234062600 Flat Washer 6 mmFlat Washer 6 mm
-
21278001458 Electric Box Harness. Includes 21 - 29.Electric Box Harness. Includes 21 - 29.
-
22270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
23278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
24278000631 Male TerminalMale Terminal
-
25278001392 Open BarrelOpen Barrel
-
26278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
27278001114 Female TerminalFemale Terminal
-
28278001468 Female TerminalFemale Terminal
-
29278001467 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
30278001662 Ground PlateGround Plate
-
31278001512 InsulatorInsulator
-
32278001453 Fuse Harness (30 Amperes). Includes 32 - 36.Fuse Harness (30 Amperes). Includes 32 - 36.
-
33410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
34515175259 Joint HousingJoint Housing
-
35515175260 Female TerminalFemale Terminal
-
36278001392 Open BarrelOpen Barrel
-
37293200030 GasketGasket
-
38293830005 Rubber PlugRubber Plug
-
39278001091 Starter Cable (Red). Includes 39 - 41.Starter Cable (Red). Includes 39 - 41.
-
40278000100 Electrical Wire CapElectrical Wire Cap
-
41278000098 Grommet (Black)Grommet (Black)
-
42278001650 Spark Plug NGKSpark Plug NGK
-
43234001600 Flat Washer 10 mmFlat Washer 10 mm
-
44278001522 Cable Red (battery). Includes 44 - 47.Cable Red (battery). Includes 44 - 47.
-
45278000100 Electric Wire CapElectric Wire Cap
-
46278000098 Grommet (Black)Grommet (Black)
-
47278000020 Wire Cap (Battery)Wire Cap (Battery)
-
48278001430 Battery SupportBattery Support
-
49278001016 Temperature SensorTemperature Sensor
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
51293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
52293850029 Clip StrapClip Strap
-
53293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
54278001234 Battery Lower PadBattery Lower Pad
-
55278000712 BatteryBattery
-
56211000045 Hex. ScrewHex. Screw
-
57211200018 Flat Washer 6 mmFlat Washer 6 mm
-
58211100022 Nut M6Nut M6
-
59293850021 Rubber StrapRubber Strap
-
60207302060 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
61207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
62278000020 Wire Cap (Battery)Wire Cap (Battery)
-
63278001494 Electric Box Harness (Power). Includes 63 - 67.Electric Box Harness (Power). Includes 63 - 67.
-
64278001477 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
65515175261 Male TerminalMale Terminal
-
66278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
67293000052 Sealing CapSealing Cap
-
68278000559 Collar SupportCollar Support
-
69278001597 Wire SupportWire Support
-
70234061600 Flat Washer 6 mmFlat Washer 6 mm
-
71293750002 Locking Tie 142 mmLocking Tie 142 mm
-
73278001443 Fuse (25 Amperes)Fuse (25 Amperes)
-
278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
74278001521 Spark Plug Wire (PTO). Includes 74 - 77.Spark Plug Wire (PTO). Includes 74 - 77.
-
76278000100 Electric Wire CapElectric Wire Cap
-
77278000682 Grommet (Gray)Grommet (Gray)
-
78278001615 Box SupportBox Support
