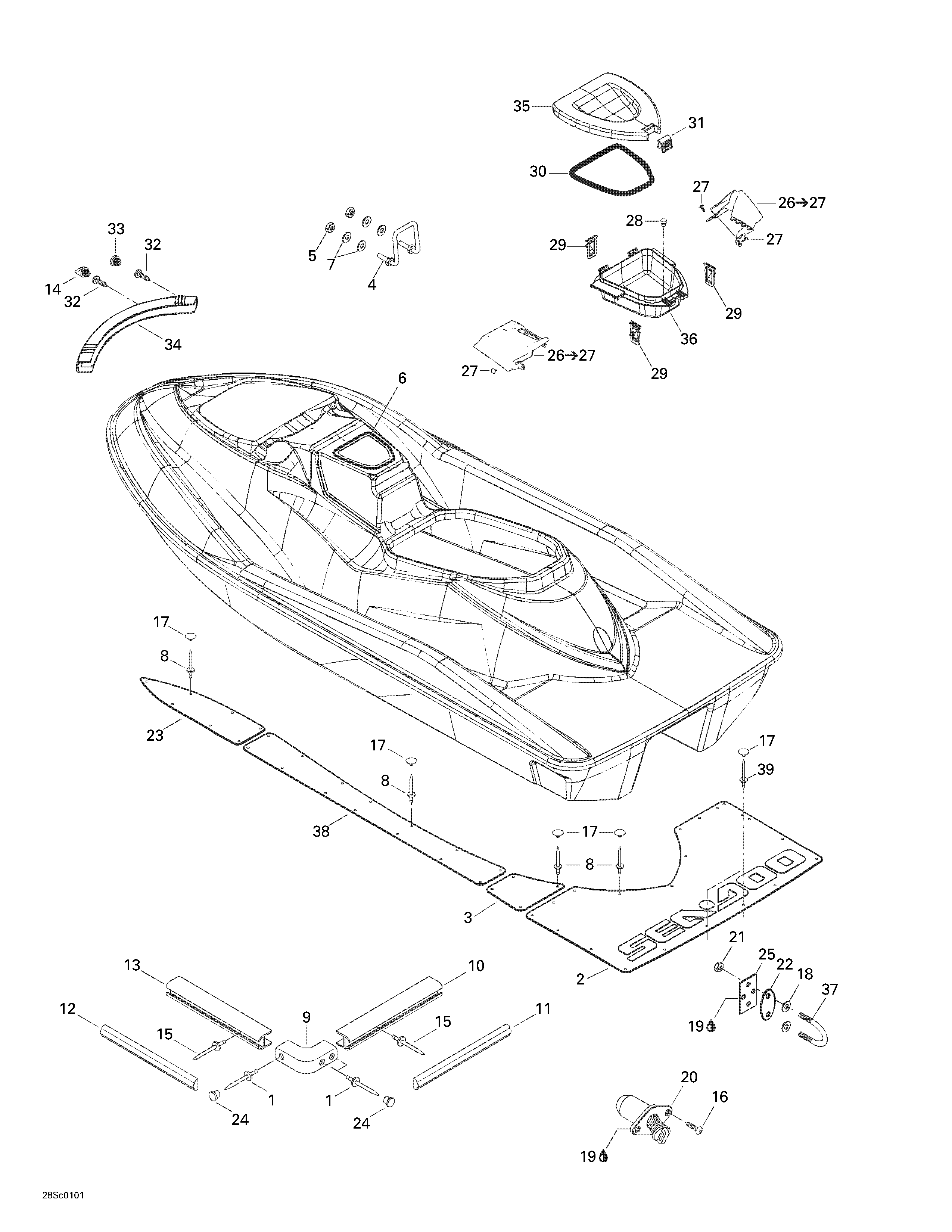

09- Body, Rear View для BRP RX DI, 5534/5535/5536/5537 - 2001

  • №
    Артикул
    Название
  • 1
    293150013 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2
    291001381 Rear Carpet (Black)
    Rear Carpet (Black)
  • 3
    291001464 R.H. Rear Carpet (Black)
    R.H. Rear Carpet (Black)
  • 291001465 L.H. Rear Carpet (Black)
    L.H. Rear Carpet (Black)
  • 4
    291001436 U-Clamp
    U-Clamp
  • 5
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 6
    293250099 Gasket
    Gasket
  • 7
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 8
    293150036 Pop Rivet 1/8''
    Pop Rivet 1/8''
  • 9
    291001505 Bumper Corner (Black)
    Bumper Corner (Black)
  • 10
    291001483 Rear Bumper (Black)
    Rear Bumper (Black)
  • 11
    291001540 Rear Bumper Trim (Blue). RX DI 5534/5535.
    Rear Bumper Trim (Blue). RX DI 5534/5535.
  • 291001537 Rear Bumper Trim (Yellow). RX DI 5536/5537.
    Rear Bumper Trim (Yellow). RX DI 5536/5537.
  • 12
    291001539 Side Bumper Trim (Blue). RX DI 5534/5535.
    Side Bumper Trim (Blue). RX DI 5534/5535.
  • 291001536 Side Bumper Trim (Yellow). RX DI 5536/5537.
    Side Bumper Trim (Yellow). RX DI 5536/5537.
  • 13
    291001481 Side Bumper (Black)
    Side Bumper (Black)
  • 14
    291001040 Bumper Plug (Black)
    Bumper Plug (Black)
  • 15
    293150005 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 16
    211000021 Phillips Screw
    Phillips Screw
  • 17
    293000014 Snap Cap (Black)
    Snap Cap (Black)
  • 18
    293050001 Washer
    Washer
  • 19
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 20
    292000685 Drain Plug
    Drain Plug
  • 21
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 22
    291001386 Finition Plate (Black)
    Finition Plate (Black)
  • 23
    291001384 R.H. Front Carpet (Black)
    R.H. Front Carpet (Black)
  • 291001385 L.H. Front Carpet (Black)
    L.H. Front Carpet (Black)
  • 24
    291000339 Bumper Plug (Black)
    Bumper Plug (Black)
  • 25
    291001387 Retainer Plate
    Retainer Plate
  • 26
    291001649 R.H. Grill Ass'y (Black). Includes 26 - 27.
    R.H. Grill Ass'y (Black). Includes 26 - 27.
  • 291001650 L.H. Grill Ass'y (Black)
    L.H. Grill Ass'y (Black)
  • 27
    293730010 Dart (Black)
    Dart (Black)
  • 28
    293830005 Rubber Plug
    Rubber Plug
  • 29
    269500820 Retainer Latch
    Retainer Latch
  • 30
    293250100 Gasket
    Gasket
  • 31
    269500719 Latch
    Latch
  • 32
    211000037 Phillips Screw 10-14 x 7/8''
    Phillips Screw 10-14 x 7/8''
  • 33
    291001519 Bumper Plug (Black)
    Bumper Plug (Black)
  • 34
    291001035 Nose Bumper (Black)
    Nose Bumper (Black)
  • 35
    269500928 Box Door
    Box Door
  • 36
    269500717 Gloves Box
    Gloves Box
  • 37
    292000011 U-Clamp
    U-Clamp
  • 38
    291001382 R.H. Center Carpet (Black)
    R.H. Center Carpet (Black)
  • 291001383 L.H. Center Carpet (Black)
    L.H. Center Carpet (Black)
  • 39
    293150016 Pop Rivet 1/8''
    Pop Rivet 1/8''
