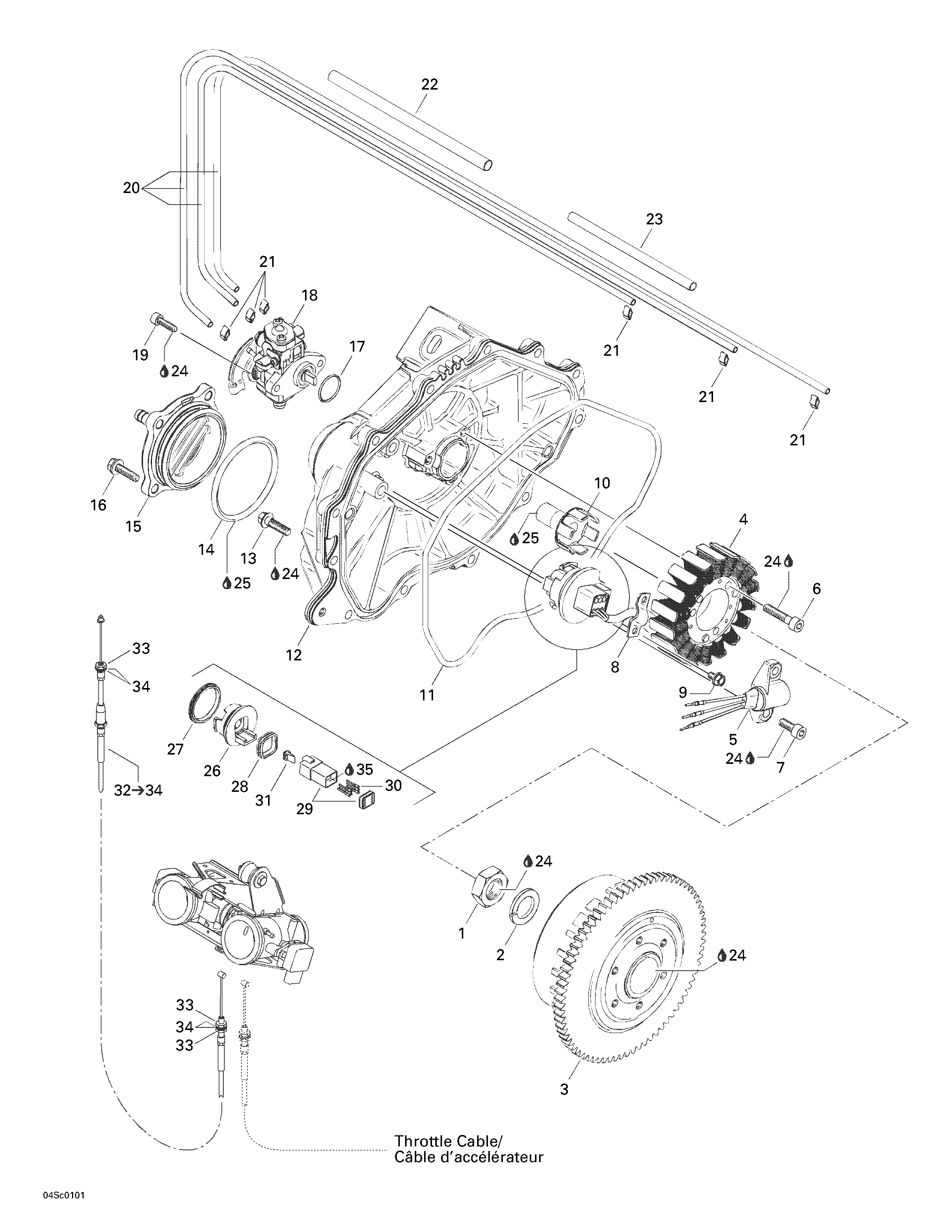

03- Magneto, Oil Pump для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1420942220 Hex. Nut M18 x 1.5Hex. Nut M18 x 1.5
-
2290945757 Lock Washer 18 mmLock Washer 18 mm
-
3290966820 Flywheel HubFlywheel Hub
-
4290888651 Stator Plate Ass'yStator Plate Ass'y
-
5290966760 Sensor Ass'ySensor Ass'y
-
6290640051 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
7420940566 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
8290853080 Retainer PlateRetainer Plate
-
9207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
10290837395 Oil Pump ShaftOil Pump Shaft
-
11290931690 O-RingO-Ring
-
12290811421 Ignition CoverIgnition Cover
-
13290240033 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
14290850390 O-RingO-Ring
-
15290811225 Waterchannel CoverWaterchannel Cover
-
16290941253 Screw M6 x 20Screw M6 x 20
-
17293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
18290888540 Oil Pump Ass'yOil Pump Ass'y
-
19205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
20414413800 Hose (foot)Hose (foot)
-
21290851503 ClampClamp
-
22290960205 Protector HoseProtector Hose
-
23290260465 Protector HoseProtector Hose
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550014 Grease, Super Lube #823-28. RX DI 5536/5537. .Grease, Super Lube #823-28. RX DI 5536/5537. .
-
26270000138 AdaptorAdaptor
-
27293300033 GasketGasket
-
28293200030 GasketGasket
-
29270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
30278000631 Male TerminalMale Terminal
-
31278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
32270000459 Injection Cable. Includes 32 - 34.Injection Cable. Includes 32 - 34.
-
33232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
34234061600 Flat Washer 6 mmFlat Washer 6 mm
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36290888134 Engine Gasket Set (Not Shown). RX DI 5536/5537. .Engine Gasket Set (Not Shown). RX DI 5536/5537. .
-
37290888139 Cylinder Gasket Set (Not Shown). RX DI 5536/5537. .Cylinder Gasket Set (Not Shown). RX DI 5536/5537. .
