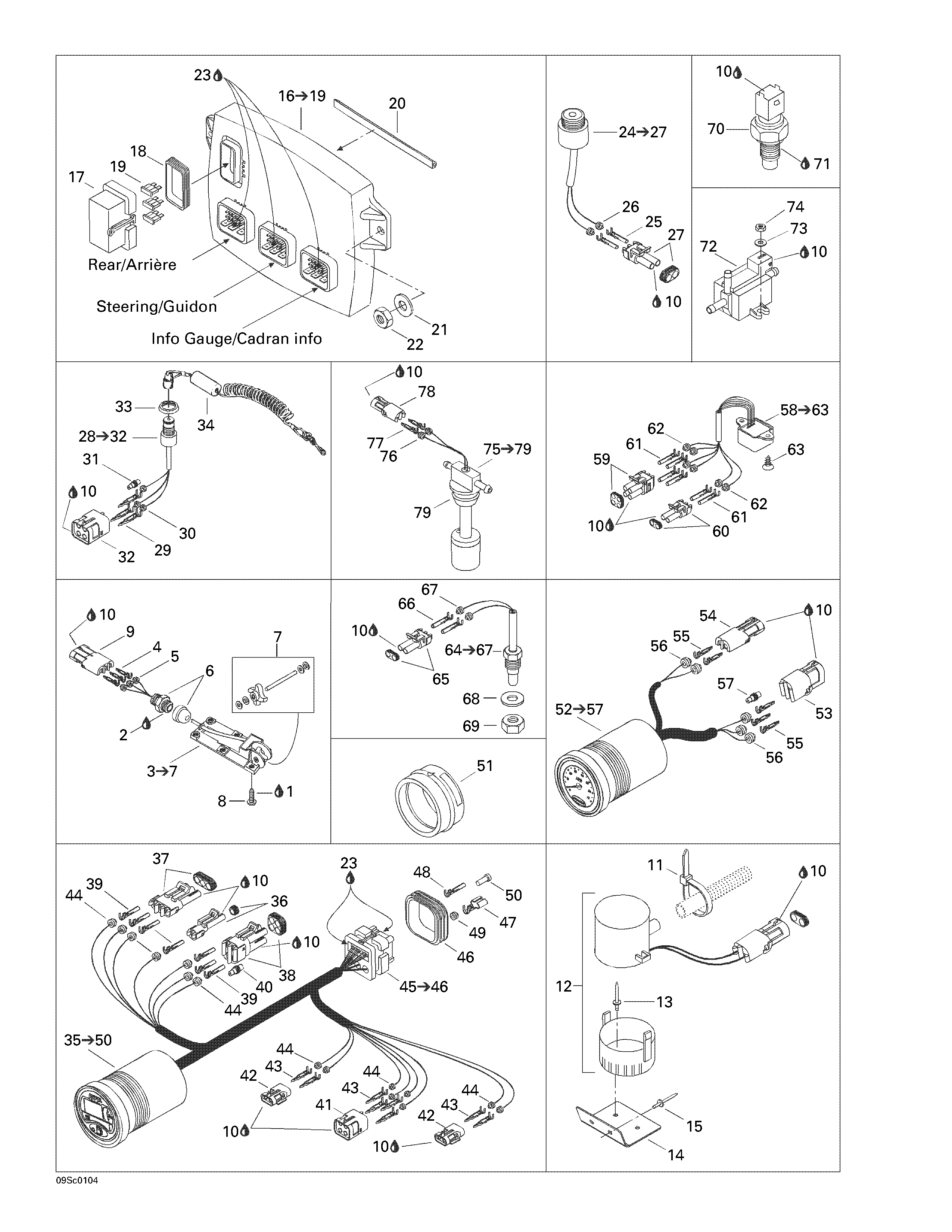

10- Electronic Module And Electrical Accessories для BRP LRV, 5697 - 2001

№

Артикул

Название
1

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
2

293800013 Loctite 56765, Pipe Sealant, 250 ml

Loctite 56765, Pipe Sealant, 250 ml
3

278000849 Speed Sensor. Includes 3 - 7.

Speed Sensor. Includes 3 - 7.
4

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
5

278000218 Wire Seal (16 and 18 Gauge - Green)

Wire Seal (16 and 18 Gauge - Green)
6

293710031 Electrical Connector

Electrical Connector
7

295500108 Paddle Wheel Kit

Paddle Wheel Kit
8

208551060 Screw M5 x 10

Screw M5 x 10
9

278000281 Female Housing (3 Circuits)(Packard)

Female Housing (3 Circuits)(Packard)
10

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
11

293750001 Tie Rap 94 mm

Tie Rap 94 mm
12

204470220 Bilge Pump

Bilge Pump
13

293150029 Pop Rivet 5/32''

Pop Rivet 5/32''
14

204050304 Bilge Pump Support

Bilge Pump Support
15

293150011 Pop Rivet 3/16''

Pop Rivet 3/16''
16

278001398 Electronic Module Ass'y. Includes 16 - 19.

Electronic Module Ass'y. Includes 16 - 19.
17

278001069 Fuse Holder

Fuse Holder
18

278001070 Seal

Seal
19

278000343 Fuse (15 Amperes)

Fuse (15 Amperes)
278000704 Fuse (7.5 Amperes)

Fuse (7.5 Amperes)
278000344 Fuse (5 Amperes)

Fuse (5 Amperes)
278001196 Fuse (3 Amperes)

Fuse (3 Amperes)
20

293200017 Neoprene Seal (Meter)

Neoprene Seal (Meter)
21

234062600 Flat Washer 6 mm

Flat Washer 6 mm
22

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
23

293550015 Deoxit Lubricant, Spray

Deoxit Lubricant, Spray
24

278000978 Buzzer Ass'y. Includes 24 - 27.

Buzzer Ass'y. Includes 24 - 27.
25

278000223 Female Terminal (18 Gauge)

Female Terminal (18 Gauge)
26

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
27

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
28

278000977 Safety Switch. Includes 28 - 32.

Safety Switch. Includes 28 - 32.
29

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
30

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
31

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
32

278000890 Female Housing (4 Circuits)

Female Housing (4 Circuits)
33

278000508 Safety Switch Nut

Safety Switch Nut
34

278001277 Safety Landyard Ass'y

Safety Landyard Ass'y
35

204620176 LCD Info Gauge. Includes 35 - 50.

LCD Info Gauge. Includes 35 - 50.
36

278000219 Male Housing (1 Circuit)(Packard)

Male Housing (1 Circuit)(Packard)
37

278000273 Male Housing (3 Circuits)

Male Housing (3 Circuits)
38

278000891 Male Housing (4 Circuits)(Packard)

Male Housing (4 Circuits)(Packard)
39

278000223 Female Terminal (18 Gauge)(Packard)

Female Terminal (18 Gauge)(Packard)
40

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
41

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
42

278000217 Female Housing (2 Circuits)(Packard)

Female Housing (2 Circuits)(Packard)
43

278000222 Male Terminal (18 Gauge)(Packard)

Male Terminal (18 Gauge)(Packard)
44

278001065 Wire Seal (20 Gauge)(Packard)

Wire Seal (20 Gauge)(Packard)
45

278000993 Male Housing (26 Circuits) (AMP). Includes 45 - 46.

Male Housing (26 Circuits) (AMP). Includes 45 - 46.
46

278001307 Wire Seal (AMP)

Wire Seal (AMP)
47

278000994 Female Terminal(AMP)

Female Terminal(AMP)
48

278000995 Female Terminal(AMP)

Female Terminal(AMP)
49

278000996 Wire Seal(AMP)

Wire Seal(AMP)
50

293000070 Sealing Cap (AMP)

Sealing Cap (AMP)
51

293720047 Gauge Support

Gauge Support
52

278001359 Speedometer. Includes 52 - 57.

Speedometer. Includes 52 - 57.
53

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
54

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
55

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
56

278001065 Wire Seal(Packard)

Wire Seal(Packard)
57

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
58

278001243 Compass. Includes 58 - 63.

Compass. Includes 58 - 63.
59

278000891 Male Housing (4 Circuits)

Male Housing (4 Circuits)
60

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
61

278000223 Female Terminal (18 gauge)

Female Terminal (18 gauge)
62

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
63

293730016 Dart

Dart
64

278000851 Temperature Sensor. Includes 64 - 67.

Temperature Sensor. Includes 64 - 67.
65

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
66

278000223 Female Terminal (18 gauge)

Female Terminal (18 gauge)
67

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
68

234000600 Flat Washer 10 mm

Flat Washer 10 mm
69

250100004 Hex. Nut M10

Hex. Nut M10
70

278001016 Temperature Sensor

Temperature Sensor
71

293800038 Loctite 518, 50 ml

Loctite 518, 50 ml
72

270600005 Solenoid Valve

Solenoid Valve
73

234051600 Flat Washer 5 mm

Flat Washer 5 mm
74

232551600 Elastic Stop Nut M5

Elastic Stop Nut M5
75

278001402 Oil sensor. Includes 75 - 79.

Oil sensor. Includes 75 - 79.
76

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
77

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
78

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
79

293720008 Grommet

Grommet
