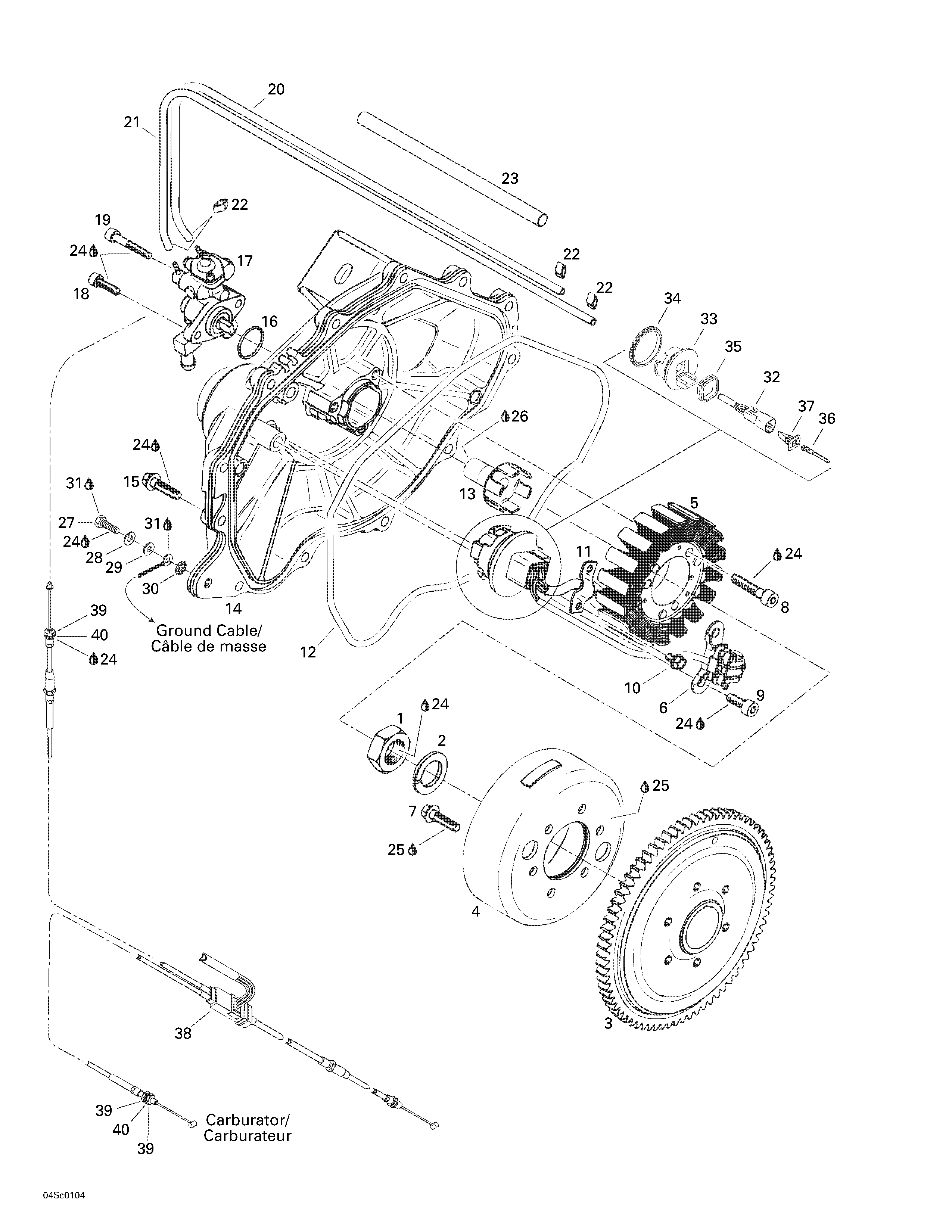

03- Magneto, Oil Pump для BRP LRV, 5697 - 2001
-
№АртикулНазвание
-
1420942220 Hex. Nut M18Hex. Nut M18
-
2290945757 Lock Washer 18 mmLock Washer 18 mm
-
3290966682 Flywheel HubFlywheel Hub
-
4290887945 Magneto FlywheelMagneto Flywheel
-
5290886588 Stator Plate Ass'yStator Plate Ass'y
-
6290965641 Sensor Ass'ySensor Ass'y
-
7290640171 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
8205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
9420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
10207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
11290853080 Retainer PlateRetainer Plate
-
12290931690 O-RingO-Ring
-
13290837390 Oil Pump ShaftOil Pump Shaft
-
14290811066 Ignition CoverIgnition Cover
-
15290240033 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
16293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
17290888690 Oil Pump Ass'yOil Pump Ass'y
-
18205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
19290940888 Socket Head Screw M5 x 30Socket Head Screw M5 x 30
-
20414413800 Hose (Foot)Hose (Foot)
-
21414413800 Hose (Foot)Hose (Foot)
-
22420256408 ClampClamp
-
23290260437 Protector HoseProtector Hose
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
28234161601 Lock Washer 6 mmLock Washer 6 mm
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30234461608 Ext. Tooth Washer 6 mmExt. Tooth Washer 6 mm
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
33270000138 AdaptorAdaptor
-
34293300033 GasketGasket
-
35293200030 GasketGasket
-
36278000631 Male TerminalMale Terminal
-
37278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
38204390207 Throttle CableThrottle Cable
-
39232160600 Hex. Nut M6Hex. Nut M6
-
40234061600 Flat Washer 6 mmFlat Washer 6 mm
-
41290889150 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
42290889155 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
