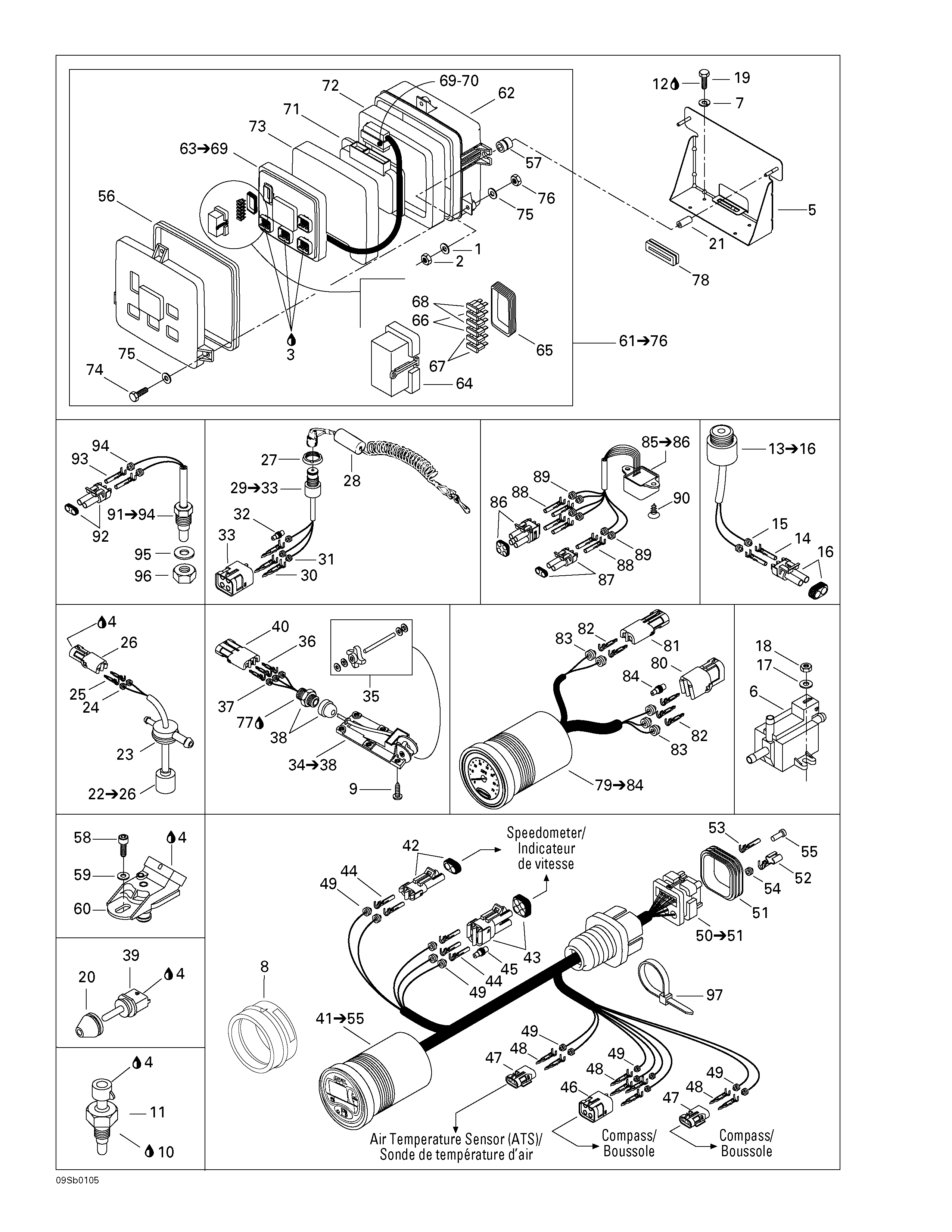

10- Electronic Module And Electrical Accessories для BRP GTX RFI, 5524/5525/5553/5555 - 2001

№

Артикул

Название
1

234062600 Flat Washer 6 mm

Flat Washer 6 mm
2

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
3

293550015 Deoxit Lubricant, Spray

Deoxit Lubricant, Spray
4

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
5

278001139 Box Support Ass'y

Box Support Ass'y
6

270600005 Solenoid Valve

Solenoid Valve
7

234151601 Lock Washer 5 mm

Lock Washer 5 mm
8

293720047 Gauge Support

Gauge Support
9

250000020 Phillips Screw M5 x 10 (Scotch Grip)

Phillips Screw M5 x 10 (Scotch Grip)
10

293800038 Loctite 518, 50 ml

Loctite 518, 50 ml
11

278001016 Temperature Sensor

Temperature Sensor
12

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml
13

278000978 Buzzer Ass'y. Includes 13 - 16.

Buzzer Ass'y. Includes 13 - 16.
14

278000223 Female Terminal

Female Terminal
15

278000218 Wire Seal

Wire Seal
16

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
17

234051600 Flat Washer 5 mm

Flat Washer 5 mm
18

232551600 Elastic Stop Nut M5

Elastic Stop Nut M5
19

211000023 Hex. Screw (Plastite)

Hex. Screw (Plastite)
20

278001054 Insulator

Insulator
21

272000074 Spacer

Spacer
22

278001401 Oil Lever Sensor Ass'y. Includes 22 - 26.

Oil Lever Sensor Ass'y. Includes 22 - 26.
23

293720008 Grommet

Grommet
24

278000218 Wire Seal

Wire Seal
25

278000222 Male Terminal

Male Terminal
26

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
27

278000508 Safety Switch Nut

Safety Switch Nut
28

278001543 Safety Landyard Ass'y

Safety Landyard Ass'y
29

278000977 Safety Switch. Includes 29 - 33.

Safety Switch. Includes 29 - 33.
30

278000222 Male Terminal

Male Terminal
31

278000218 Wire Seal

Wire Seal
32

278000216 Wire Seal (Cap)

Wire Seal (Cap)
33

278000890 Female Housing (4 Circuits)

Female Housing (4 Circuits)
34

278000849 Speed Sensor. Includes 34 - 38.

Speed Sensor. Includes 34 - 38.
35

295500108 Paddle Wheel Kit

Paddle Wheel Kit
36

278000222 Male Terminal

Male Terminal
37

278000218 Wire Seal

Wire Seal
38

293710031 Electrical Connector

Electrical Connector
39

270600000 Air Sensor

Air Sensor
40

278000281 Female Housing (3 Circuits)

Female Housing (3 Circuits)
41

278001541 LCD Info Gauge. Includes 41 - 55.

LCD Info Gauge. Includes 41 - 55.
42

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
43

278000891 Male Housing (4 Circuits)

Male Housing (4 Circuits)
44

278000223 Female Terminal

Female Terminal
45

278000216 Wire Seal

Wire Seal
46

278000890 Female Housing (4 Circuits)

Female Housing (4 Circuits)
47

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
48

278000222 Male Terminal

Male Terminal
49

278001065 Wire Seal

Wire Seal
50

278000993 Male Housing (26 Circuits). Includes 50 - 51.

Male Housing (26 Circuits). Includes 50 - 51.
51

278001307 Wire Seal

Wire Seal
52

278000994 Female Terminal

Female Terminal
53

278000995 Female Terminal

Female Terminal
54

278000996 Wire Seal(AMP)

Wire Seal(AMP)
55

293000070 Sealing Cap

Sealing Cap
56

293250063 Gasket

Gasket
57

278001260 Insulator

Insulator
58

205561260 Socket Head Screw M6 x 12 (Scotch Grip)

Socket Head Screw M6 x 12 (Scotch Grip)
59

234061600 Flat Washer 6 mm

Flat Washer 6 mm
60

270600040 Pressure Sensor

Pressure Sensor
62

278000938 Electronic Box Base

Electronic Box Base
63

278001529 Electronic Module. Includes 63 - 69.

Electronic Module. Includes 63 - 69.
64

278001069 Fuse Holder Cover

Fuse Holder Cover
65

278001070 Cover Seal

Cover Seal
66

278000344 Fuse (5 Amperes)

Fuse (5 Amperes)
67

278001197 Fuse (10 Amperes)

Fuse (10 Amperes)
68

278000343 Fuse (15 Amperes)

Fuse (15 Amperes)
69

278000998 Female Terminal

Female Terminal
70

278000999 Wire Seal

Wire Seal
71

278001530 Electronic Module

Electronic Module
72

278000941 Lower Foam

Lower Foam
73

278001100 Top Foam

Top Foam
74

207063060 Hex. Screw M6 x 30

Hex. Screw M6 x 30
75

234062600 Flat Washer 6 mm

Flat Washer 6 mm
76

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
77

293800013 Loctite 56765, Pipe Sealant, 250 ml

Loctite 56765, Pipe Sealant, 250 ml
78

278001259 Insulator

Insulator
79

278001435 Speedometer Ass'y. Includes 79 - 84.

Speedometer Ass'y. Includes 79 - 84.
80

278000890 Female Housing (4 Circuits)

Female Housing (4 Circuits)
81

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
82

278000222 Male Terminal

Male Terminal
83

278001065 Wire Seal

Wire Seal
84

278000216 Wire Seal

Wire Seal
85

278001243 Compass. Includes 85 - 86.

Compass. Includes 85 - 86.
86

278000891 Male Housing (4 Circuits)

Male Housing (4 Circuits)
87

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
88

278000223 Female Terminal

Female Terminal
89

278000218 Wire Seal

Wire Seal
90

293730016 Dart (Black)

Dart (Black)
91

278000851 Temperature Sensor. Includes 91 - 94.

Temperature Sensor. Includes 91 - 94.
92

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
93

278000223 Female Terminal

Female Terminal
94

278000218 Wire Seal

Wire Seal
95

234000600 Flat Washer 10 mm

Flat Washer 10 mm
96

250100004 Hex. Nut M10 (Plastic)

Hex. Nut M10 (Plastic)
97

414115200 Tie Rap

Tie Rap
