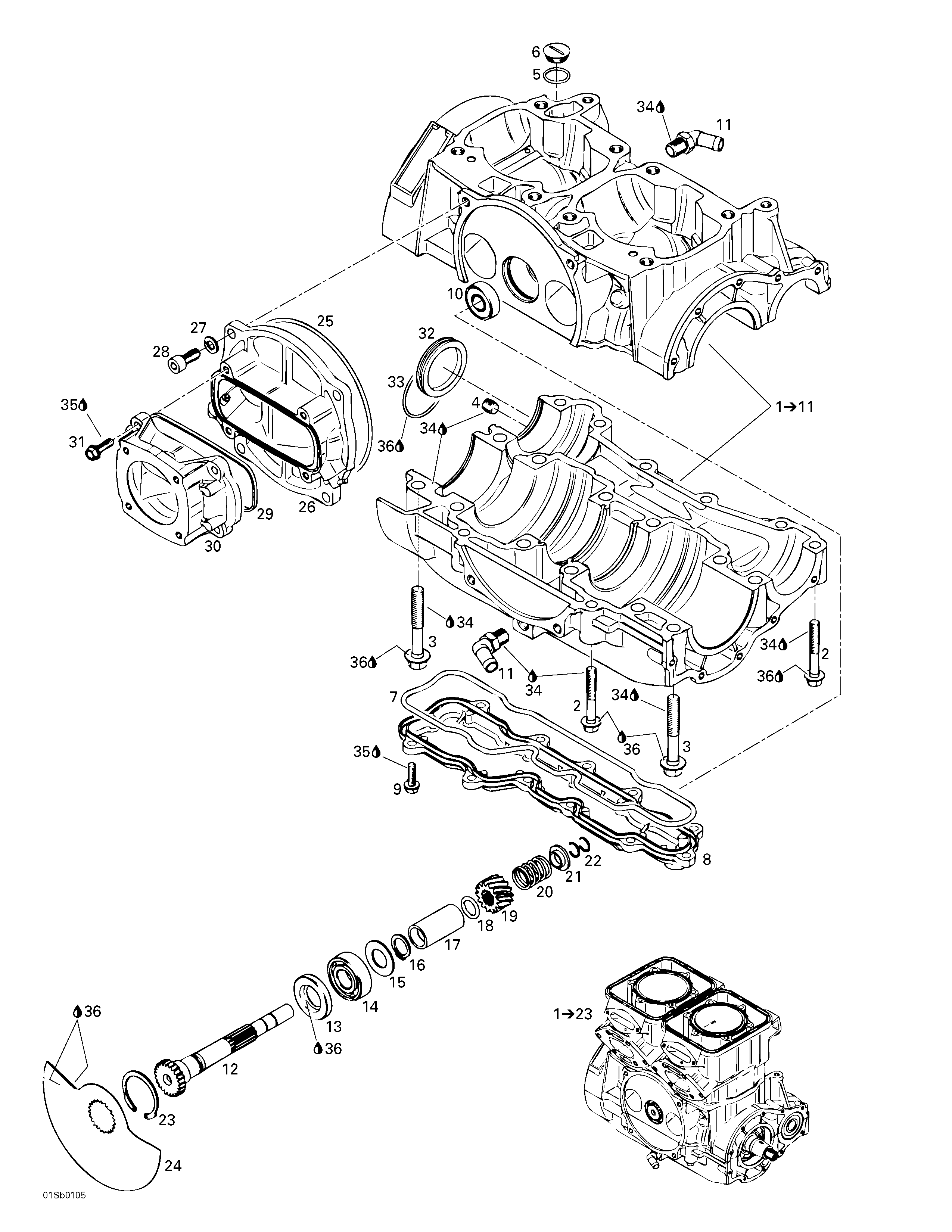

01- Crankcase And Rotary Valve для BRP GTX RFI, 5524/5525/5553/5555 - 2001
-
№АртикулНазвание
-
1290078703 Short Block > Ass'y. Includes 1 - 23.Short Block > Ass'y. Includes 1 - 23.
-
1290888223 Crankcase Ass'y > (Silver). Includes 1 - 11.Crankcase Ass'y > (Silver). Includes 1 - 11.
-
2290240328 Hex. Flanged Screw M8 x 55Hex. Flanged Screw M8 x 55
-
3290941333 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
4290240483 Drain Plug 1/8''Drain Plug 1/8''
-
5290250890 O-RingO-Ring
-
6290241801 Drain Plug M18Drain Plug M18
-
7420950360 O-RingO-Ring
-
8290811236 Waterchannel CoverWaterchannel Cover
-
9290941253 Taptite Screw M6 x 20Taptite Screw M6 x 20
-
10420932797 Ball Bearing >Ball Bearing >
-
11420922245 Hose Nipples 90 DegHose Nipples 90 Deg
-
12290837352 Rotary Valve ShaftRotary Valve Shaft
-
13420930580 Oil SealOil Seal
-
14405406400 Ball Bearing >Ball Bearing >
-
15420227439 ShimShim
-
16420845450 Snap RingSnap Ring
-
17290847287 Distance SleeveDistance Sleeve
-
18293300024 O-RingO-Ring
-
19420935735 Sprocket 14 TeethSprocket 14 Teeth
-
20420938810 SpringSpring
-
21420827430 Spring SeatSpring Seat
-
22420845160 CirclipCirclip
-
23420845260 Snap RingSnap Ring
-
24420924502 Rotary Valve (159 Deg.)Rotary Valve (159 Deg.)
-
25290831767 O-RingO-Ring
-
26290811036 Rotary Valve CoverRotary Valve Cover
-
27234180602 Lock Washer 8 mmLock Washer 8 mm
-
28205082060 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
29420850520 Rubber RingRubber Ring
-
30290867821 Intake ManifoldIntake Manifold
-
31290841543 Taptite Screw M6 x 25Taptite Screw M6 x 25
-
32290810745 Bearing CoverBearing Cover
-
33290230300 O-RingO-Ring
-
34293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
35293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
36413707000 Molykote 111Molykote 111
-
37290886392 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
38290886396 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
