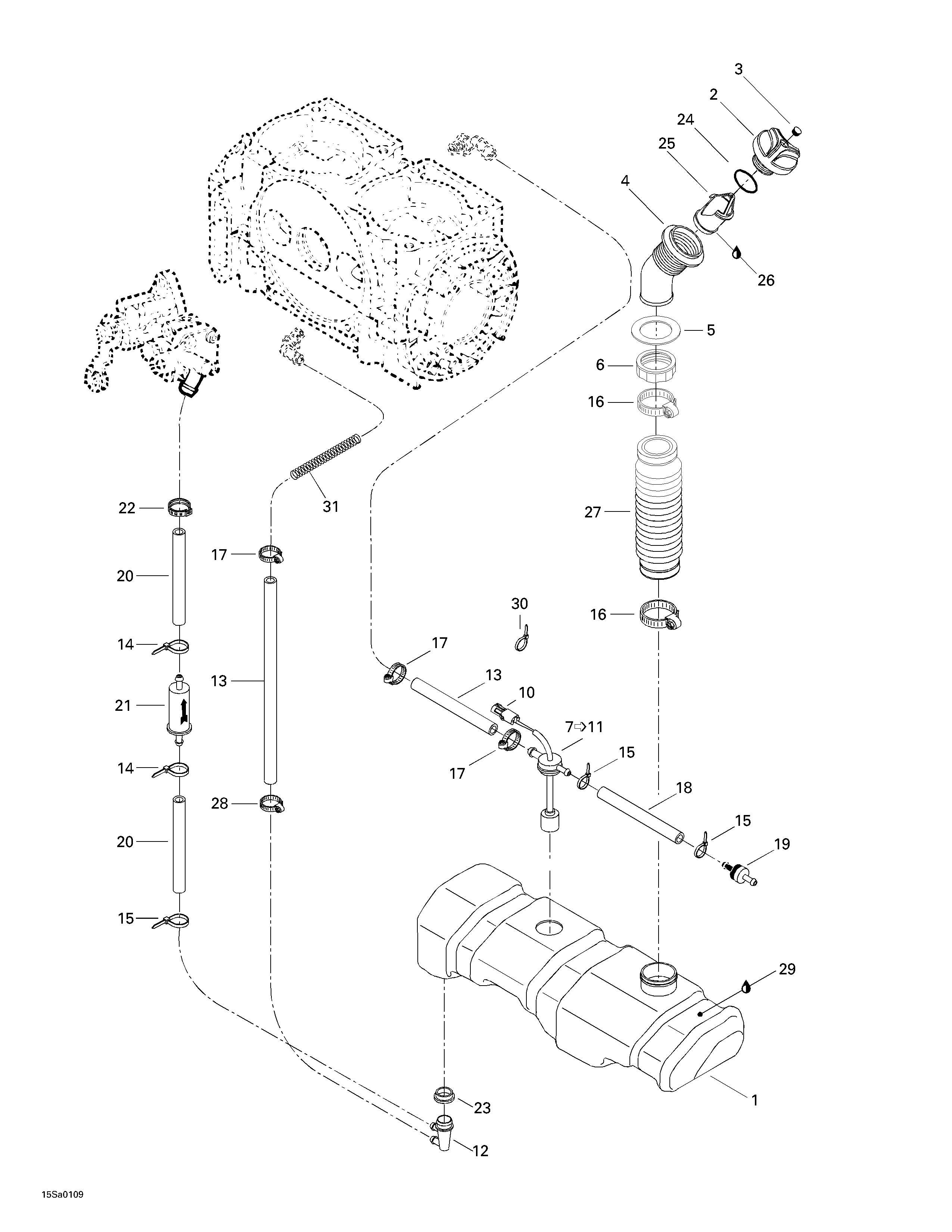

02- Oil Injection System для BRP GS, 5518/5519 - 2001
-
№АртикулНазвание
-
1275000238 Oil TankOil Tank
-
2275000236 Oil Cap Ass'y. Includes 2 - 3.Oil Cap Ass'y. Includes 2 - 3.
-
3293000091 Snap CapSnap Cap
-
4275000187 Filler NeckFiller Neck
-
5293250029 GasketGasket
-
6211100012 Nut-Neck Oil FillerNut-Neck Oil Filler
-
7278001401 Oil Level Sensor Ass'y. Includes 7 - 11.Oil Level Sensor Ass'y. Includes 7 - 11.
-
8278000218 Wire Seal (16,18 gauge) (Not Shown)Wire Seal (16,18 gauge) (Not Shown)
-
9278000222 MaleTerminal(18gauge)(NotShown)MaleTerminal(18gauge)(NotShown)
-
10278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
11293720008 Grommet (Not Shown)Grommet (Not Shown)
-
12293710051 Fitting Elbow 90 DegFitting Elbow 90 Deg
-
13275000008 Hose 12mm (meter)Hose 12mm (meter)
-
14293750001 Tie Rap 94 mmTie Rap 94 mm
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16293650035 Tridon ClampTridon Clamp
-
17293650038 Tridon ClampTridon Clamp
-
18275500139 Hose 6mm (meter)Hose 6mm (meter)
-
19275500398 Check ValveCheck Valve
-
20275000007 Hose 8mm (meter)Hose 8mm (meter)
-
21275000051 Oil FilterOil Filter
-
22293650042 Oetiker ClampOetiker Clamp
-
23293720008 GrommetGrommet
-
24293250075 O RingO Ring
-
25275000190 RestrictorRestrictor
-
26293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
27275000188 Filler HoseFiller Hose
-
28293650084 Clamp (Norma)Clamp (Norma)
-
29413803200 Injection Oil, 205 LInjection Oil, 205 L
-
30293750001 Tie Rap 94 mmTie Rap 94 mm
-
31270000521 SpringSpring
