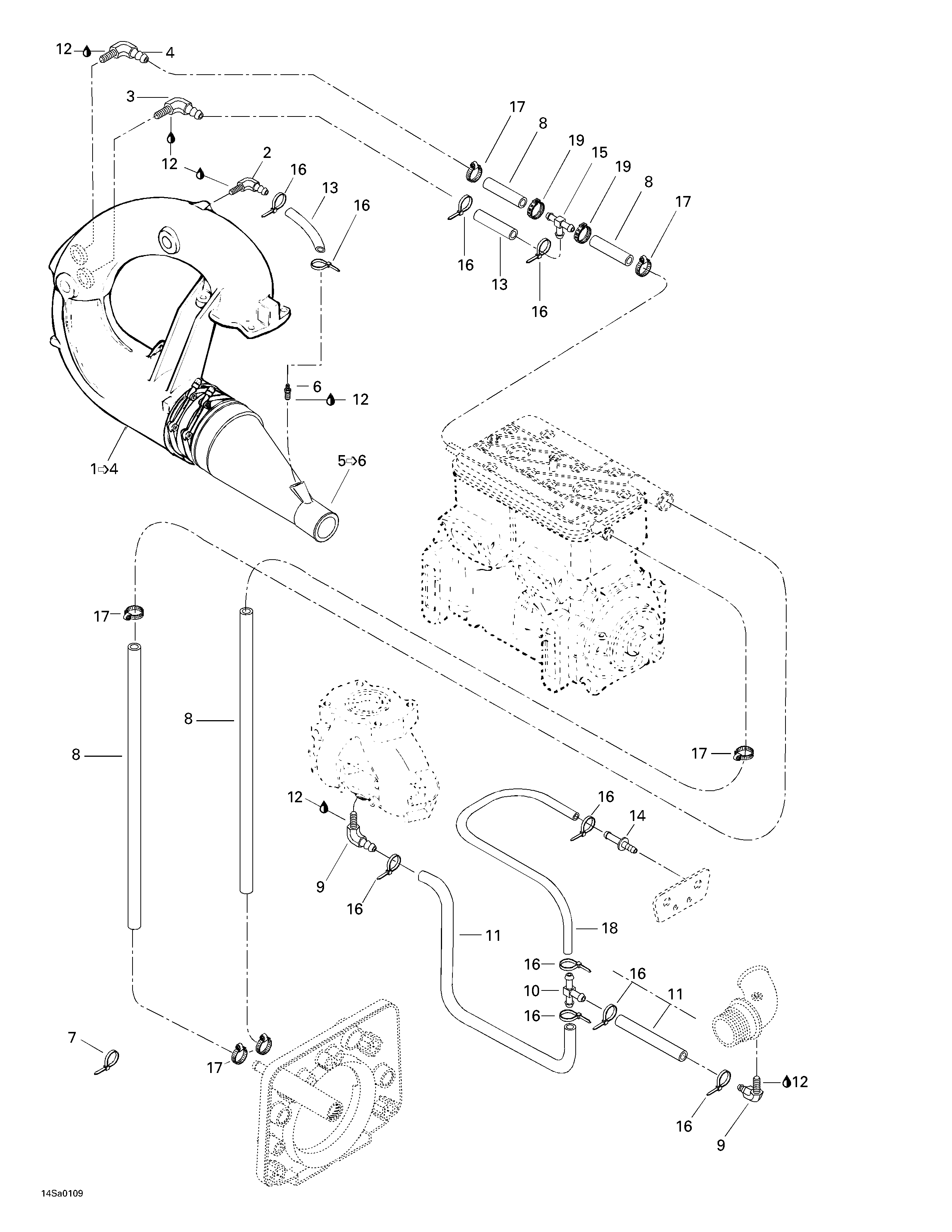

01- Cooling System для BRP GS, 5518/5519 - 2001

  • №
    Артикул
    Название
  • 1
    274000925 Tuned Pipe Ass'y. Includes 1 - 4.
    Tuned Pipe Ass'y. Includes 1 - 4.
  • 2
    293710018 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 3
    293710048 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 4
    293700023 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 5
    274000488 Exhaust Cone Ass'y. Includes 5 - 6.
    Exhaust Cone Ass'y. Includes 5 - 6.
  • 6
    293710037 Male Connector
    Male Connector
  • 7
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 8
    276000001 Hose 12.5 mm (Meter)
    Hose 12.5 mm (Meter)
  • 9
    293700016 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 10
    293710042 > Fitting
    > Fitting
  • 11
    275000007 Hose 8 mm (Meter)
    Hose 8 mm (Meter)
  • 12
    293800013 Loctite56765,PipeSealant,250ml
    Loctite56765,PipeSealant,250ml
  • 13
    276000048 Hose 6 mm (Meter)
    Hose 6 mm (Meter)
  • 14
    291000306 Bleed Fitting
    Bleed Fitting
  • 15
    293710052 > Fitting
    > Fitting
  • 16
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 17
    293650037 Tridon Clamp
    Tridon Clamp
  • 18
    276000048 Hose 6 mm (Meter)
    Hose 6 mm (Meter)
  • 19
    293650012 Oetiker Clamp
    Oetiker Clamp
