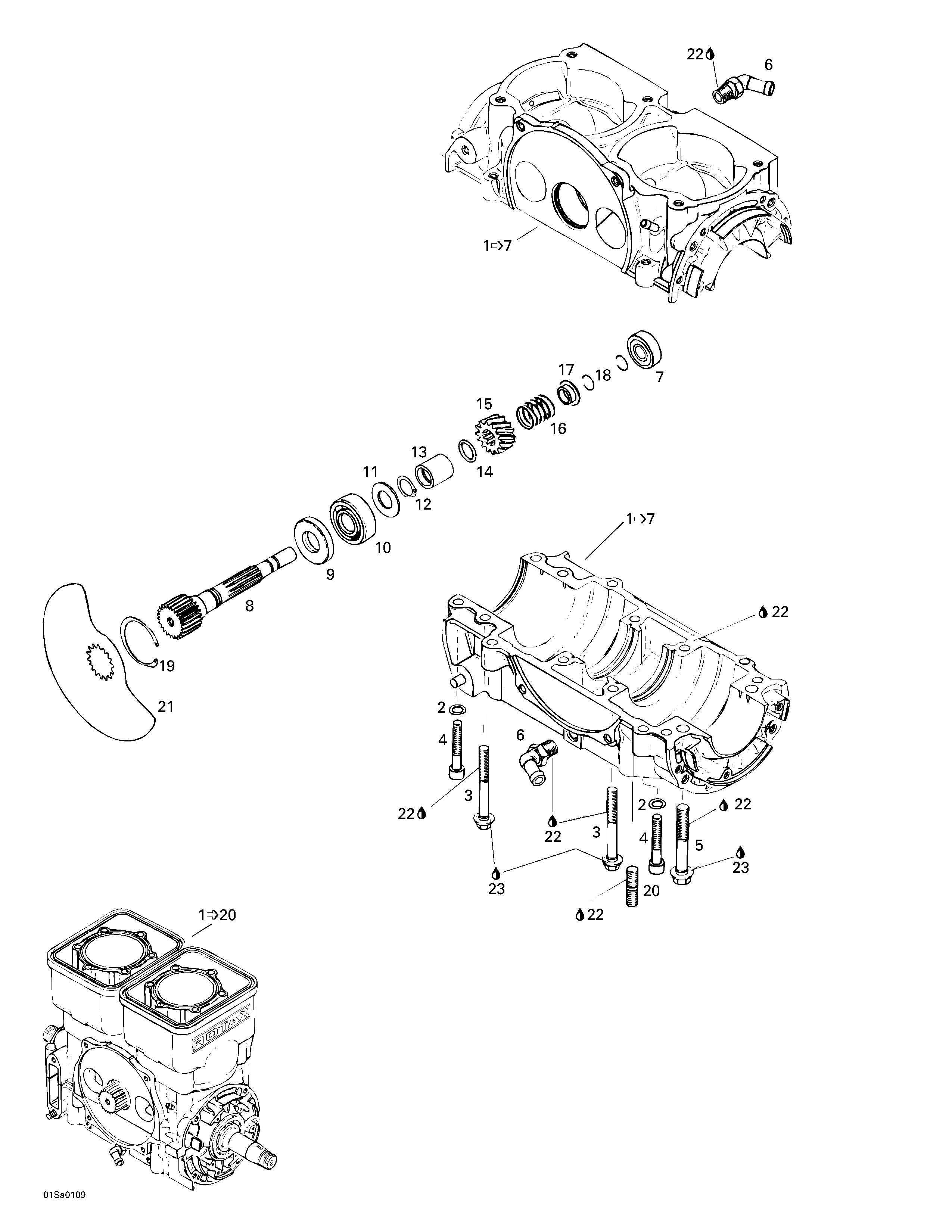

01- Crankcase, Rotary Valve для BRP GS, 5518/5519 - 2001
-
№АртикулНазвание
-
1290071703 Short Block Ass'y. Includes 1 - 20.Short Block Ass'y. Includes 1 - 20.
-
1290887199 Crankcase Ass'y > (Silver). Includes 1 - 7.Crankcase Ass'y > (Silver). Includes 1 - 7.
-
2234180602 Lock Washer 8 mmLock Washer 8 mm
-
3290841998 Flanged Screw M8 x 68,5Flanged Screw M8 x 68,5
-
4205084560 Allen Screw M8 x 45Allen Screw M8 x 45
-
5290941333 Flanged Screw M10 x 73,5Flanged Screw M10 x 73,5
-
6420922245 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
7420932797 Ball Bearing 6201Ball Bearing 6201
-
8290837252 Rotary Valve ShaftRotary Valve Shaft
-
9420930580 Oil SealOil Seal
-
10405406400 Ball Bearing 6203Ball Bearing 6203
-
11420227439 ShimShim
-
12420845450 Lock RingLock Ring
-
13420847282 Spacer BushingSpacer Bushing
-
14293300024 O-RingO-Ring
-
15420935735 Sprocket 14 TeethSprocket 14 Teeth
-
16420938810 SpringSpring
-
17420827430 Spring SeatSpring Seat
-
18420845160 CirclipCirclip
-
19420845260 Lock RingLock Ring
-
20290940798 Stud M10 x 25 (PTO Side)Stud M10 x 25 (PTO Side)
-
420840290 Stud M10 x 10Stud M10 x 10
-
21420924502 Rotary Valve (159 Deg.)Rotary Valve (159 Deg.)
-
22293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
23413707000 Molykote 111Molykote 111
-
24290886317 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
