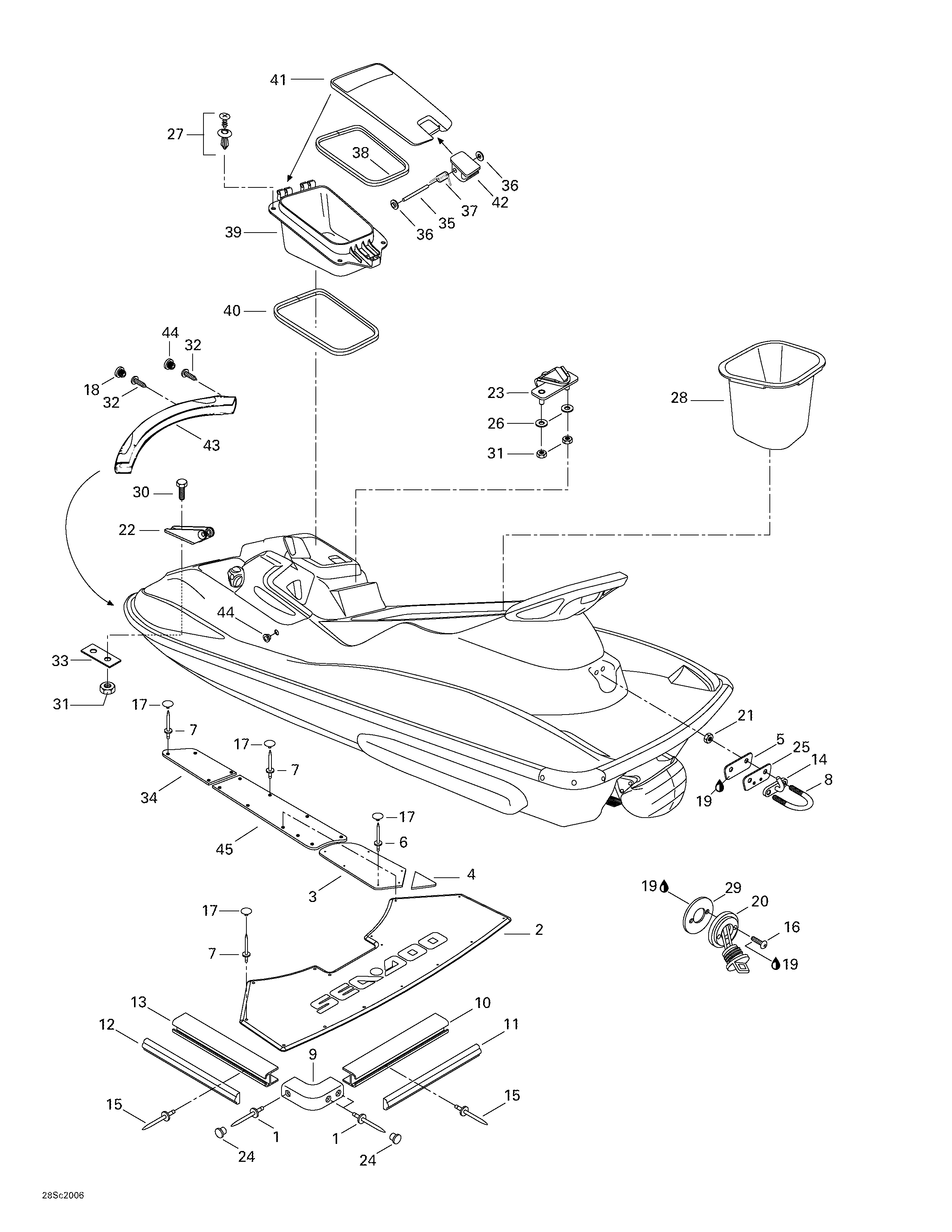

09- Body, Rear View для BRP GTX, 5653/5669/5544/5545 - 2000

  • №
    Артикул
    Название
  • 1
    293150013 Pop Rivet 3/16
    Pop Rivet 3/16
  • 2
    291001053 Center Rear Carpet (Black)
    Center Rear Carpet (Black)
  • 3
    291001051 R.H. Lateral Carpet (Black)
    R.H. Lateral Carpet (Black)
  • 291001052 LH Lateral Carpet (Black)
    LH Lateral Carpet (Black)
  • 4
    291001252 R.H. Anti-Skid Carpet. GTX 5653/5669 (RED).
    R.H. Anti-Skid Carpet. GTX 5653/5669 (RED).
  • 291001253 LH Anti-Skid Carpet. GTX 5653/5669 (RED).
    LH Anti-Skid Carpet. GTX 5653/5669 (RED).
  • 291000935 R.H. Anti-Skid Carpet. GTX 5544/5545 (BLUE).
    R.H. Anti-Skid Carpet. GTX 5544/5545 (BLUE).
  • 291000936 LH Anti-Skid Carpet. GTX 5544/5545 (BLUE).
    LH Anti-Skid Carpet. GTX 5544/5545 (BLUE).
  • 5
    291000307 Retainer Plate
    Retainer Plate
  • 6
    293150016 Pop Rivet 1/8
    Pop Rivet 1/8
  • 7
    293150036 Pop Rivet 1/8
    Pop Rivet 1/8
  • 8
    292000011 U Clamp
    U Clamp
  • 9
    291001505 Bumper Corner (Black)
    Bumper Corner (Black)
  • 10
    291001226 Rear Bumper (Black)
    Rear Bumper (Black)
  • 11
    291001227 Rear Bumper Trim (Black)
    Rear Bumper Trim (Black)
  • 12
    291001225 Side Bumper Trim (Black)
    Side Bumper Trim (Black)
  • 13
    291001224 Side Bumper (Black)
    Side Bumper (Black)
  • 14
    291001232 Ski Hook
    Ski Hook
  • 15
    293150005 Pop Rivet 3/16
    Pop Rivet 3/16
  • 16
    211000021 Phillips Screw
    Phillips Screw
  • 17
    293000014 Shap Cap (Black)
    Shap Cap (Black)
  • 18
    291001040 Bumper Plug (Black)
    Bumper Plug (Black)
  • 19
    296000309 SiliconeSealant,AdchemClear4511
    SiliconeSealant,AdchemClear4511
  • 20
    292000187 Drain Plug
    Drain Plug
  • 21
    232581650 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 22
    291000855 Spring Support (Strorage Cover)
    Spring Support (Strorage Cover)
  • 23
    291001479 Seat Hook
    Seat Hook
  • 24
    291000339 Bumper Plug (Black)
    Bumper Plug (Black)
  • 25
    291000768 Finition Plate (Black)
    Finition Plate (Black)
  • 26
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 27
    211000088 Screw Lock
    Screw Lock
  • 28
    269500270 Rear Tray (Seat)
    Rear Tray (Seat)
  • 29
    293250030 Gasket
    Gasket
  • 30
    207162560 Hex. Screw M6 x 25
    Hex. Screw M6 x 25
  • 31
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 32
    211000037 Phillips Screw (Plastite)
    Phillips Screw (Plastite)
  • 33
    291000079 Plate Reinforcement
    Plate Reinforcement
  • 34
    291001032 R.H. Front Carpet
    R.H. Front Carpet
  • 291001033 LH Front Carpet
    LH Front Carpet
  • 35
    211400008 Pin
    Pin
  • 36
    211100002 Nut Push
    Nut Push
  • 37
    291000922 Spring Latch
    Spring Latch
  • 38
    293250060 Gasket
    Gasket
  • 39
    269500439 Box Gloves
    Box Gloves
  • 40
    293250061 Gasket
    Gasket
  • 41
    269500753 Door-Box Gloves
    Door-Box Gloves
  • 42
    269500553 Latch
    Latch
  • 43
    291001035 Nose Bumper (Black)
    Nose Bumper (Black)
  • 44
    293000089 Cap
    Cap
  • 45
    291001030 R.H. Center Carpet
    R.H. Center Carpet
  • 291001031 LH Center Carpet
    LH Center Carpet
  • 46
    291000339 Bumper Plug (Black)
    Bumper Plug (Black)
